EufyMake E1 UV Printer Fume Control Enclosure

See it in action

Four walkthroughs.

01 Large size walkthrough

02 Standard size walkthrough

03 Window exhaust kit

04 Connect any air purifier

eufyMake E1 UV Printer Fume Control Enclosure

The E1's stock doors fold open for the full-size flatbed, the rotary, and UV DTF roll-to-film — the modes most owners bought the machine for. With the doors open, the printer's UV shielding and its built-in carbon filter are out of the path. The E1 also runs its own cleaning routines several times over whether or not you're using it, and the cleaning fluid carries a sharp chemical smell that goes straight into the room.

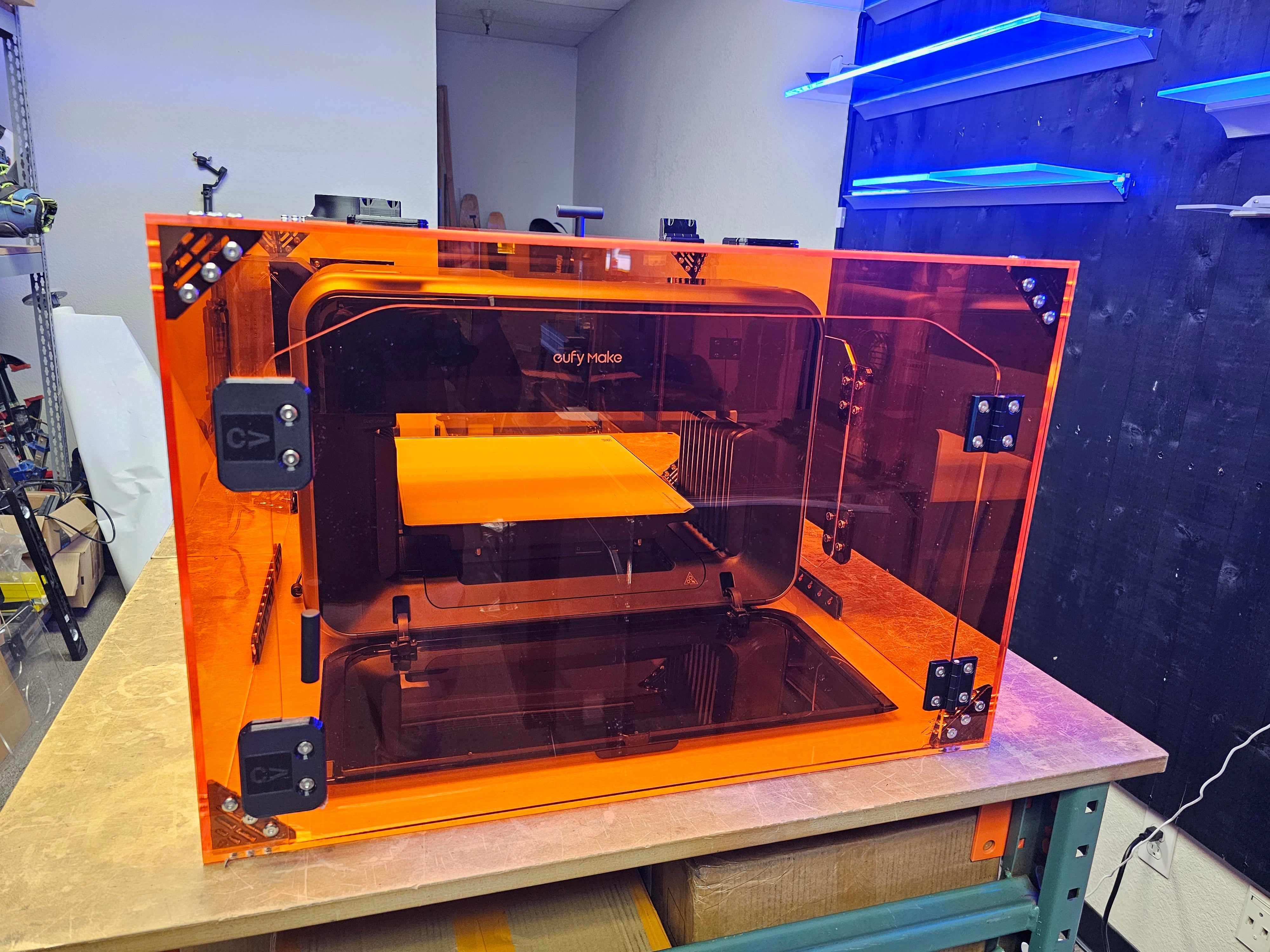

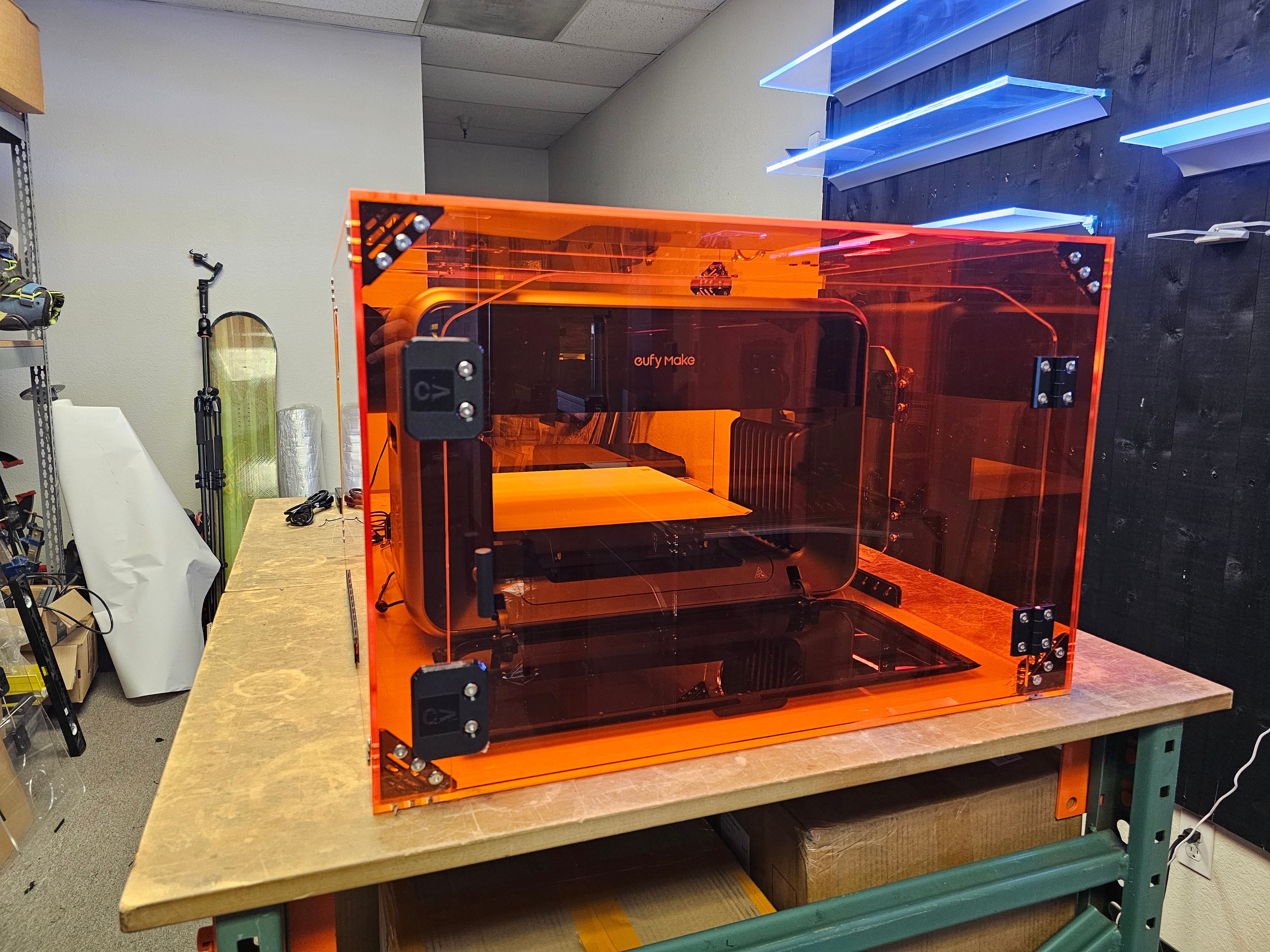

This is an enclosure designed to contain those fumes, with optional filters to absorb them or ducting to carry them out of the room. It sets over the printer — no fabrication, no drilling, no modification to the machine.

What's on it

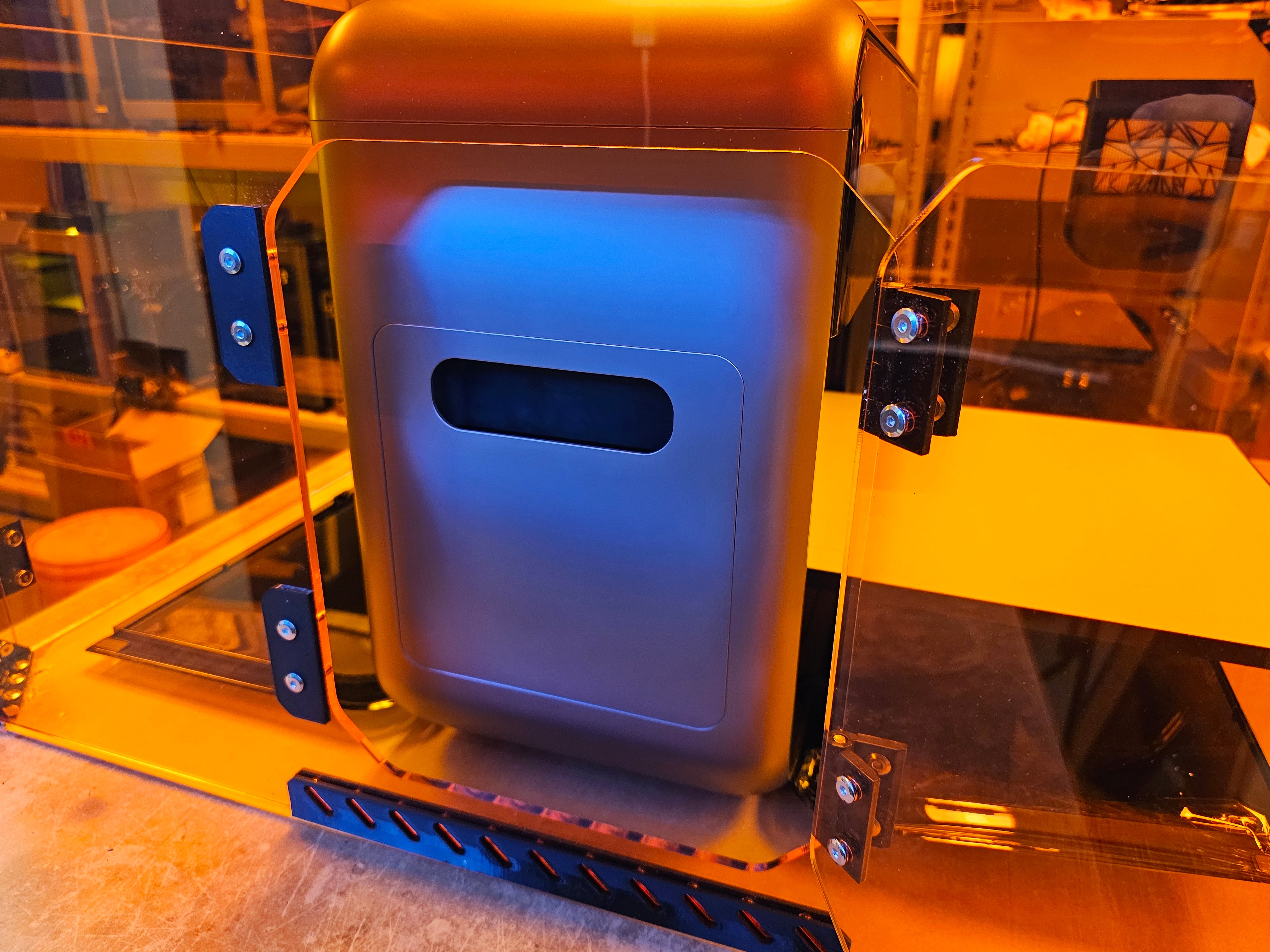

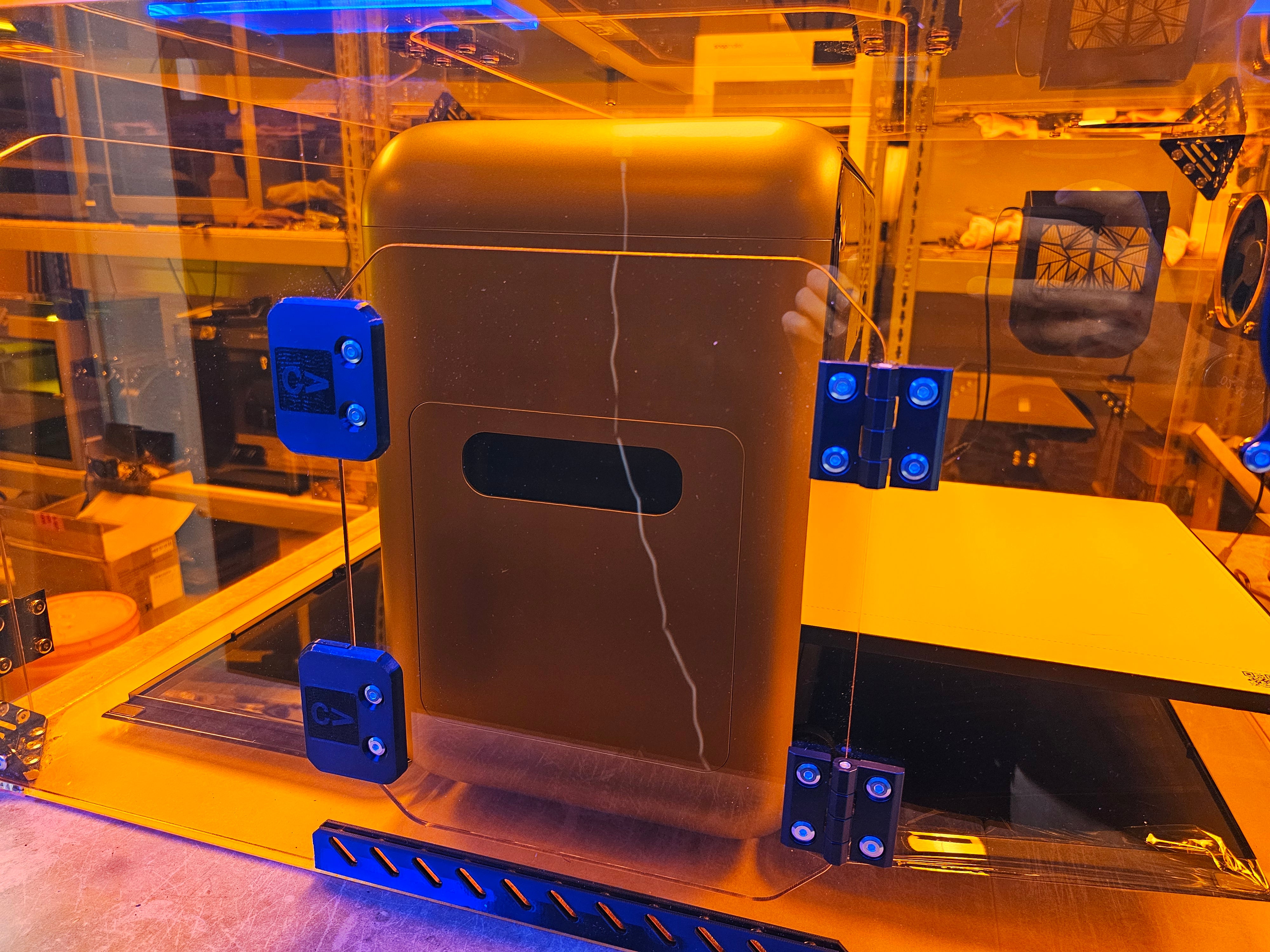

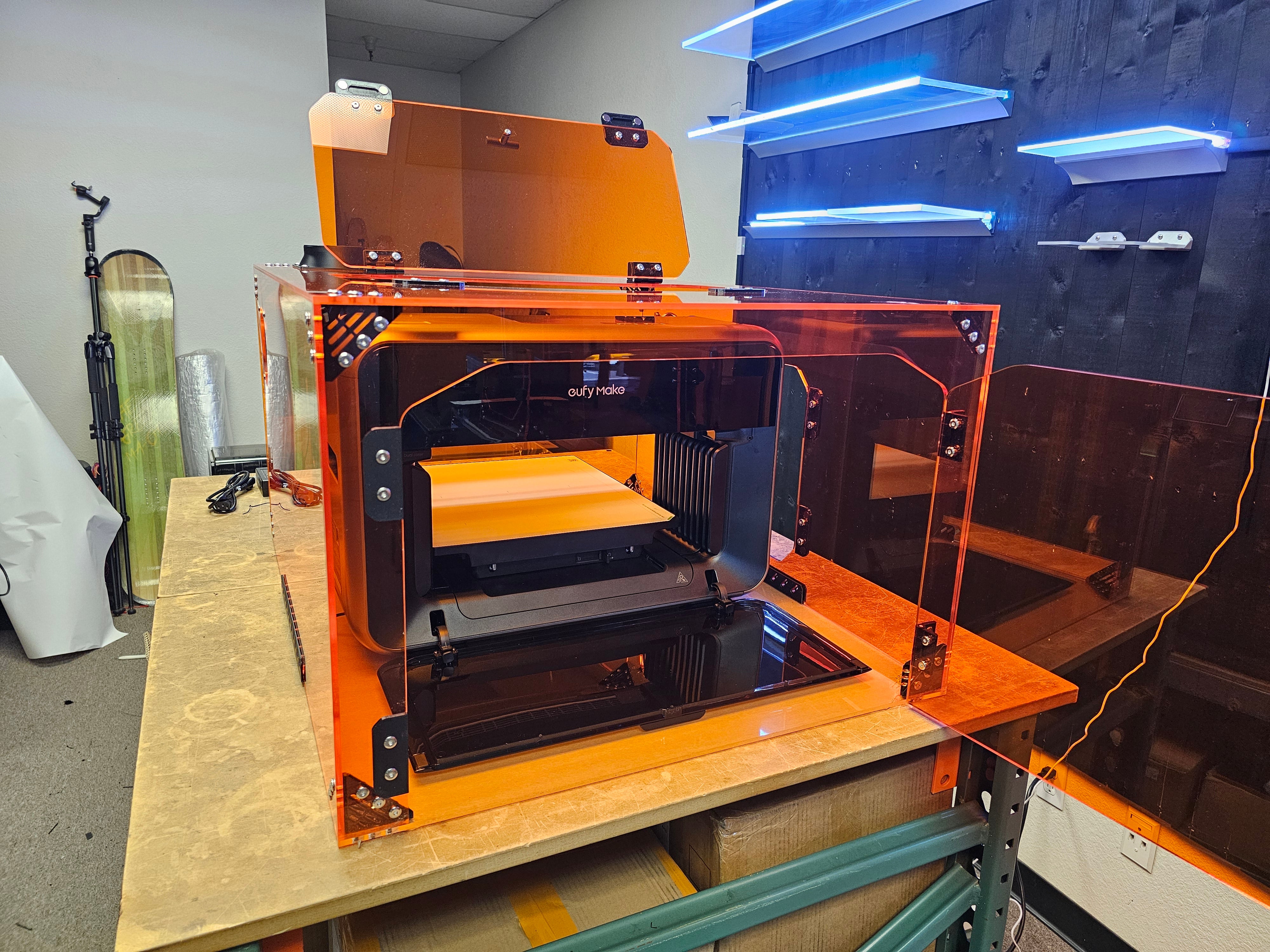

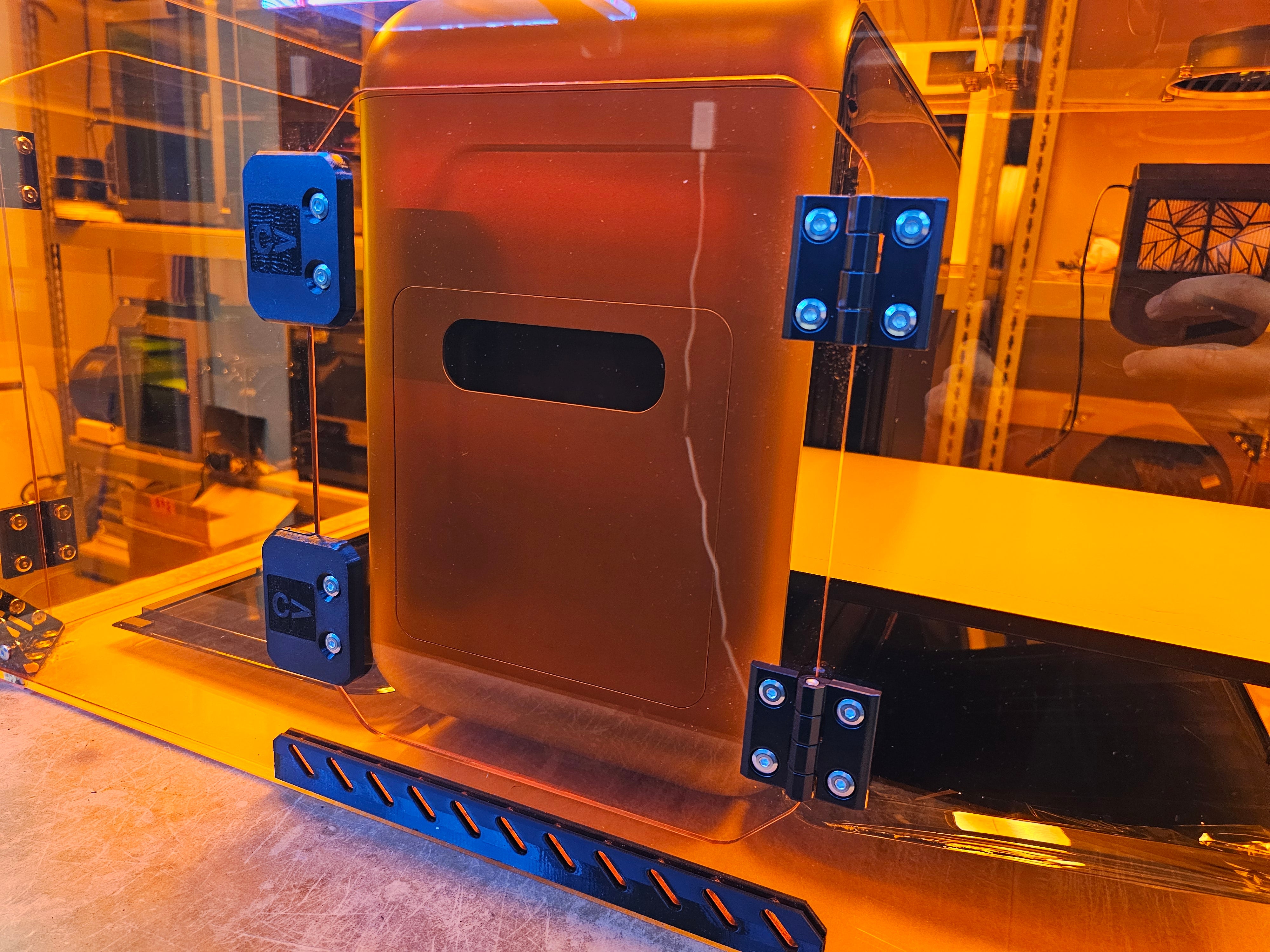

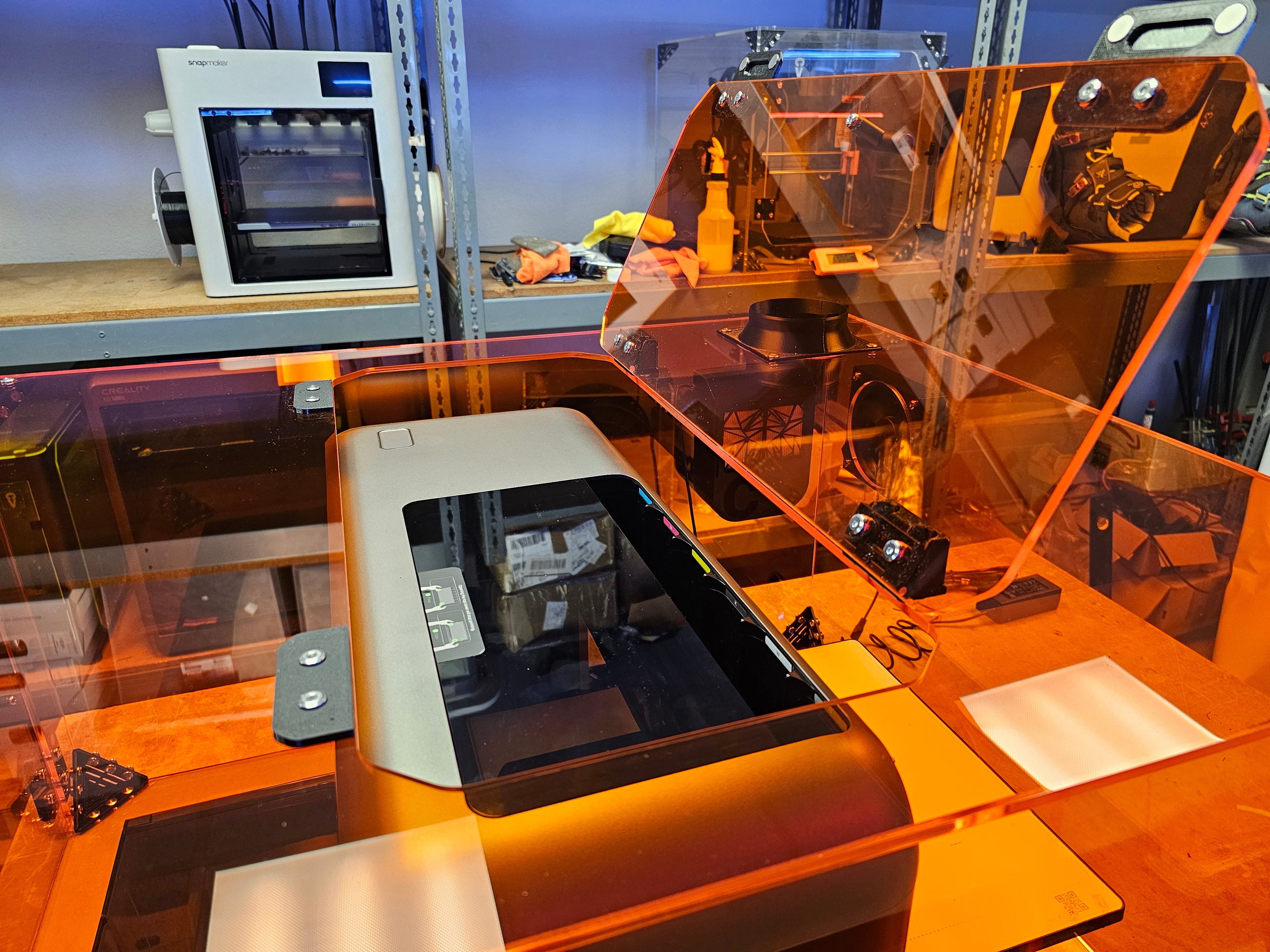

• Tailor-fit design with front, side, and top access doors, giving you easy access to the critical parts of the printer.

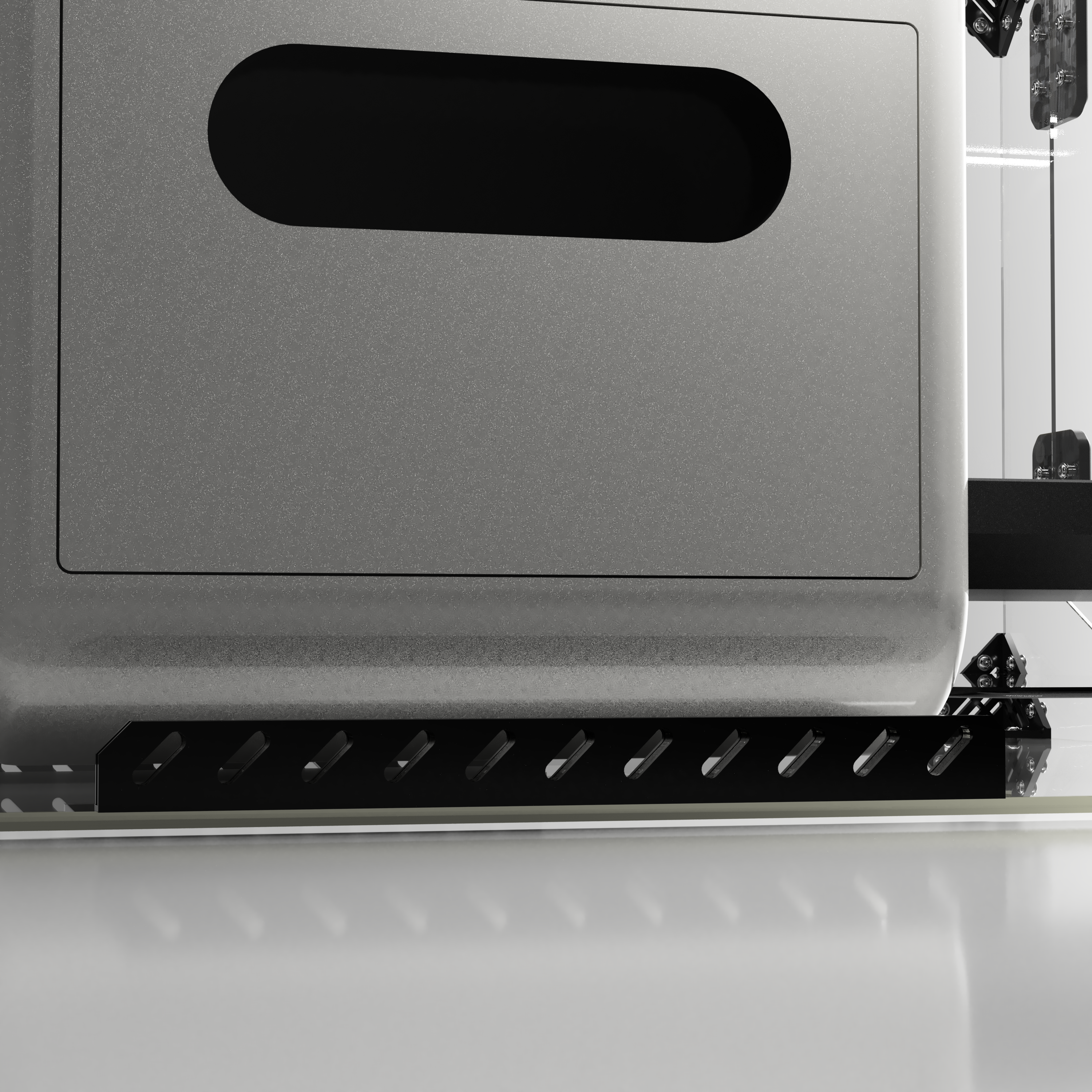

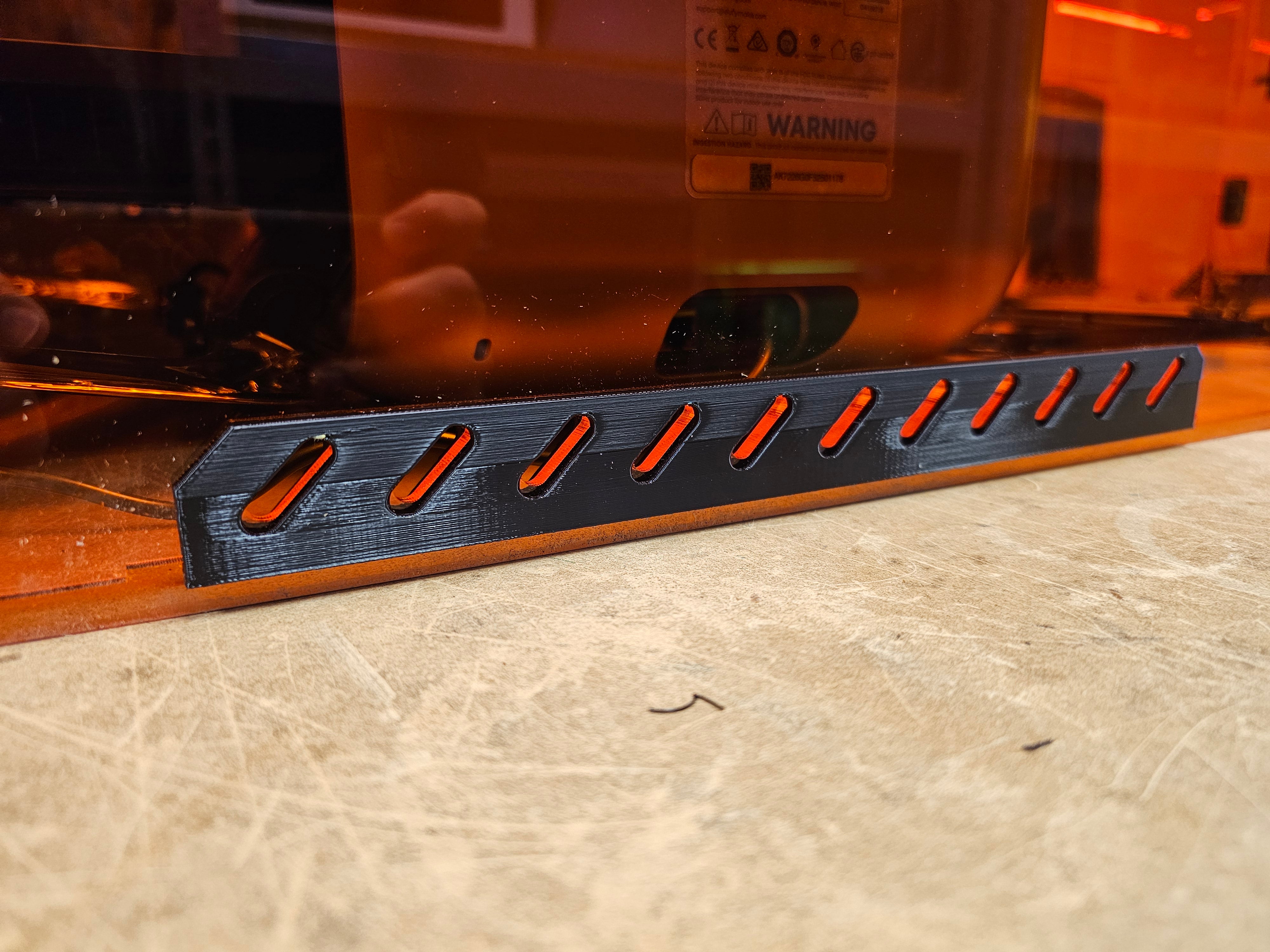

• Sliding air inlet covers you can open and close to let air ventilate the enclosure when you're running an exhaust.

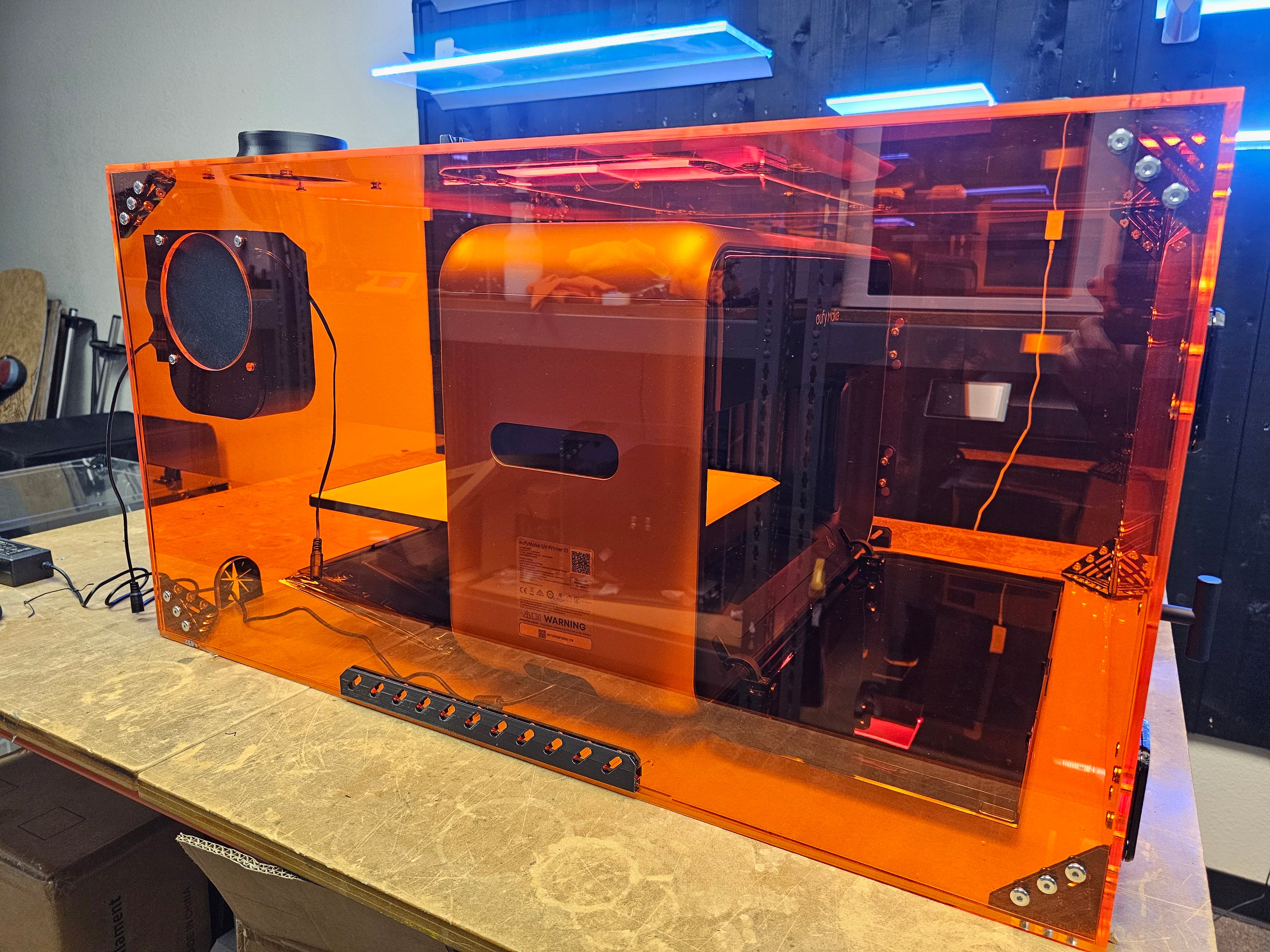

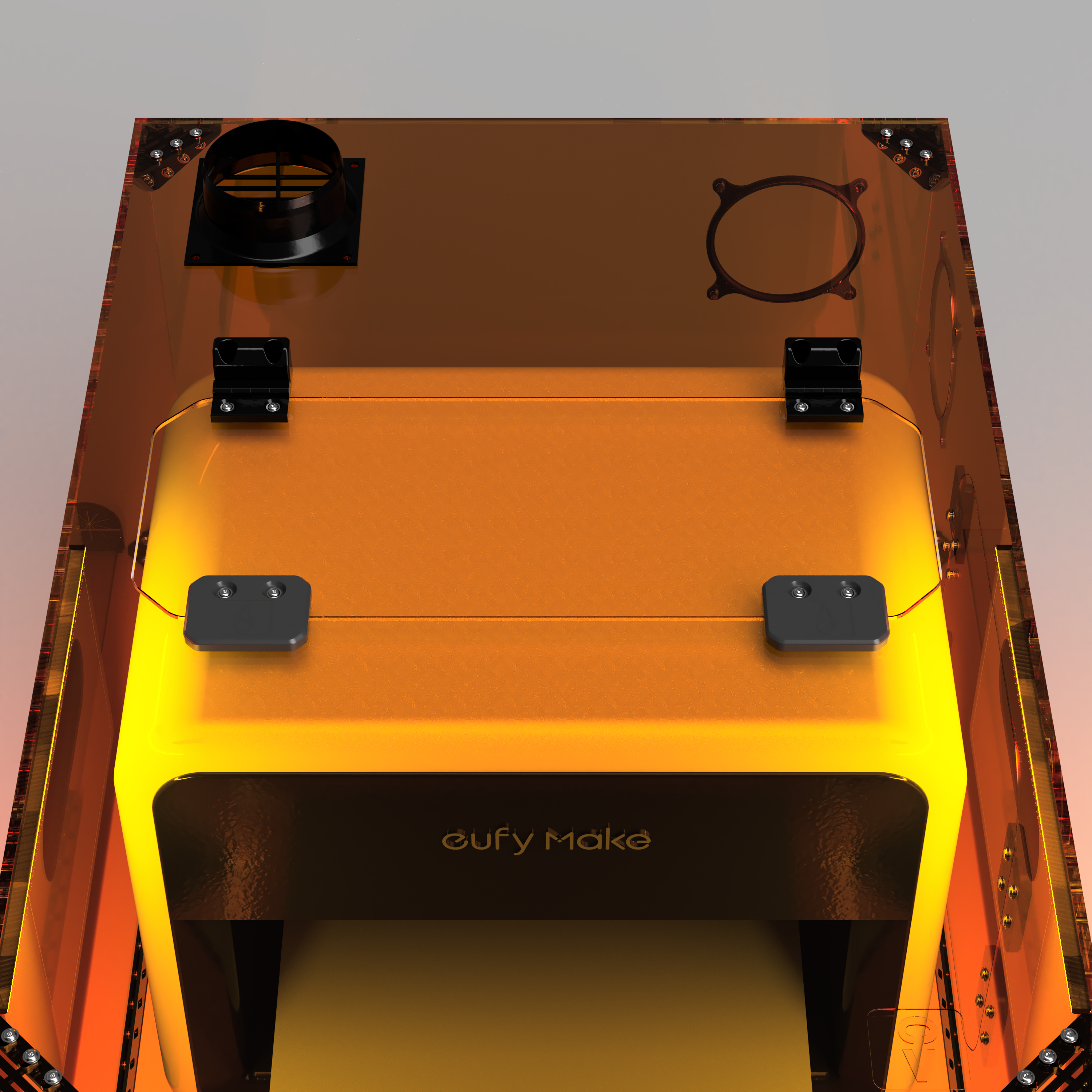

• Multiple exhaust port locations, with covers included for any port you don't use.

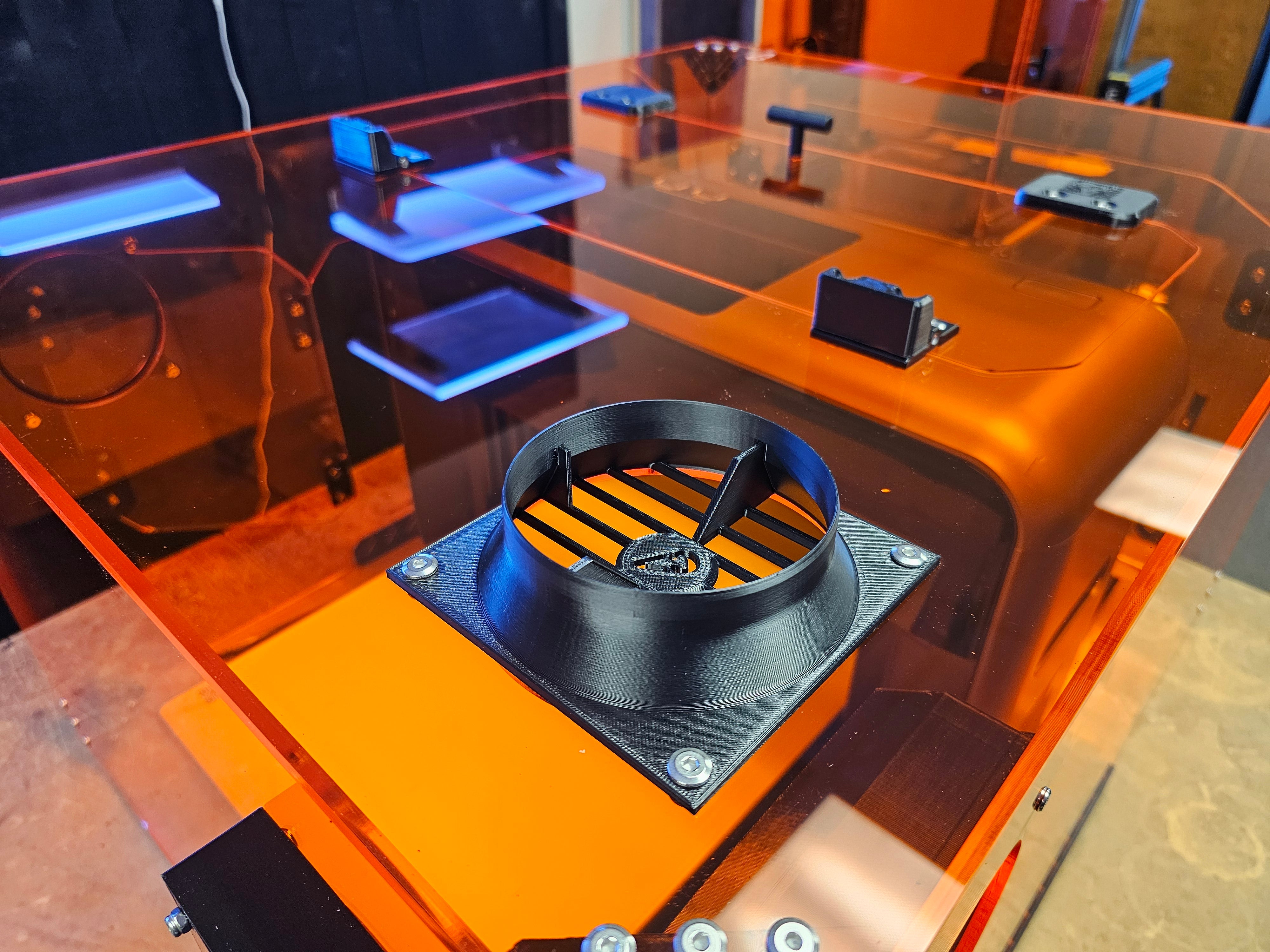

• Multiple size ducting brackets to fit your exhaust or air filter, from the most common 4″ down to 60mm.
• Optional 6th base panel that closes the bottom, matched to the clear or UV-blocking acrylic you choose.
• Optional second rear door for additional access from the back.

Three selections build the kit

The enclosure has a base price. Size and panel material are required selections on top of it, and accessories are added after that. A panel option on its own is not an enclosure — panel material is a selection that attaches to the enclosure, not a product you can buy by itself.

• The enclosure — panels, hardware, printed parts, ducting bracket, and a temperature and humidity sensor.
• Size — Standard at 27.15″ W × 19″ D × 17.75″ H, which fits the smaller print bed and the Rotary XL. Large at 27.15″ W × 35″ D × 17.75″ H, sized for the A3 print bed and the rotary with room for the doors to fold out and the accessories to run inside the enclosure.

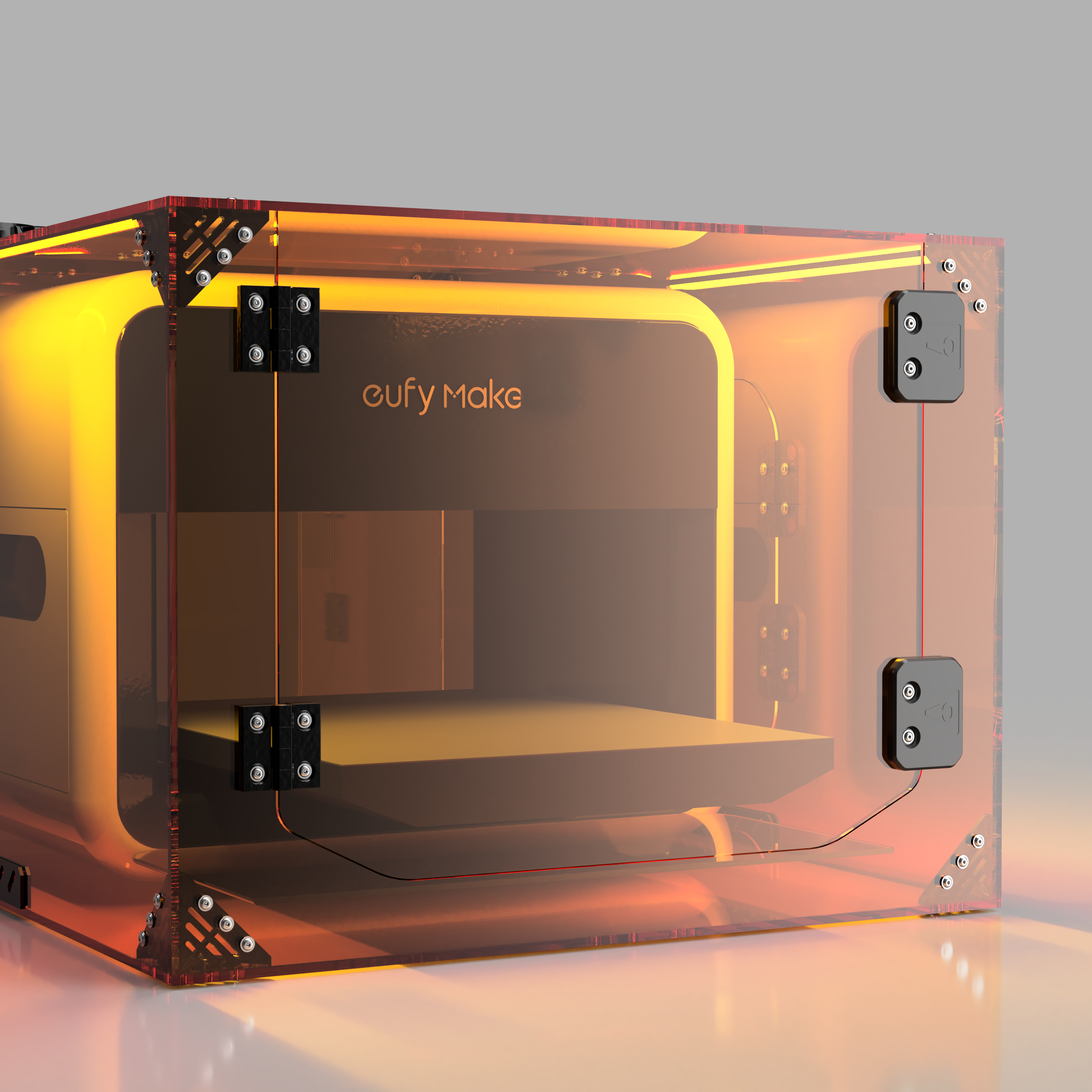

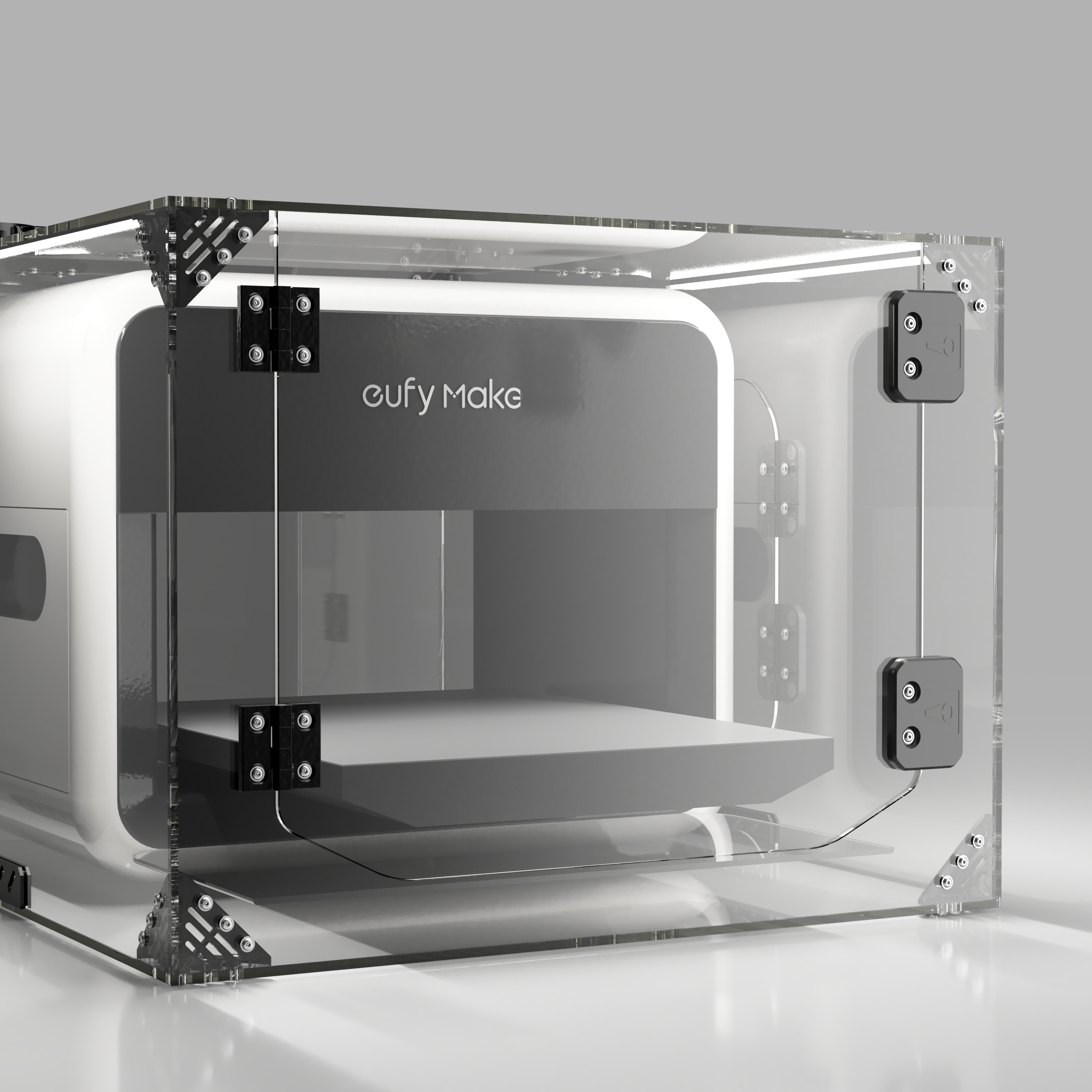

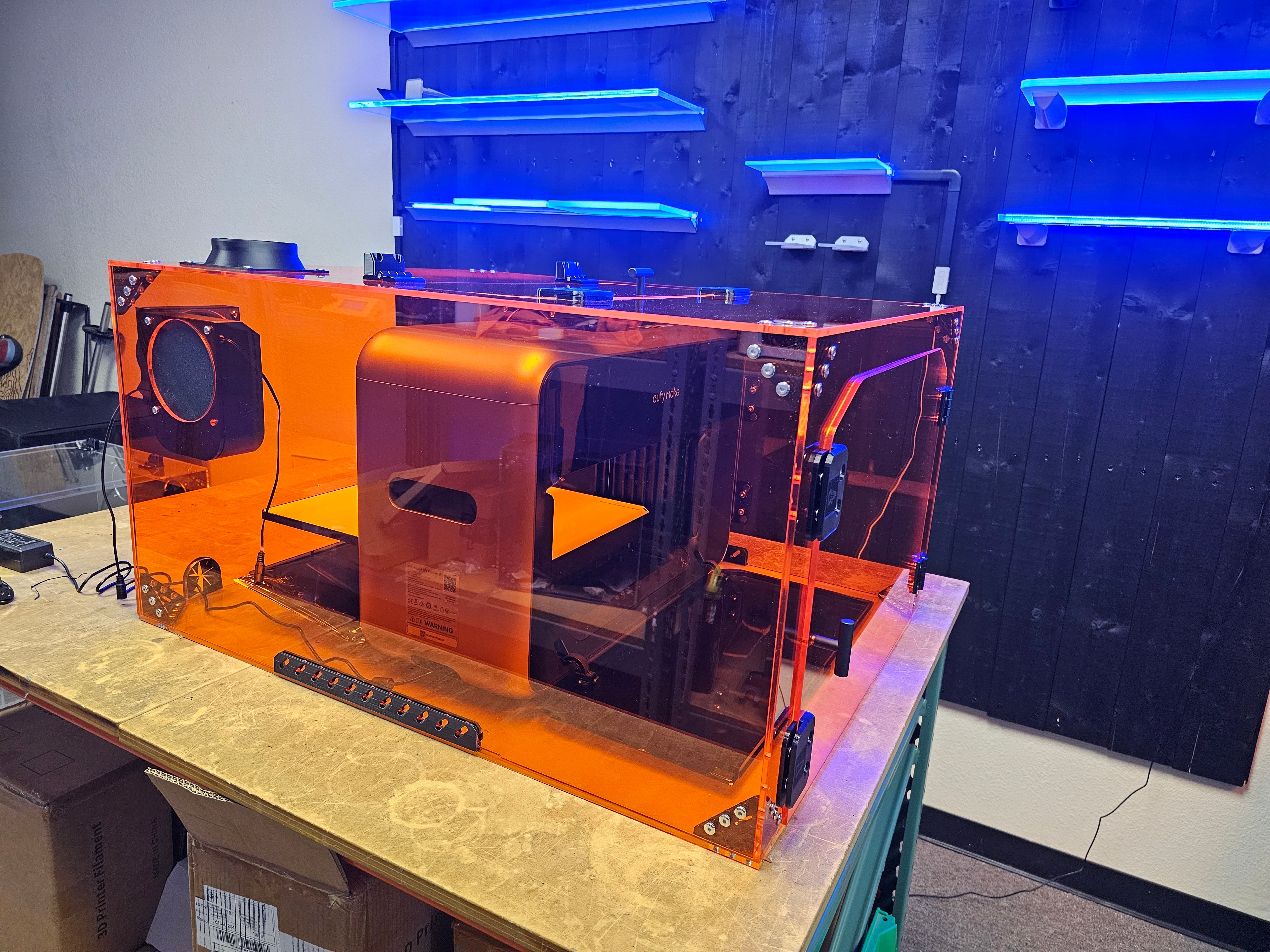

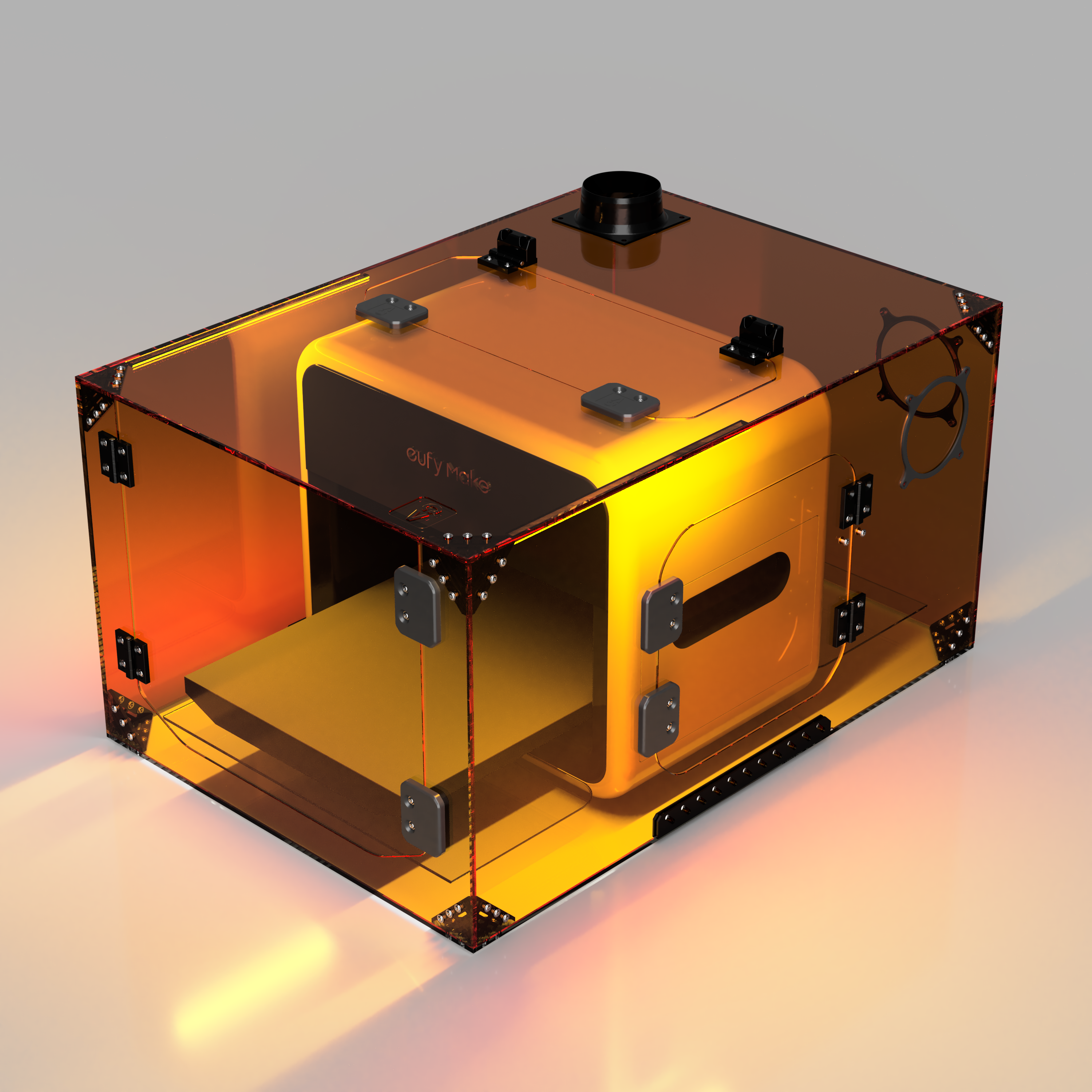

• Panel material — 1/4″ clear acrylic as the base option, or 1/4″ UV-blocking amber as an upgrade. Amber is suggested if you have kids or pets around the printer, or if you're sensitive to UV light. The E1 cures with 395nm UV-A. Optical spectroscopy on 6mm (1/4″) amber stock measured transmittance at 0.16% below 400nm and 0.11% below 450nm.

Optional accessories

6th base panel, second rear door, HD hardware upgrade (metal hinges, hex binding screws, metal door pulls), LED lighting, window exhaust kit, blast gate, 95 or 200 CFM fan, 90° elbow, 4″ to 3″ reducer, and a USB camera.

Air management

The enclosure's job is to contain the fumes. The filter or the duct does the rest. Containing them is what makes them treatable — concentrated in a box, they can be absorbed by a filter or carried out of the room. Loose in the air, they can't be.

Pick the port location that suits your bench and cover the ones you don't use. Match the bracket to your hardware, 4″ for hose and inline fans down to 60mm for smaller filter units. Slide the air inlet covers open so the exhaust has makeup air to pull — closed inlets choke the airflow. From there you can duct out a window with the window exhaust kit or a blast gate, run to an air filter where carbon filtration absorbs fumes and smells with no window needed, or move air with a 95 or 200 CFM fan on the port.

Fit and support

Cut for the eufyMake E1 specifically — not a universal cover. Designed around this machine: the doors it opens, the accessories it runs, and the room it needs to run them. No shimming, no modification, no drilling.

CNC-routed in Rocklin, California. One year warranty against manufacturer defects. Assembles with a Phillips screwdriver and a 2.5mm hex wrench.

Every printed part is in the file repository you get after ordering. If one breaks or gets revised, print a new one.

The EufyMake E1 Has a Problem Nobody's Talking About

The EufyMake E1 broke Kickstarter records. It prints on 300+ materials with stunning 2.5D texture. But there's a critical gap between what EufyMake markets and what E1 owners actually experience.

The standard flatbed, rotary attachment, and UV DTF roll-to-film mode all require the stock doors to be open.

That means for the E1's most popular and most profitable use cases — large prints, custom tumblers, UV DTF stickers — you're operating with zero built-in protection. No UV shielding. No fume containment. No dust barrier. The doors that EufyMake says block ">90% of UV light"? They're folded open while you print.

The Clearview enclosure eliminates that compromise entirely.

See the Enclosure in Action

Walkthroughs

Filter & Exhaust Options

What Reviewers Are Saying About the E1

This isn't speculation. Professional reviewers are documenting the same problems:

• 3DPrint.com: "Because of the smell while printing, you wouldn't want to be in the same room as this printer."
• The Gadgeteer: Reviewer's husband asked her to open the basement windows during longer prints.
• GeekSpin: "The room the printer is in will smell like ink as long as the machine is there."
• Samcraft (aftermarket adapter seller): The E1's built-in carbon filter is "often not enough for enclosed or poorly ventilated rooms."

And EufyMake's own ink safety documentation recommends chemical-resistant gloves, a mask with filter, and a well-ventilated space. Their ink cartridges carry four hazard symbols: ⚠️ warning, ☠️ health hazard, 🧪 corrosive, and 🌍 environmental hazard.

Our enclosure delivers that ventilation — engineered into the system.

5 Problems. One Solution.

🫁 VOC Fumes & Chemical Odor

UV inks release volatile organic compounds during curing — acrylate monomers that irritate eyes, nose, throat, and lungs. The E1's built-in carbon filter helps with the mini flatbed, but it's useless when the doors are open for full-size work. The Clearview enclosure contains the entire printer, with a 4" exhaust port. Connect to a window or filtration unit and VOCs are captured at the source — not floating through your home, your garage, or your kids' breathing space.

☀️ UV Light Exposure

The E1 cures ink with 395nm UV-A light. EufyMake includes safety goggles in the box — that alone tells you the exposure is real. Their FAQ recommends wearing them "if children are nearby." But goggles live in a drawer. Our optional UV-blocking amber acrylic panels block >99% of UV light — spectrometer verified. It's a permanent, passive shield that protects everyone in the room, every print, without anyone needing to remember to put goggles on.

🌫️ Dust Contamination & Failed Prints

UV printhead nozzles are roughly the same size as airborne dust particles. Floating dust clogs nozzles, creates banding in prints, and ruins substrates mid-print. With UV ink as expensive as it is, every failed print hurts. An enclosure creates a controlled, low-dust environment. Fewer clogs. Fewer reprints. Fewer cleaning cycles burning through expensive consumables.

🌡️ Temperature & Humidity Swings

EufyMake specs the E1 for 59°F–86°F operation, but most home users are printing in garages, basements, and workshops where conditions swing with the weather. Too hot, too cold, too humid, too dry — each one degrades print quality and accelerates nozzle wear. The enclosure includes a digital temperature sensor and hygrometer so you can monitor conditions in real time. The enclosed environment buffers against rapid swings, and adjustable air inlet covers let you fine-tune airflow.

🔧 Printhead Longevity

Here's the cost nobody talks about: the E1's printhead has a 3-month warranty. Everything that shortens printhead life — dust on the capping station, stray UV curing ink on the nozzle plate, temperature fluctuations thickening ink — is mitigated by the enclosure. Fewer clogs mean fewer cleaning cycles. Fewer cleaning cycles mean less ink wasted on maintenance. The printhead is the most expensive component to replace. Protecting it isn't optional — it's economics.

Protect Your Investment

Think about what's at stake:

• The printer itself
• Ink cartridge sets (and white and gloss inks get consumed fast)
• A printhead with only a 3-month warranty
• Every failed print = wasted ink + wasted substrate + wasted time

The enclosure doesn't just protect your health — it protects your business. Consistent conditions produce consistent prints. Fewer failed prints. Longer printhead life. Lower cost per print. It pays for itself in saved materials.

Who This Is For

Home Studio Users: You invested in a UV printer. Don't let it fill your house with chemical fumes. Print safely in any room — no dedicated workshop required.

Etsy & Craft Fair Sellers: Every failed print is money lost. Dust, clogs, and humidity swings ruin prints on expensive materials. Keep your cost-per-print predictable.

Parents & Family Spaces: UV light, chemical fumes, and curious kids don't mix. Amber panels keep the curing light in the box, and fume extraction carries the odor out instead of through the house.

Small Businesses & Side Hustles: Downtime is lost revenue. Reduce maintenance, extend printhead life, and deliver consistent results — print after print, order after order.

Power Users Running Multiple Modes: Flatbed, rotary, UV DTF — every mode benefits from controlled conditions. The enclosure accommodates all accessories while maintaining protection the stock E1 can't provide with its doors open.

The Only Full-Enclosure Solution for the EufyMake E1

The only other aftermarket option is a 3D-printed exhaust adapter — exhaust only, no enclosure, no UV protection, no dust control. Clearview is the only purpose-built, full-enclosure safety system designed specifically for the EufyMake E1.

What's Included

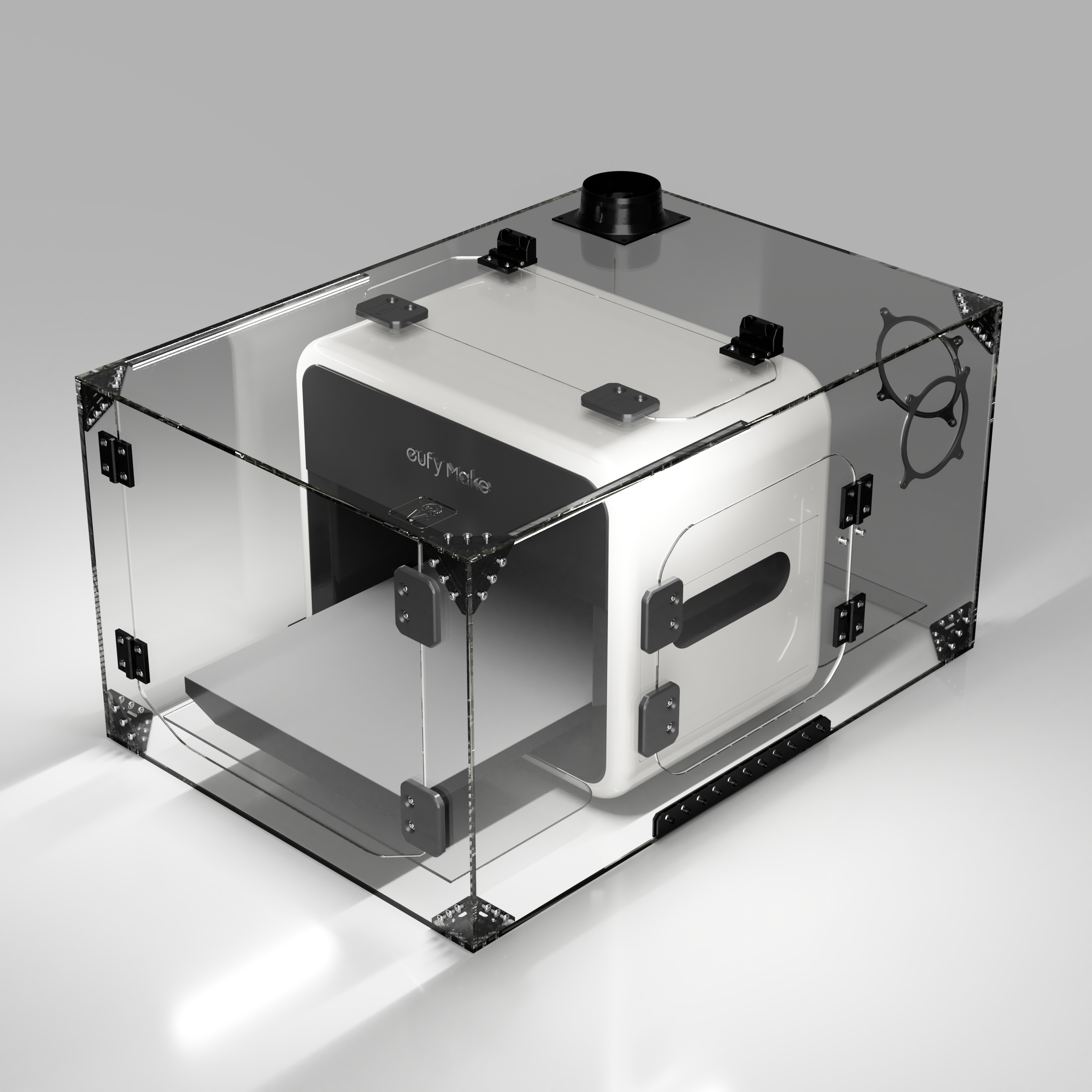

• Panels: 1/4" thick transparent clear acrylic panels (5-sided set-over design). Optional upgrades: commercial grade clear acrylic or optional UV-blocking amber acrylic (>99% UV protection), or commercial grade tinted acrylic.
• Hardware: Rust-resistant screws and connectors for easy assembly. Optional HD hardware upgrade includes metal hinges, hex binding screws, and metal door pulls.
• Digital Sensor: Temperature sensor and hygrometer for real-time monitoring of printing conditions (59°F–86°F, 20%–80% humidity).

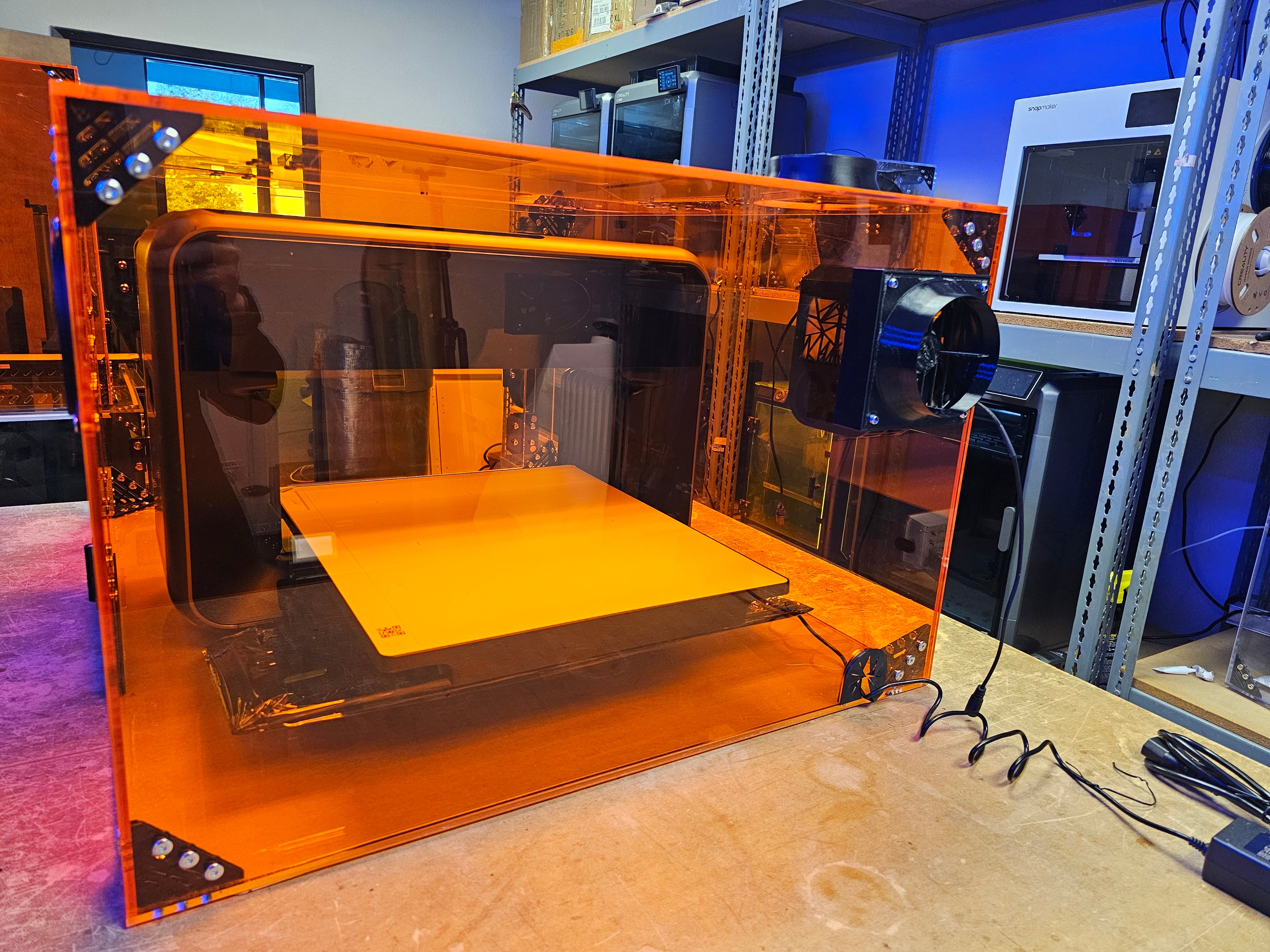

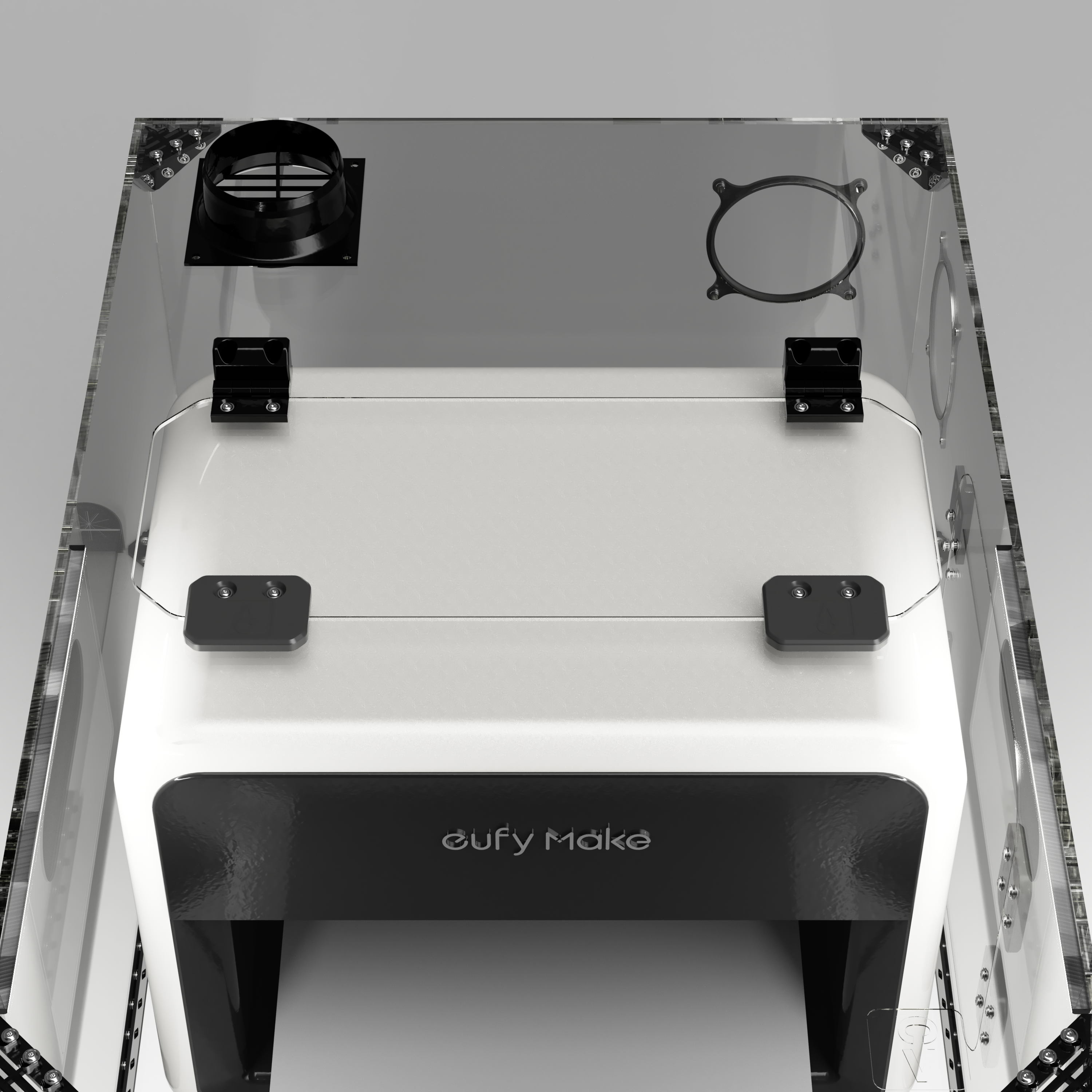

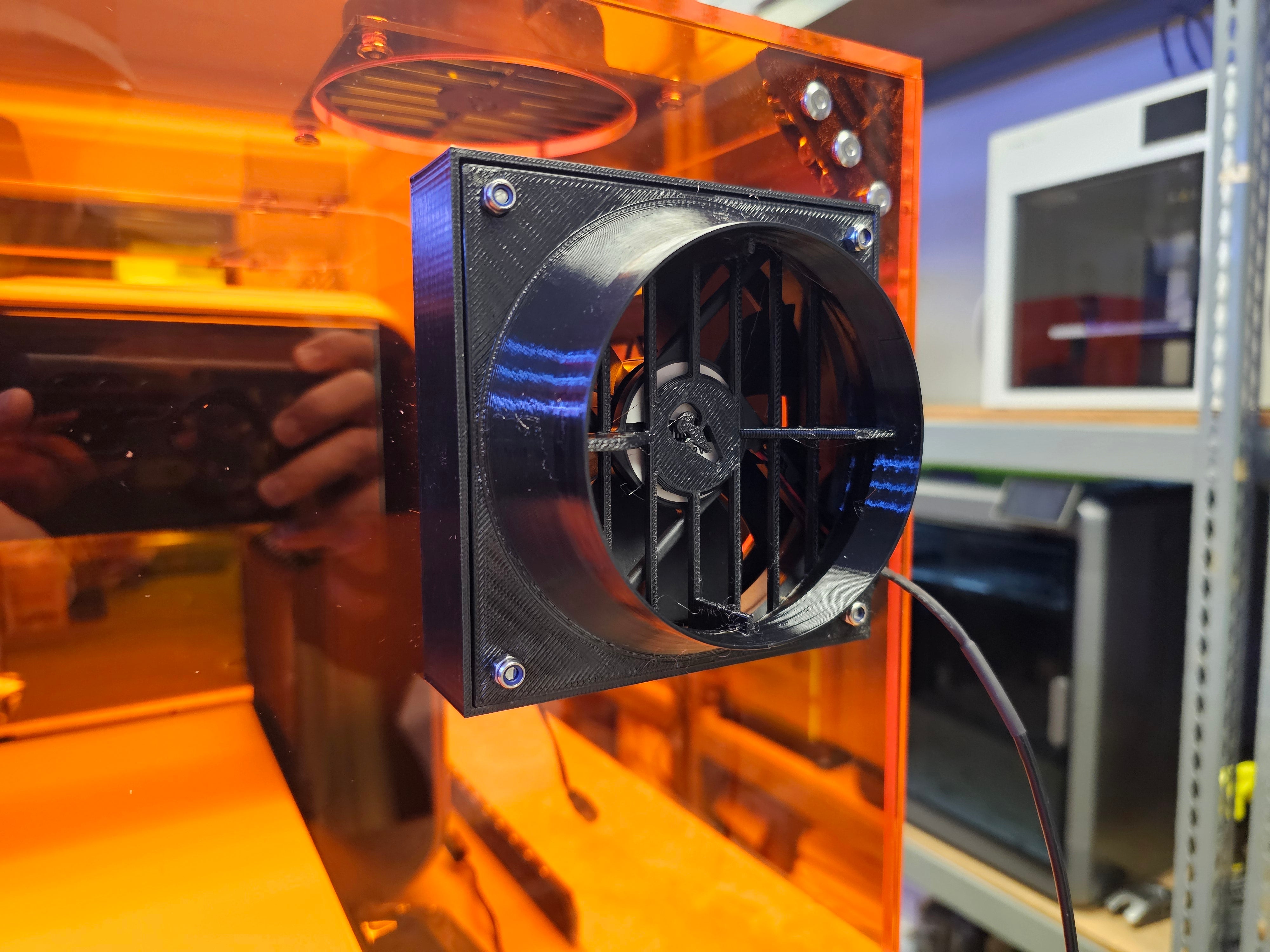

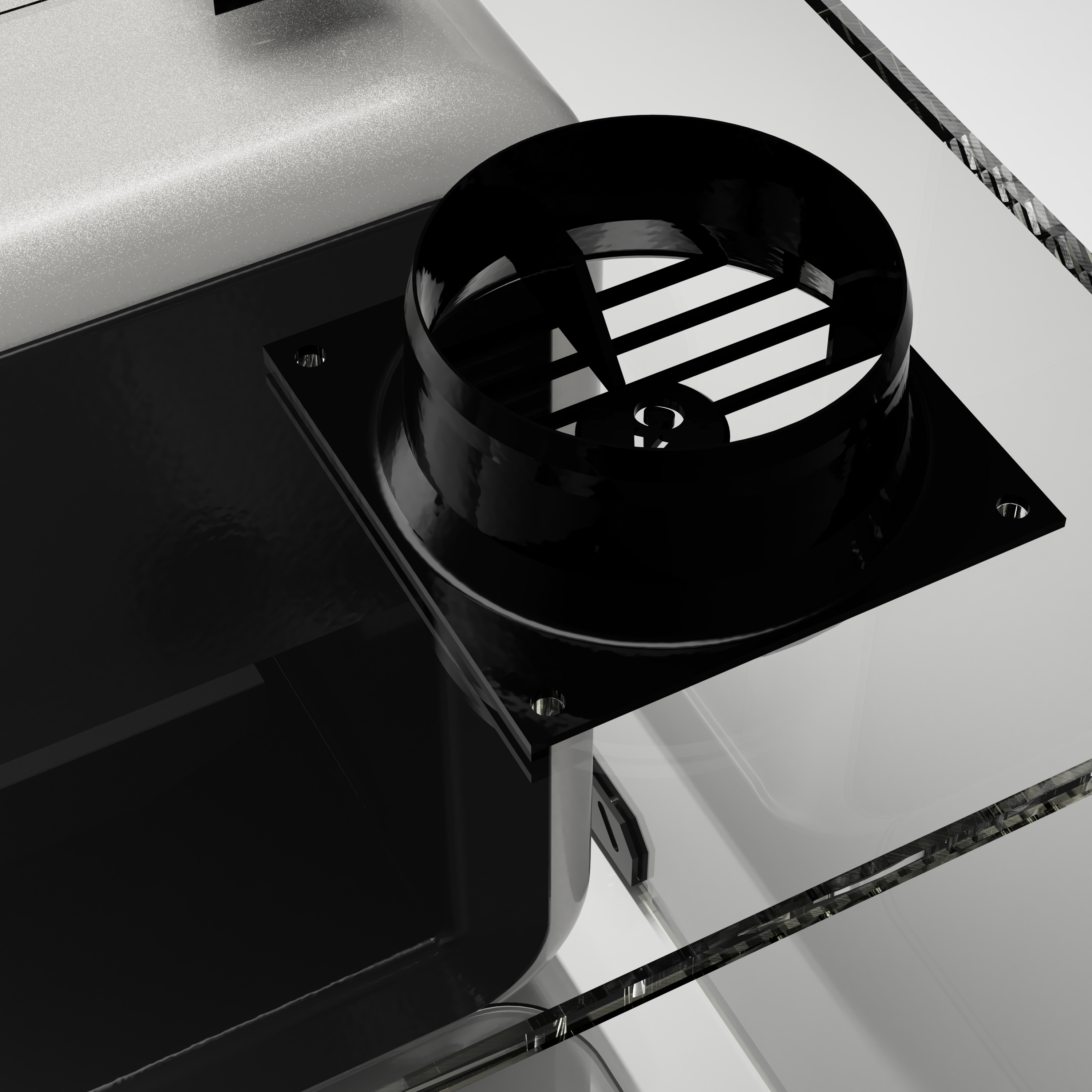

• Exhaust: 4" exhaust bracket with three exhaust openings (top, side, back) and two sliding air inlet covers. Upgrade to 95 or 200 CFM compact fan.

Dimensions

• Standard 600mm wide x 480mm deep x 450mm Tall (27.15" x 19" x 17.75") - Fits smaller print bed and Rotary
• XL -600mm Wide x 910mm Deep x 450mm Tall (27.15" x 35" x 17.75") — sized to fit the E1's A3 print bed (400mm x 300mm) and rotary attachment with room for doors to fold out and all accessories to operate inside the enclosure.

Assembly

Assembles in 1–2 hours with a Phillips screwdriver and/or 2.5mm hex wrench. Includes 3D-printed parts for brackets and attachments — simple, tool-light process with no complex mods required.

Optional Accessories

• LED Lighting: Adhesive-mount with barrel plugs for easy setup and improved visibility.
• 6th Base Panel: Enhances fume and dust containment for the 5-sided set-over design.
• Window Insert: Portable AC-style insert for easy 4" exhaust hose connection to a window.
• Heavy Duty Hardware: Metal hinges, hex binding screws, and metal door pulls for enhanced durability.
• Blast Gate with Exhaust Bracket: Supports custom window setups with a 4" hose that closes to prevent backflow.
• Ducting Options: 90-degree elbow and 4" to 3" reducer for flexible exhaust connections.
• USB Camera: Windows/Mac-compatible for remote print monitoring.

Built by UV printing enthusiasts. Proudly owned and made in the USA. Every enclosure comes with a 100% satisfaction guarantee and a 1-year warranty against manufacturer defects.
