Fiber Laser (1064 nm / Class 4) — Workplace Safety & Compliance Document Pack (Digital Download)

Professional Safety Documentation for Class 4 Fiber Laser Installations

A fiber laser at 1064 nm is a Class 4 laser — the most hazardous classification that exists. The beam is invisible to the human eye, there is no blink reflex to protect you, and direct or reflected exposure causes instant, permanent retinal damage at power levels as low as 500 mW. Your system operates at 20–100 watts. ANSI Z136.1-2022 requires a designated Laser Safety Officer, a formal laser safety program, and documented engineering controls — and OSHA will cite you under the General Duty Clause if you don't have them.

This document pack gives you the professionally written laser safety framework your facility needs to operate fiber laser marking, engraving, and cutting systems in compliance with ANSI Z136.1, FDA laser product regulations, and OSHA requirements.

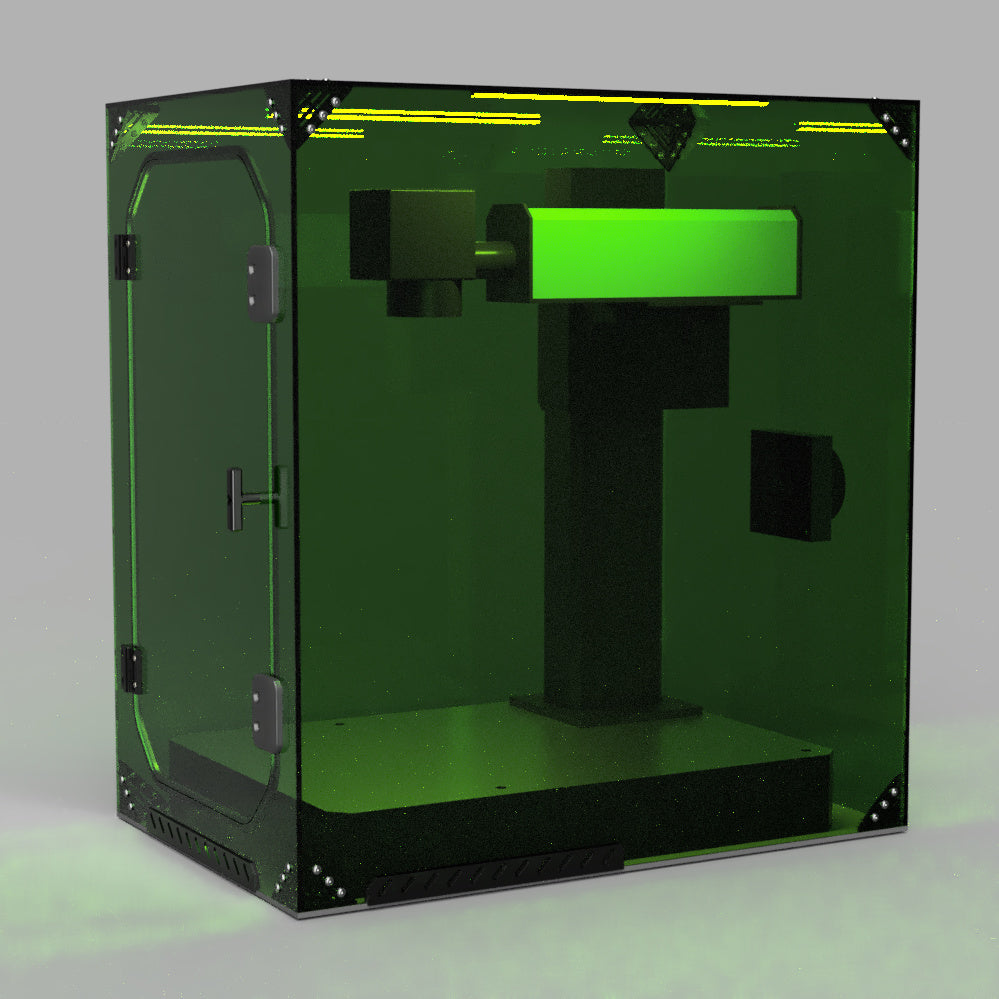

Developed by Clearview Plastics, the industry leader in laser enclosures and workplace safety solutions since 2008.

What's Included (3 Documents)

1. Workplace Safety & Compliance Package
Your core laser safety document — 18 sections built around ANSI Z136.1-2022 requirements. Covers Class 4 laser hazard classification, invisible 1064 nm radiation hazards (retinal burns in milliseconds, no visual warning), metal fume exposure hazards with OSHA PEL reference tables (hexavalent chromium at 5 μg/m³ — a known carcinogen from stainless steel processing, plus zinc oxide, nickel, aluminum oxide, and iron oxide), fire hazards from focused beam ignition, and reflected beam hazards from specular metal surfaces. Includes complete engineering control specifications: OD 6+ enclosure requirements at 1064 nm, non-defeatable interlock design (dual-channel safety switches), viewing window OD specifications, fume extraction sizing (300–500 CFM with HEPA + activated carbon), beam path controls, and controlled area designation. Full PPE requirements including wavelength-specific OD 6+ laser safety eyewear, respiratory protection for metal fumes, and task-specific PPE matrix. Laser Safety Officer program framework, LOTO procedures, emergency response protocols, operator training checklist, incident reporting log, state-specific requirements reference, and ANSI-standard signage templates.

⚠ Invisible Radiation — No Warning Before Injury: 1064 nm laser energy is completely invisible. There is no glow, no visible dot, and no blink reflex protection. At Class 4 power levels, retinal burns are instantaneous and permanent. These documents include the engineering controls, interlock requirements, and eyewear specifications that prevent exposure — because once it happens, the damage cannot be reversed.

2. Room Readiness Guide
Pre-installation checklist for fiber laser facilities — covering electrical power and grounding specifications, ventilation and fume extraction routing (HEPA + activated carbon, sealed ductwork, no recirculation), laser safety room design and controlled area layout, structural and environmental requirements (vibration isolation, temperature/humidity), equipment integration planning (chiller, compressor, controller placement), ANSI-standard laser warning signage placement, and a complete electrical load calculation worksheet. Includes sequential installation planning guidance: electrical → ventilation → structural prep → equipment delivery. Complete this before your laser system arrives.

3. Maintenance & Inspection Guide
Ongoing compliance documentation with scheduled inspection tables for enclosure integrity, interlock function testing (quarterly minimum per ANSI Z136.1), viewing window OD verification, fume extraction performance, beam alignment, and laser power output. Includes filter replacement schedules, ground resistance verification, emergency stop testing, laser safety eyewear inspection protocols, and a 6-month fillable inspection log. ANSI Z136.1-2022 and OSHA require documented maintenance records — this keeps your laser safety program audit-ready.

Regulatory Standards Referenced

• ANSI Z136.1-2022 (American National Standard for Safe Use of Lasers)
• ANSI Z136.9-2013 (Laser Classification by Hazard)
• FDA 21 CFR 1040.10 & 1040.11 (Performance Standards for Laser Products)
• IEC 60825-1 (Safety of Laser Products — International Standard)
• OSHA General Duty Clause, Section 5(a)(1) of the OSH Act
• OSHA 29 CFR 1910.132/.133/.134 (PPE — General, Eye/Face, Respiratory)
• OSHA 29 CFR 1910.1000 (Air Contaminants — Metal Fume PELs)
• NFPA 115 (Fire Protection in Laboratories Using Lasers)

Who This Is For

• Businesses operating fiber laser marking, engraving, or cutting systems in any workplace setting
• Facilities that need to designate a Laser Safety Officer and implement a formal laser safety program
• Job shops, contract manufacturers, and makerspaces with Class 4 lasers on-site
• Schools and universities adding fiber laser capability to engineering or fabrication labs
• Any facility preparing for an OSHA inspection or EHS audit with Class 4 laser equipment

How It Works

All three documents are delivered as editable .docx files. Fill in your facility name, laser model/serial numbers, Laser Safety Officer designation, and specific operating parameters in the clearly marked fields. Print, file, and present to your EHS department, OSHA inspector, insurance auditor, or facility safety officer.

This is a baseline category-level document pack applicable to 1064 nm fiber laser systems from all major manufacturers and integrators — JPT, Raycus, MAX, IPG, xTool, OMTech, Cloudray, and others. Machine-specific versions with pre-filled specifications are available separately.

Why Fiber Lasers Require Dedicated Safety Documentation

Fiber lasers operate under an entirely different regulatory framework than other shop equipment. ANSI Z136.1-2022 is a comprehensive laser safety standard that requires a designated Laser Safety Officer, formal training programs, engineered interlocks, controlled area designations, and wavelength-specific PPE — none of which are covered by general workplace safety documents. The FDA also regulates laser products under 21 CFR 1040, adding federal product safety requirements on top of OSHA's workplace obligations. If you have a Class 4 laser and no documented laser safety program, you have a compliance gap that this pack is designed to close.

Important Disclaimer

These documents are provided as an informational safety framework and do not constitute legal advice, regulatory certification, or a guarantee of compliance. Employers must verify that all recommendations align with current federal, state, and local occupational safety regulations and applicable laser safety standards. See full disclaimer within each document.
