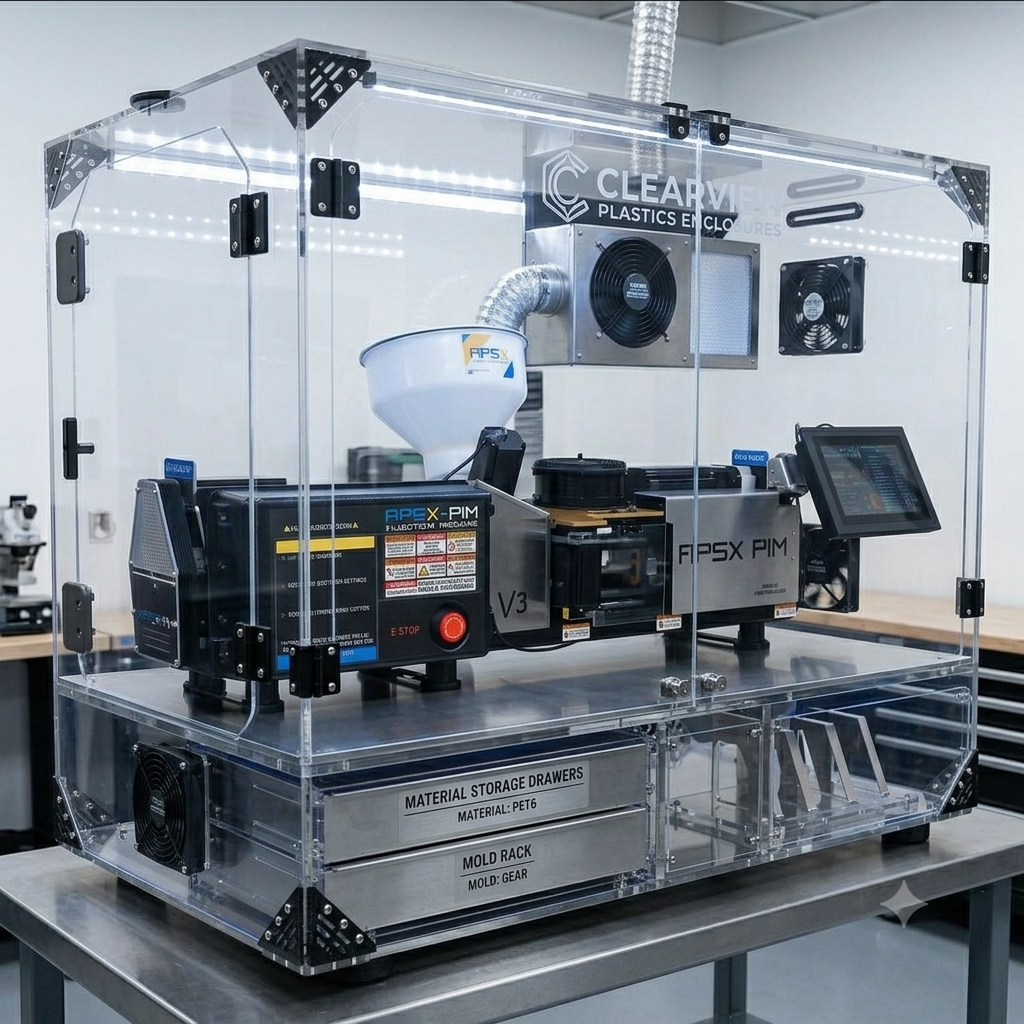

Injection Molding Machines — Workplace Safety & Compliance Document Pack (Digital Download)

Safety Documentation for Desktop & Benchtop Injection Molding Machines

Desktop injection molding machines melt thermoplastic at 150–330ºC and inject it into a mold at up to 40 MPa (5,800 psi). Small enough for a workbench, they carry industrial hazards: molten polymer that adheres to skin and keeps burning, purge spatter, high clamping and injection forces with real pinch and crush points, stored compressed-air energy on pneumatic presses, and polymer decomposition fumes — styrene from ABS, formaldehyde from overheated acetal, and worse from the wrong material. Under OSHA, machine guarding (29 CFR 1910.212), lockout/tagout for mold changes (1910.147), and HazCom for every resin and purge compound (1910.1200) are mandatory — and a generic shop safety sheet addresses none of the molding-specific hazards.

This is a category-level document pack written for desktop and benchtop injection molding machines — manual lever presses (Galomb B-100, Holipress, LNS PIM-Shooter), pneumatic presses (Action BOX INJEKTO 3, Buster Beagle MK3/MK4, Injection Mini V2), and automatic electric benchtops (APSX-PIM V3) — with a hazard-by-architecture matrix so you keep the sections that apply to your machine.

Developed by Clearview Plastics, the industry leader in machine enclosures and workplace safety solutions since 2008.

What's Included (5 Documents)

1. Safety & Compliance Package
Full hazard assessment: molten polymer and hot surfaces, material-specific decomposition products, high-pressure injection and mold blow-by (including 3D-printed mold failure), pinch/crush and machine guarding, compressed air, electrical and runaway-heating failure modes, and fire. Includes prohibited practices and material restrictions, standard operating procedures, a PPE matrix by machine architecture, emergency response including the molten-plastic burn protocol, and a compliance sign-off table.

⚠ Molten Plastic Is Not Hot Glue: Thermoplastic at injection temperature sticks to skin and continues burning while it cools — and purging intentionally ejects it. These documents specify the purge procedures, face-shield requirements, mold-verification steps, and burn-response protocol an inspector expects to see.

2. Room Readiness Guide
Bench rating and machine anchoring, full-extension height clearance (vertical presses grow during the stroke — the INJEKTO 3 goes from 27″ to 38″ with rods extended), dedicated electrical circuits for sustained heater loads, compressor placement and air-line routing, ventilation planning, fire protection, and material storage. Includes a pre-installation checklist with sign-off.

3. Ventilation & Exhaust Guide
Material-specific emission hazards, three control configurations — enclosure with ducted exhaust (with a worked CFM example), source capture, and carbon-filtration recirculating with its material restrictions — plus makeup air, duct routing rules, a commissioning smoke test, and filter maintenance schedules.

4. Maintenance & Inspection Guide
Safe-state/LOTO procedure including compressed-air isolate-and-bleed, preventive maintenance schedule from per-session checks to annual electrical inspection, runaway-heating verification (the SSR/thermocouple failure mode), degraded-material purge procedure, troubleshooting quick reference, and a 6-month fillable inspection log.

5. Visitor / Operator Safety Orientation
Plain-language hot-zone briefing for schools, makerspaces, labs, and shared facilities — do/don't rules, fume awareness, a four-level authorization matrix (visitor → student → operator → maintainer), K-12 adaptation notes, emergency basics, and an acknowledgment sign-off. Print and post at the workstation.

Machines Covered

• Manual lever presses: Galomb Model B-100, Holimaker Holipress, LNS Technologies PIM-Shooter
• Pneumatic presses: Action BOX INJEKTO 3, Buster Beagle 3D MK3/MK4, Injection Mini V2
• Automatic electric benchtops: APSX-PIM V3 and similar
• Notes for desktop metal injection molding (Action BOX INJEKTO M) sintering-furnace workflows
• Fillable specification fields adapt every document to your exact machine

Regulatory Standards Referenced

• OSHA 29 CFR 1910.212 (Machine Guarding — point of operation)
• OSHA 29 CFR 1910.147 (Lockout/Tagout — mold changes, service)
• OSHA 29 CFR 1910.1200 (Hazard Communication — resin SDSs, GHS, training)
• OSHA 29 CFR 1910.132 / .133 (PPE — General, Eye/Face Protection)
• OSHA 29 CFR 1910.1000 (Air Contaminants — styrene, formaldehyde PELs)
• OSHA 29 CFR 1910.106 (Flammable Liquids — mold release storage)
• ANSI/PLASTICS B151.1 (Injection Molding Machine Safety — reference)
• NIOSH thermoplastic-processing guidance and ACGIH TLVs
• Cal/OSHA Title 8 CCR §3203 (Injury & Illness Prevention Program)

Who This Is For

• Any business, school, university, or makerspace operating a desktop injection molding machine
• Product developers and mold shops adding in-house molding to a 3D-printing workflow
• Facilities preparing for EHS audit, insurance review, or safety inspection
• Any facility that needs HazCom and machine-guarding documentation for injection molding

How It Works

All five documents are delivered as editable .docx files with desktop injection molding hazards, procedures, and regulatory references pre-built. Add your machine's make, model, temperatures, pressures, and facility details in the clearly marked fields — a hazard-by-architecture matrix tells you which sections apply to manual, pneumatic, or automatic machines. Print, file, and present to your EHS department, safety auditor, or facility inspector.

Important Disclaimer

These documents are provided as an informational safety framework and do not constitute legal advice, regulatory certification, or a guarantee of compliance. Employers must verify that all recommendations align with current federal, state, and local occupational safety regulations. See full disclaimer within each document.
