Omron MX-Z2000H-V1 Fiber Laser Marker Enclosure & Workstation (MX-Z2000H-V1 / MX-Z2050H-V1 / MX-Z2055H-V1)

The Omron MX-Z2000H-V1 series is Omron's fiber laser marker: a 20 W, 1062 nm fiber source driving a separate galvo head, used for 2D codes, serials and traceability marks on metal and resin parts. It ships as a Class 4 laser product. That wavelength is invisible, reflects off the metal you're marking, and passes straight through clear acrylic and polycarbonate.

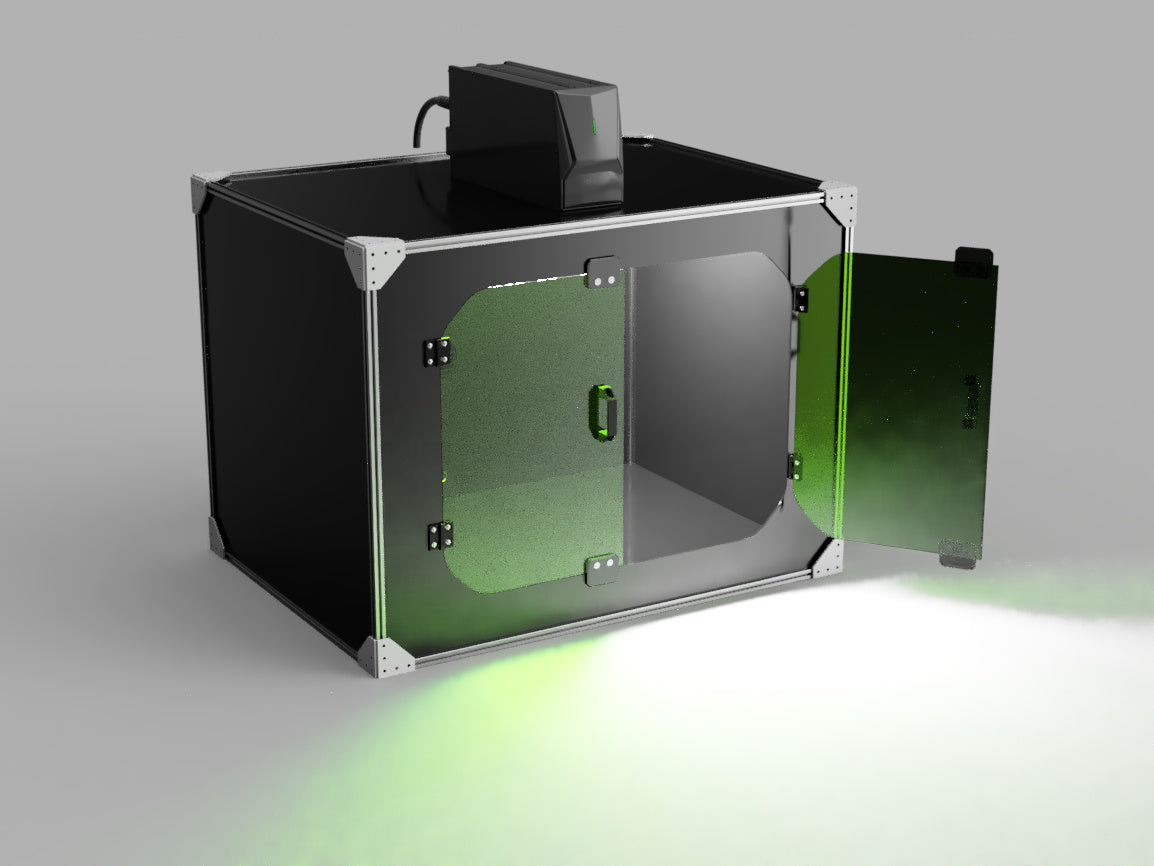

Omron's own setup manual tells users to "install a protective enclosure around the laser radiation range and scattered beams." Omron doesn't sell one. This is it: an opaque aluminum-composite enclosure or a complete workstation, built to the MX-Z head's mounting drawing, with door interlocks wired to the controller's interlock terminals, a 1064 nm laser-safety window, and extraction sized to what you're marking. The head itself is never touched.

Built around the MX-Z head, not a generic galvo

• Chamber height set from working distance. The MX-Z2000H-V1 focuses at 170 ±10 mm over 90 × 90 mm. The MX-Z2050H-V1 and MX-Z2055H-V1 focus at 220 ±10 mm over 160 × 160 mm. All three share one head envelope, so the same enclosure body fits each model with the platform set to its working distance. We stack working distance, your fixture and your tallest part, then add service clearance.
• Head mount machined to Omron's pattern. The head is 140 × 230 × 415 mm (W × H × D) and about 15 kg. Omron specifies M6 screws in at least four of its eight mounting holes, with 50 mm clear around the head. We mount it to a rigid plate at a fixed, repeatable height, because a readable code grade depends on the part meeting the same focus every cycle.

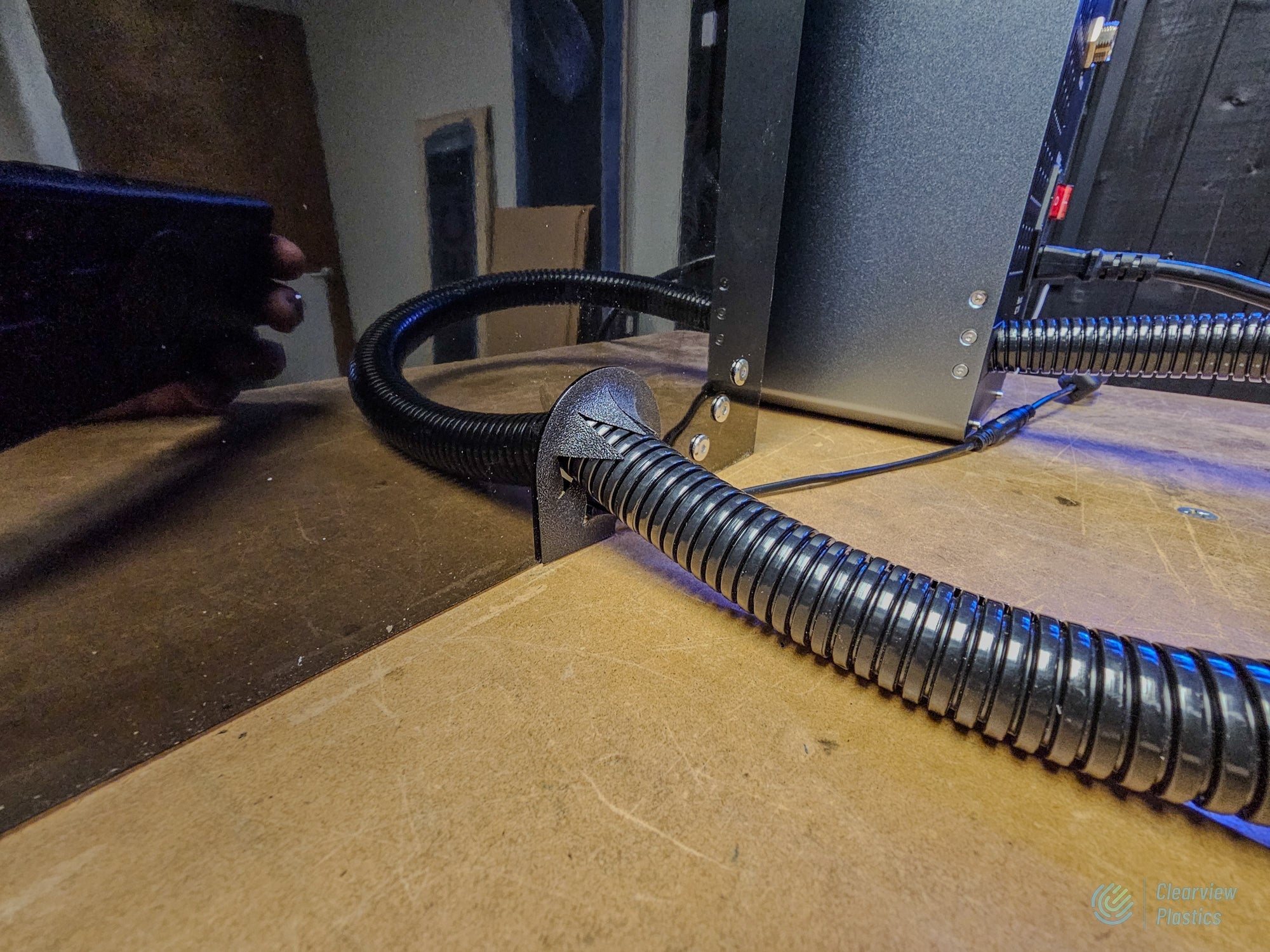

• A cable pass-through designed for a fiber that can't be unplugged. The 4.5 m fiber cable comes pre-connected and can't be disconnected, with a 100 mm minimum bend radius. We use split, sealed cable entries so the head installs without threading anything through a hole, and the fiber never gets pinched in a door seam.
• Controller bay with its own air. The MX-Z controller is 225 × 430 × 390 mm, about 25 kg, and forced-air cooled with fans that exhaust out the rear. It gets a ventilated bay within cable reach, with its air path kept separate from the fume stream. We follow the clearances in Omron's instruction sheet.

Beam containment, scoped honestly

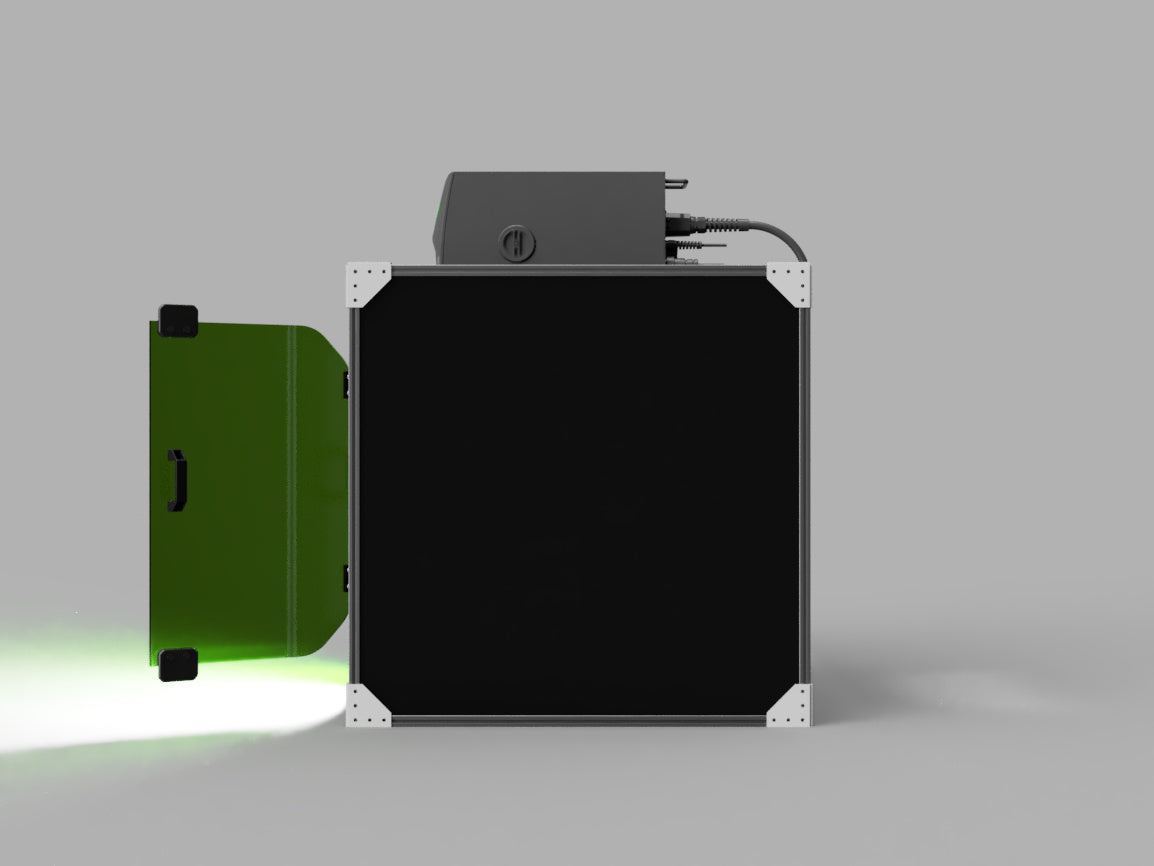

• Opaque ACM walls. The walls are 1/4" aluminum composite panel, not clear plastic. The aluminum face helps block stray 1064 nm reflections off steel, titanium and aluminum parts.

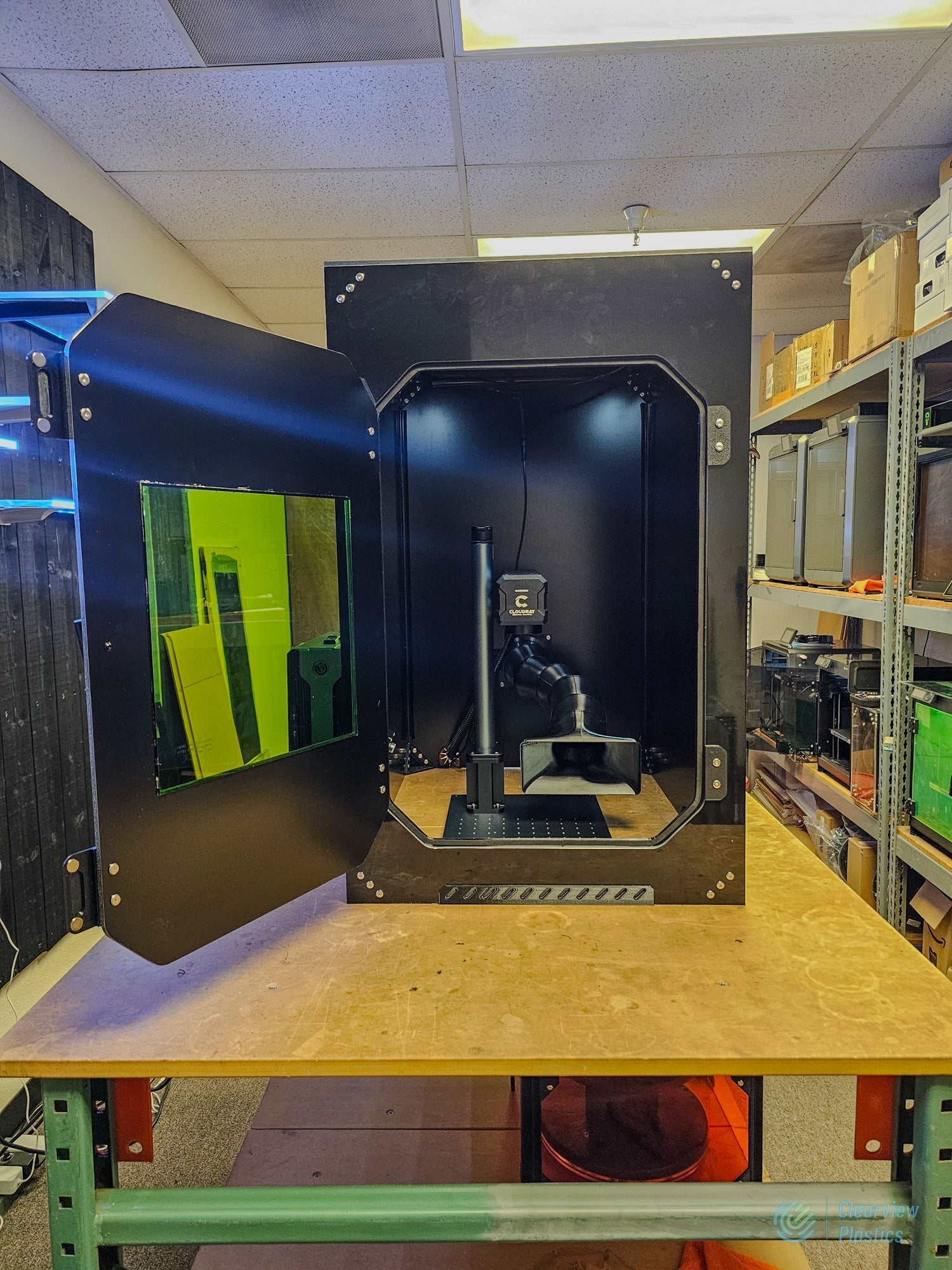

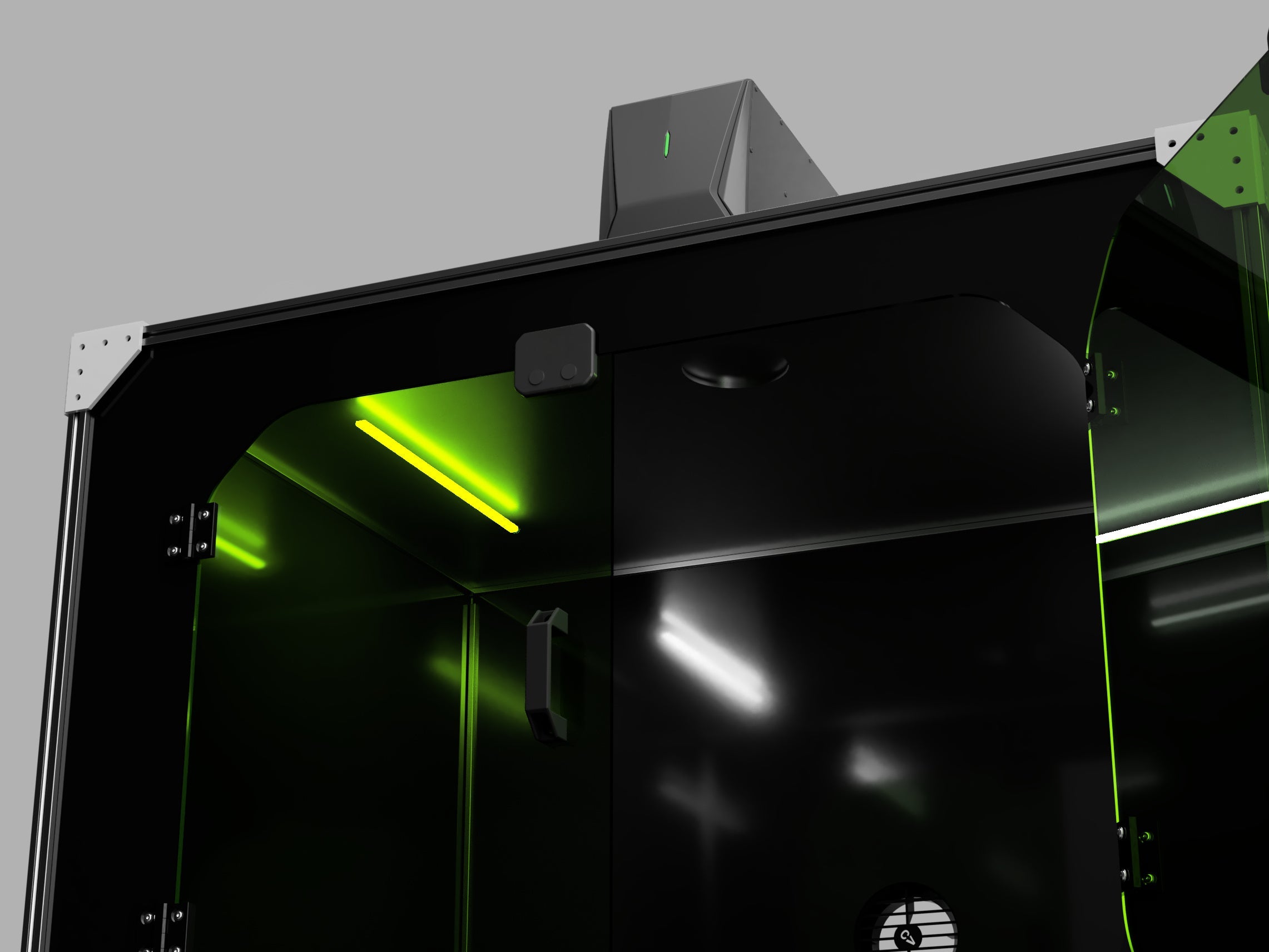

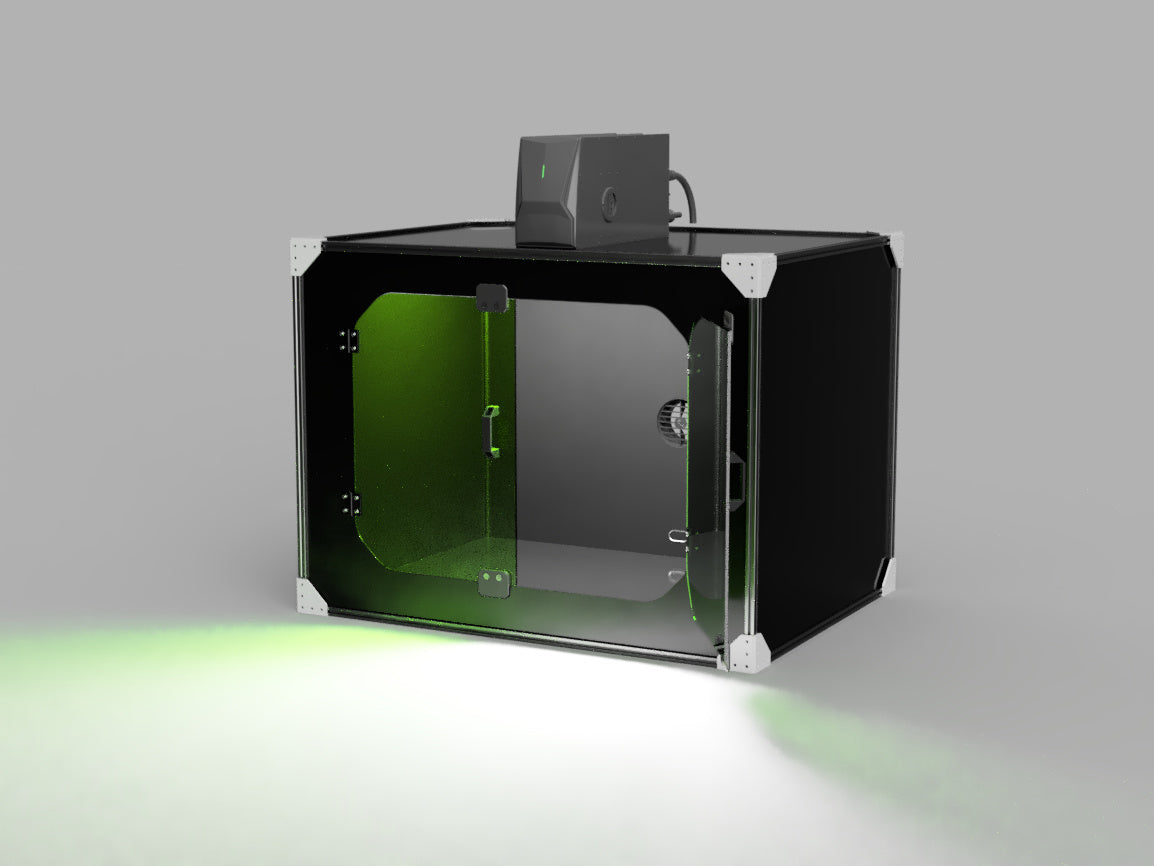

• Window matched to 1064 nm. The window is Double YAG laser-safety acrylic from Laser Safety Industries, which the supplier spectrometer-tested at OD6+ for IR. The supplier's data ships with your documentation. You can also choose no window and monitor by camera.
• Interlocked doors to the MX-Z safety terminals. Door switches are fitted, wired and labeled to terminate at the controller's interlock terminal block, the EMERGENCY and SHUTTER circuits Omron provides. Omron calls for the interlock system to meet Category 3 under ISO 13849-1. We supply the switches and the wiring diagram; your integrator validates the circuit. We don't open, modify or rewire the head or the controller.

Fume capture sized to the material

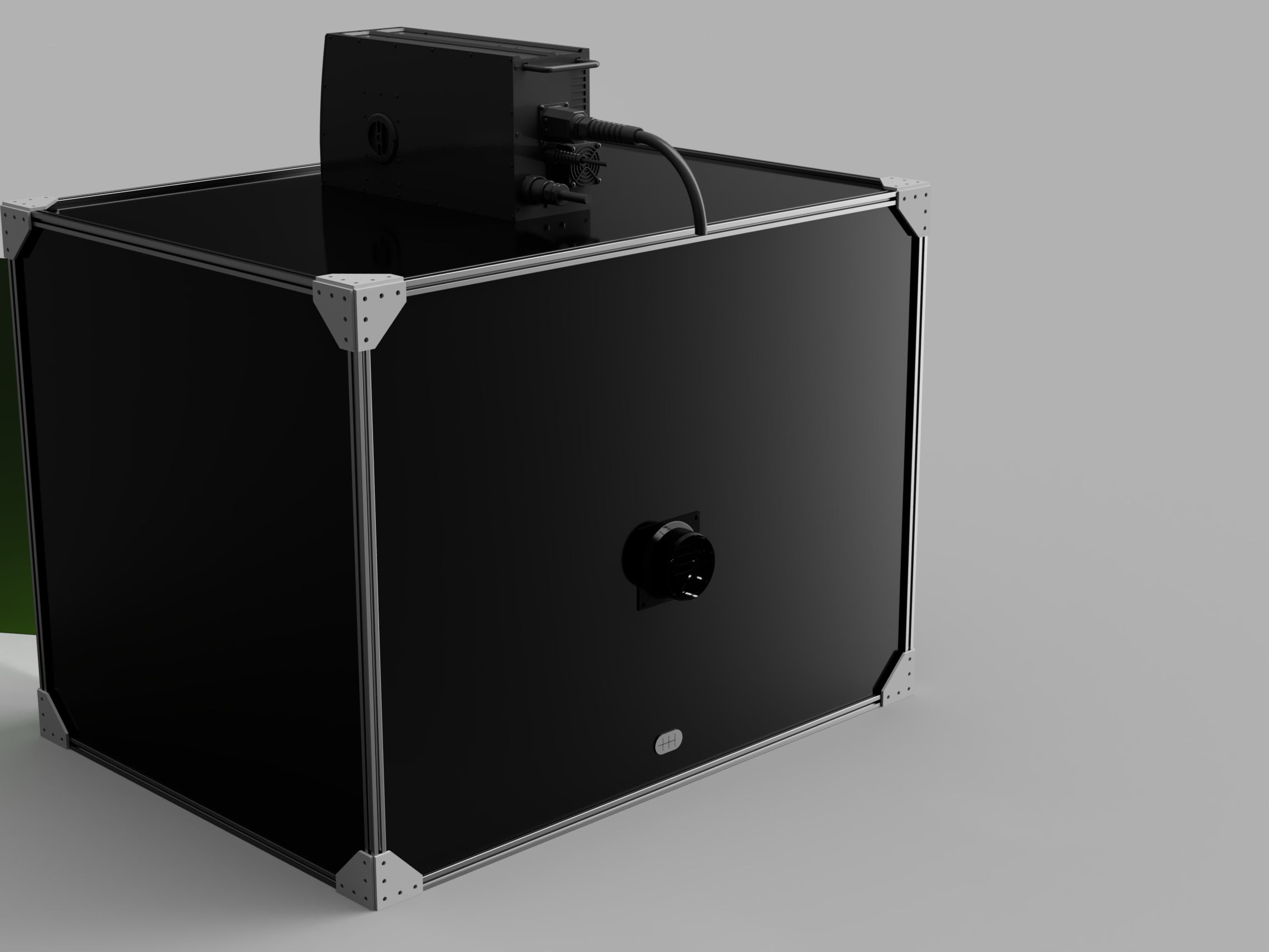

Marking anodized aluminum, coated steel, resins or beryllium copper puts fume in the room. For beryllium copper, OSHA 29 CFR 1910.1024 sets the exposure limit at 0.2 µg/m³. The person loading parts all shift breathes whatever the enclosure doesn't capture. Every MX-Z build includes a source-capture port at the mark and an exhaust port sized to your extractor (4" or 75 mm). A commercial-grade Donaldson BOFA extractor package is available when you want higher volume filtration capacity.

Configure your build (quoted)

• Fit: MX-Z2000H-V1 (90 × 90 mm), MX-Z2050H-V1 and MX-Z2055H-V1 (160 × 160 mm), and the earlier MX-Z2000H, MX-Z2050H and MX-Z2055H

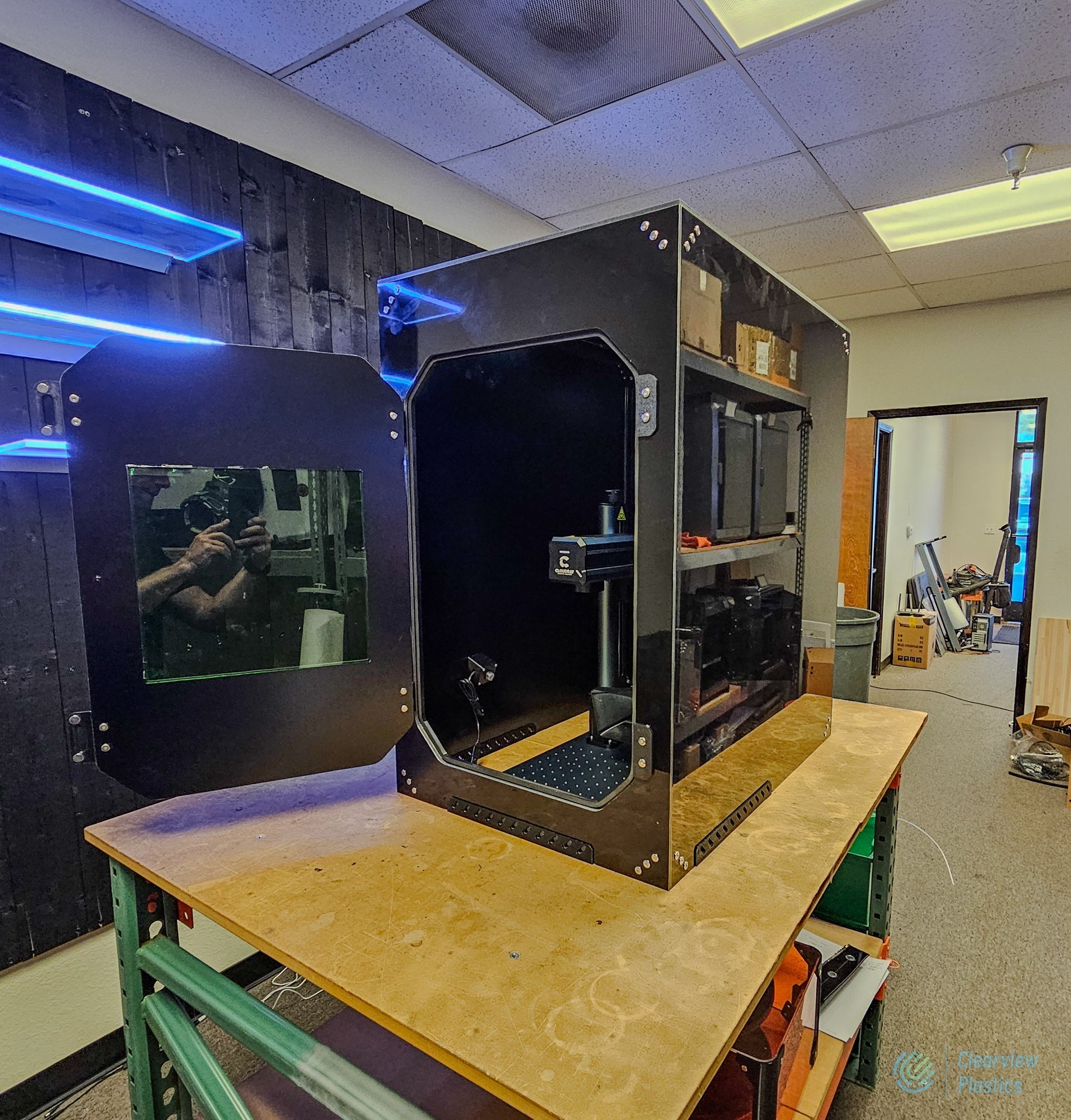

• Format: benchtop enclosure over your existing bench, or a complete workstation with the enclosure on a base that has a controller bay, an extractor bay and storage

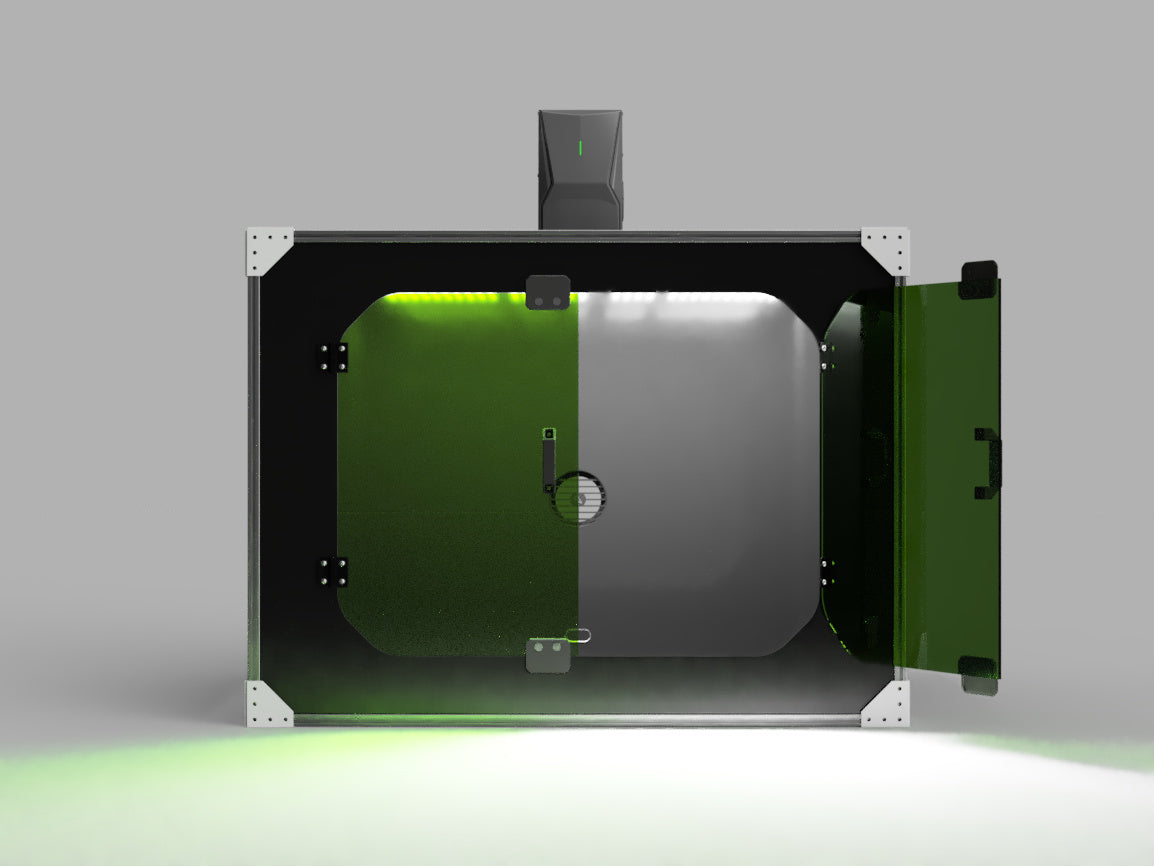

• Access: front door standard; side doors for pass-through of long parts; fixture plate; rotary clearance
• Part height: fixed platform set to your part, or a lift table for mixed part heights
• Viewing: 1064 nm laser-safety window, camera only, or both

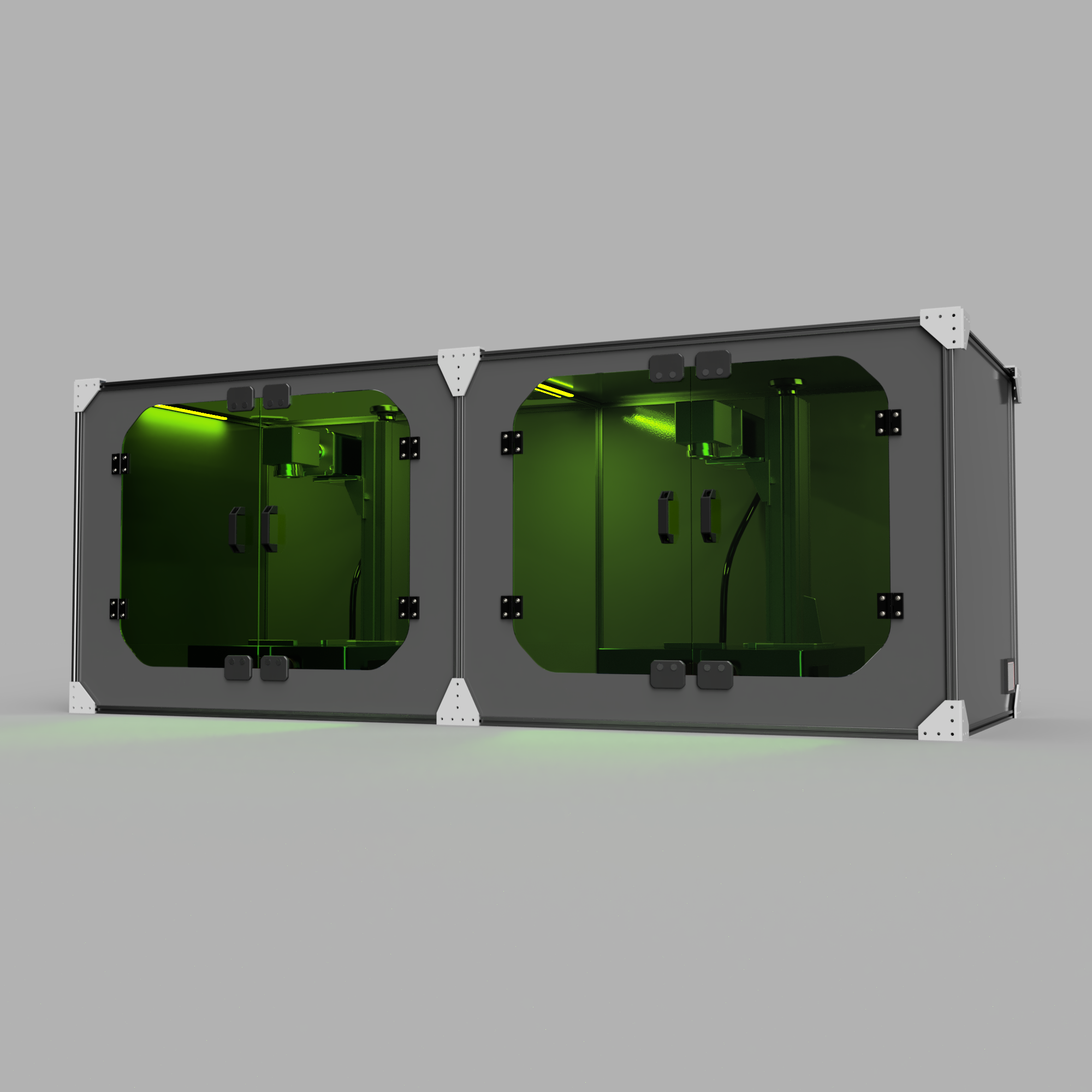

• Multi-head: double-bay layouts with two heads in one housing sharing one extraction run

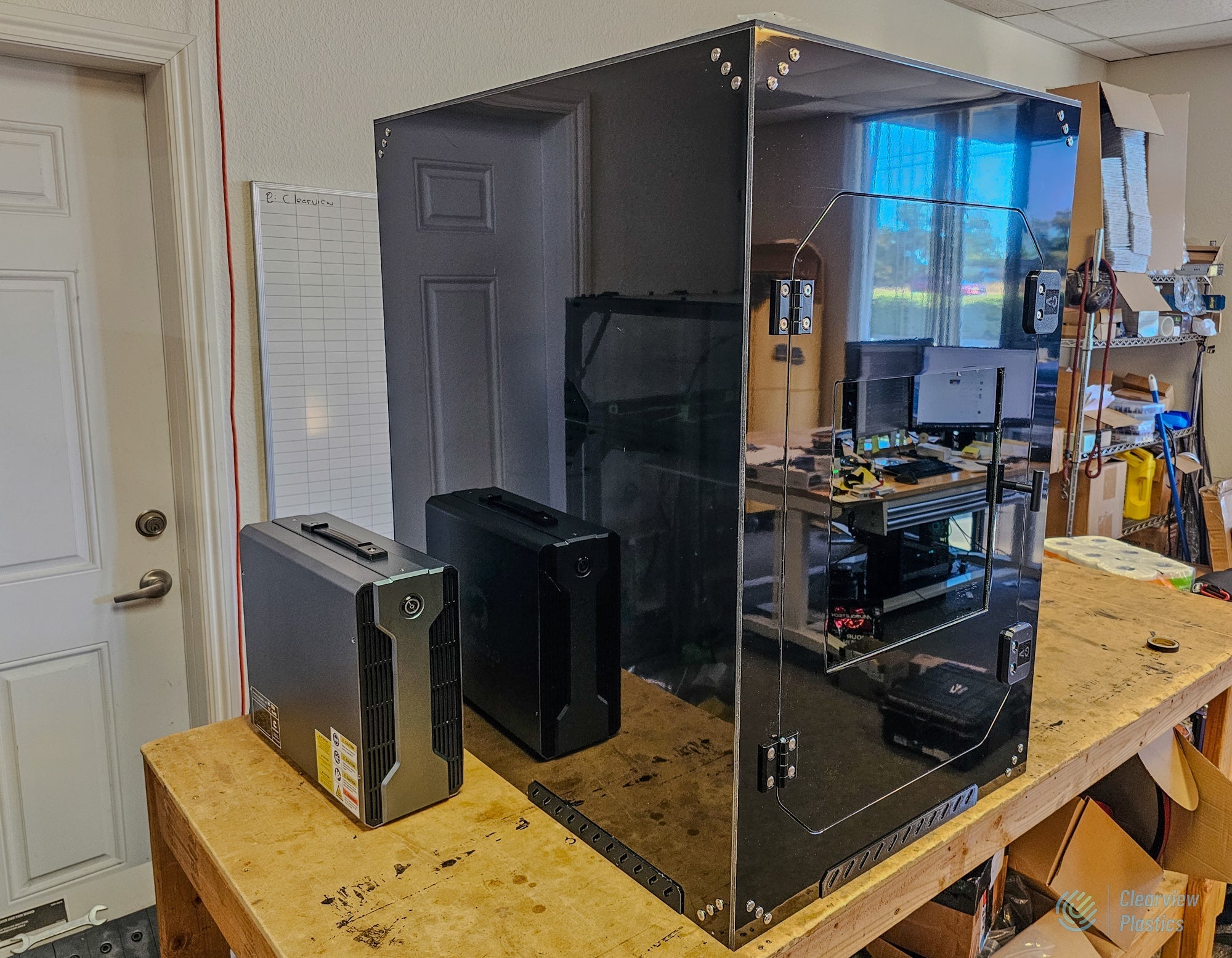

• Extraction: source-capture arm, 4" or 75 mm port, Donaldson BOFA extractor package
• Delivery: flat-packed or delivered assembled

Your Omron unit (published by Omron)

Frequently asked questions

Omron has announced the end of the MX-Z series. Is an enclosure still worth it?
Omron's discontinuation notice sets the last order date at the end of March 2027 and keeps repair support running through March 2034. Heads already on your floor will be marking parts for years, and they still need the protective enclosure Omron's manual calls for. If a different head replaces your MX-Z later, the mount plate can be remade for it.

Will this make my MX-Z a Class 1 laser?
No enclosure sold on its own does that. Laser classification belongs to the finished laser system and its manufacturer under 21 CFR 1040.10. We build the protective housing and interlock provisions your safety plan calls for. Your laser safety officer gets the drawings, materials and window data for the ANSI Z136.1 evaluation. If your program needs a certified Class 1 system, tell us at the start and we'll plan it with you and your laser vendor.

How is this different from a standard marking station?
A standard station is built around a standard stage. We build around your part: long stock through side doors, fixtures that register the part for repeatable code grades, two heads in one housing, and a controller and extractor in the same footprint.

Do you install or commission the laser?
We build and ship the enclosure with its drawings and interlock wiring diagram. Omron or your integrator commissions the marker, which keeps its certification and warranty with the company that made it.

POs and net terms?
Yes. We accept POs, ACH and cards, supply a W-9 on request, and offer net terms on qualifying orders.

Images show Clearview laser marking enclosures and workstations as reference builds, rendered with a representative marking head. Your MX-Z enclosure is drawn to your unit. Omron and MX-Z are trademarks of OMRON Corporation. Clearview Plastics is an independent enclosure fabricator and is not affiliated with, authorized by or endorsed by Omron; model names describe fit only. Clearview enclosures do not change the classification of the laser inside them. Made in California.
