Rotary Evaporator Enclosure — 38" | Heidolph Hei-VAP & Büchi R-300

A rotovap is the one instrument that genuinely needs its own enclosure

It is tall, it is awkward, it emits solvent vapour, and it does not fit in a normal hood. That is why Air Science, AirClean, Mystaire and Heidolph all run dedicated rotovap-enclosure product lines — this is the rare piece of lab equipment where an instrument-specific aftermarket enclosure is a real, established category rather than a hopeful one.

It ships assembled, on a pallet

This is a four-foot box on a 30 mm extrusion frame. A frame that size, assembled out of a carton by someone who has never squared extrusion, ends up out of square — and an out-of-square polycarbonate box leaks at every seam, which defeats the entire point of buying it. So we don't flat-pack this one. We build it, square it, check it and crate it here.

• ✅ Assembled, squared and leak-checked in Rocklin — six hours of bench time before it goes in the crate
• ✅ Crated on a pallet — 200 lb shipping weight, LTL freight
• ✅ 15 business days from approved drawing to freight pickup

Specification

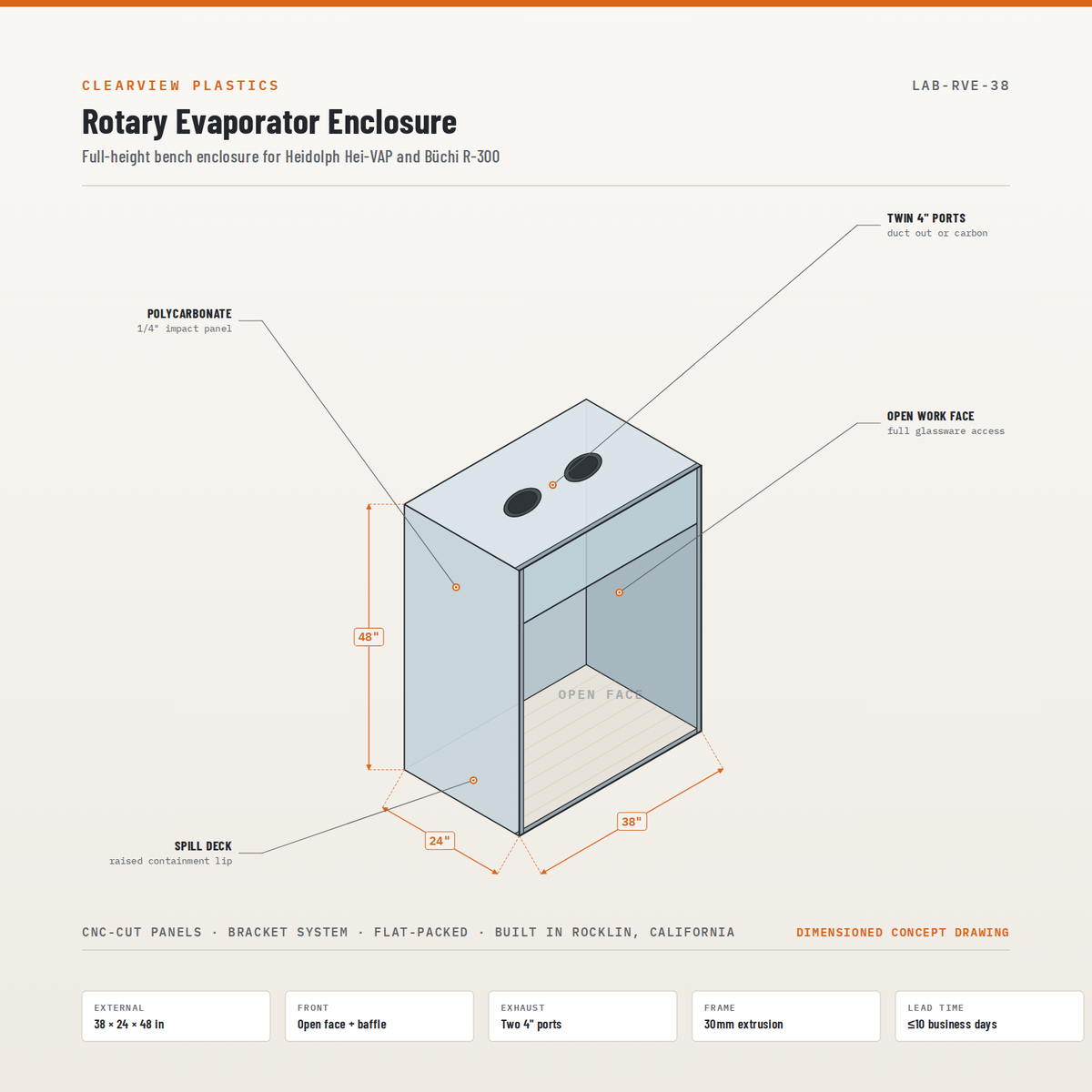

• ✅ External 38" W × 24" D × 48" H — the standard footprint for this class, sized for a Heidolph Hei-VAP or Büchi R-300 with bath and condenser
• ✅ 1/4" CNC-cut polycarbonate panels — impact-rated, and the right choice next to glassware under vacuum
• ✅ 30 mm aluminium extrusion frame included — not an upsell, and not optional at this height
• ✅ Open work face with a fixed upper baffle — full access to glassware, the lift and the bath
• ✅ Two 4" exhaust ports in the top panel: duct out, or run inline carbon
• ✅ Raised spill deck with a containment lip — a bath does eventually go over
• ✅ Cable grommets for vacuum line, chiller lines and power

On price, since you are going to look up the alternatives anyway

Mystaire's LabPartner runs roughly $3,200 to $4,100 depending on voltage. We land in that same range, and we are not going to pretend we undercut them — we don't. What you get from us is a polycarbonate enclosure cut to your instrument's actual envelope, on a real frame, assembled and checked before it ships, from a shop you can call and talk to. What you do not get is their certification paperwork. If the paperwork is the requirement, buy theirs. That is a straight answer, not modesty.

Straight talk, and please read this one

This enclosure contains vapour and gives it a path out. We do not test to ANSI/ASHRAE 110, SEFA 9 or AFNOR NF X 15-211, we do not validate filtration, and we make no capture-efficiency, airflow, breakthrough or health claims.

So: this is the right product if you are ducting to outside air and want containment, visibility and spill control around an awkward instrument. It is the wrong product if your EHS group requires validated ductless filtration, if you are working with low-molecular-weight solvents that carbon handles poorly, or if you need documented containment for a regulated process. In those cases buy from Air Science, Erlab or Mystaire — that is what their certifications buy, and we would rather say so up front than take the order.

Freight, plainly

This arrives on a truck, not in a van. Confirm you have a dock, or ask us to quote a liftgate before you order. Residential, limited-access, campus-dock-only and inside-delivery addresses all cost more, and we will quote you rather than surprise you. When it lands, inspect the crate before you sign the delivery receipt — once you sign clean, a damage claim gets a great deal harder for both of us.

Before you order

Send us the rotovap model, the bath, the condenser configuration and your bench height. Vertical and diagonal condensers change the envelope significantly, and so does whether the chiller sits inside or beside.

Built in Rocklin, California. One-year warranty, 30-day returns, and a 100% satisfaction guarantee.
