Description
xClearview Plastics · Creality Ender 3 V3 Mega Combo Enclosure
Cleaner workspace.
Healthier air.
Better prints.
Quieter printing.
The Ender 3 V3 Mega is a 420 × 420 × 420 mm bed-slinger built for batch runs, cosplay-scale props and long TPU jobs. That's a lot of hours with a hot nozzle and a large plate moving through open air: drafts lift corners on big flat parts, dust settles on the plate and in the motion system, and every bit of fume and particulate off the nozzle drifts into the room you work in.
The Clearview enclosure puts a defined, finished space around the whole machine, including the full front-to-back travel of that 420 mm plate, and gives the space somewhere to send its air: filter ports that take any of our filters, or an exhaust run out a window. It's a bolt-on panel kit, CNC-routed in California, built on the same design as our Bambu A2L large-format enclosure, and it needs no modification to the printer.
Ender 3 V3 Mega Combo
23.2″ × 23.1″ × 27.5″
590 × 588 × 697.5 mm, 23 kg (51 lb) with CFS nano. Plus the 420 mm plate's travel front to back.
Suggested enclosure
31″ W × 42″ D × 32″ H
787 × 1067 × 813 mm. Sized for the plate at both ends of its travel, with room for cables and air.
Minimum table top
33″ × 44″
Rated to 150 lb. At 42″ deep this overhangs almost any desk — measure first.
Coming soon · Sold out until the first kits ship. Tap Notify me to hear when it's live. Size confirmed against the printer before kits ship.
Four reasons to enclose it
01 — CLEANER
A workspace that looks finished
Printer, spools and cables sit in one enclosed unit instead of spreading across a bench. Clear panels, cables routed through grommets, and doors that open where you work. It reads as professional equipment, in an office, a lab, or a room at home other people use.
02 — HEALTHIER
Fumes and particulate stay contained
Every filament gives off fumes and ultrafine particulate at some level, PLA included, and an open Ender 3 V3 Mega puts all of it straight into the room. The enclosure contains it, so a filter can reduce it or an exhaust run can carry it outside.
03 — BETTER PRINTS
Better prints, in more materials
Big flat parts are where warping shows up first. The enclosure holds chamber heat and blocks drafts so a 400 mm part stays down at the corners, and it keeps dust off the plate and out of the motion system so the machine prints consistently and goes longer between maintenance.
04 — QUIETER
A room you can still work in
Panels on every side take the edge off fan and motion noise, so a long print doesn't take over the room. Add the vibration dampening feet to cut the ringing that travels through the bench.
And then you open the door
A sealed box with nothing moving the air just stores fumes until you open it, then releases them into the room all at once. That's why these enclosures aren't gasketed. The filter or exhaust keeps air moving through the enclosure the whole time, so the air inside is being treated, not saved up for the moment the door opens.
Who it's built for
Built for work where the result matters.
THE PARTS
When the parts matter
Production runs, client work and prototypes, where a failed print costs more than the filament.
THE PEOPLE
When people share the air
Employees in a shared workspace, students in a lab, or your family in the next room.
THE ROOM
When the room has standards
A lab or clean space that can't take in what a printer puts out, or a dusty shop the printer needs protecting from.
Fortune 500 companies, government labs and top universities run Clearview enclosures. So do physicians, attorneys, executives and senior engineers.
If your shop, school or lab answers to a safety review, the five-document FDM 3D Printer Safety Documentation Pack is written for exactly that conversation. See a sample first (PDF, no email required).
Creality Ender 3 V3 Mega Combo Enclosure Kit
A large-format enclosure kit for the Creality Ender 3 V3 Mega and Ender 3 V3 Mega Combo. It's built on the same design as our Bambu Lab A2L large-format enclosure, scaled up to give the Mega's 420 mm plate its full travel inside the box. Panels, hardware and printed parts are in the kit, it assembles with hand tools, and nothing on the printer gets drilled or modified.

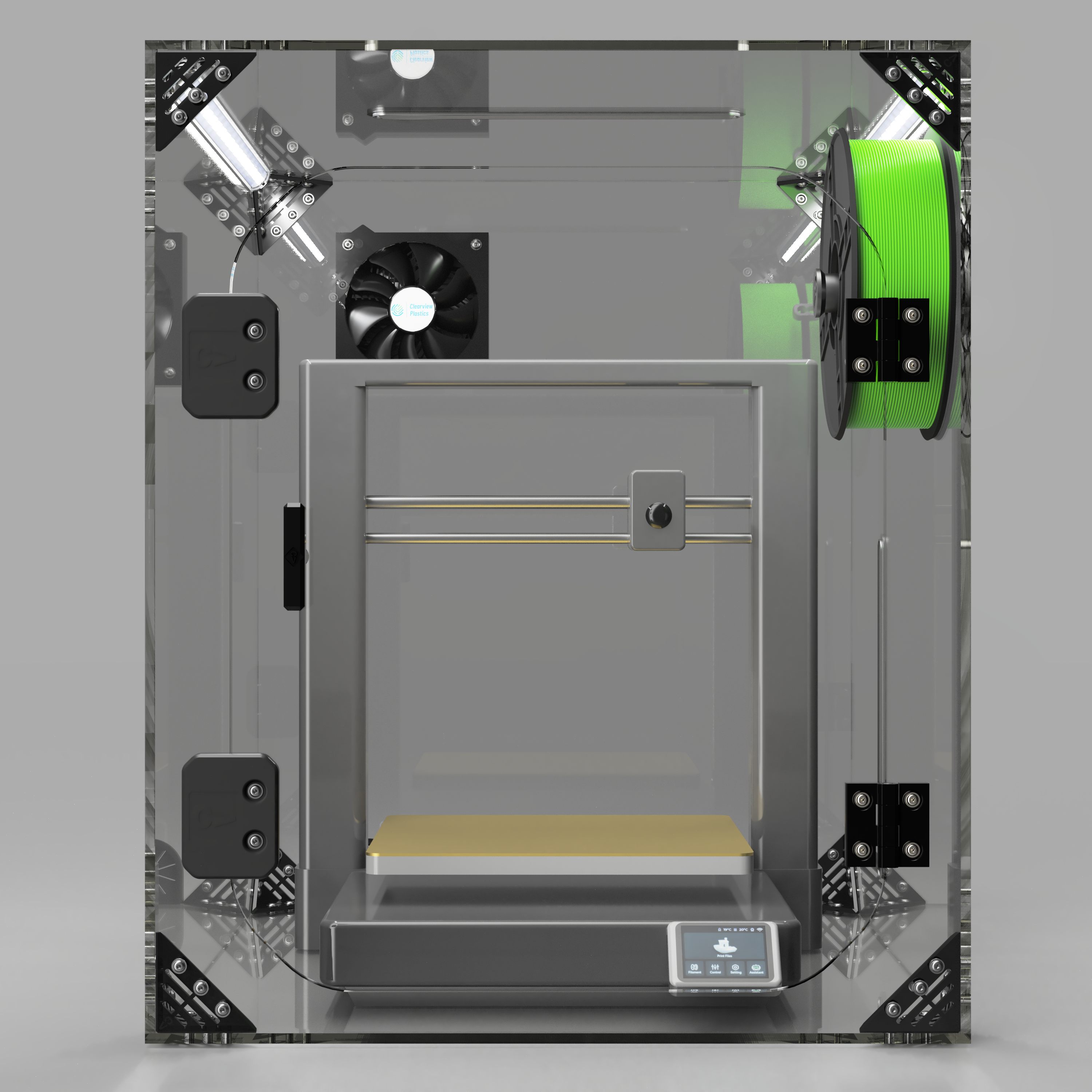

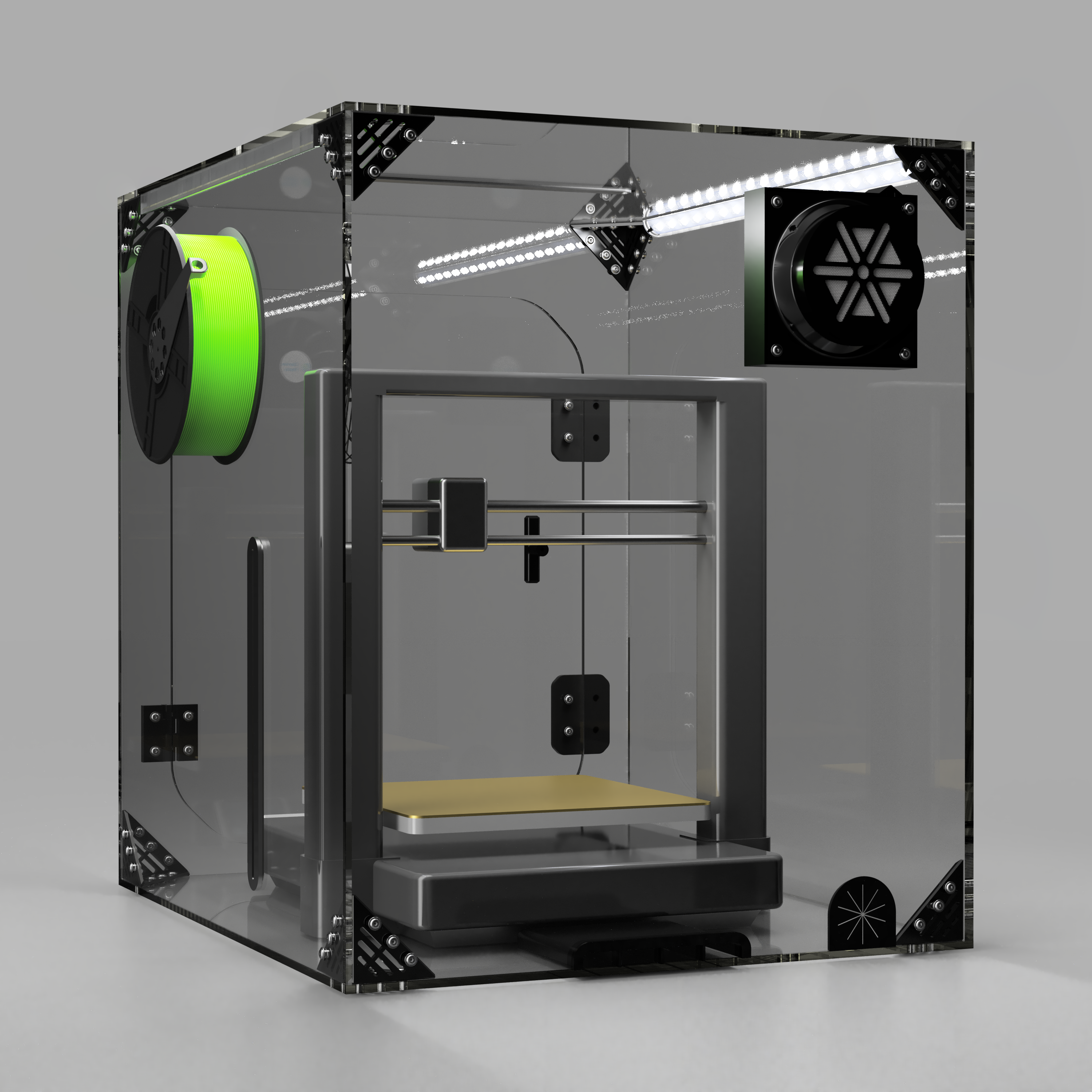

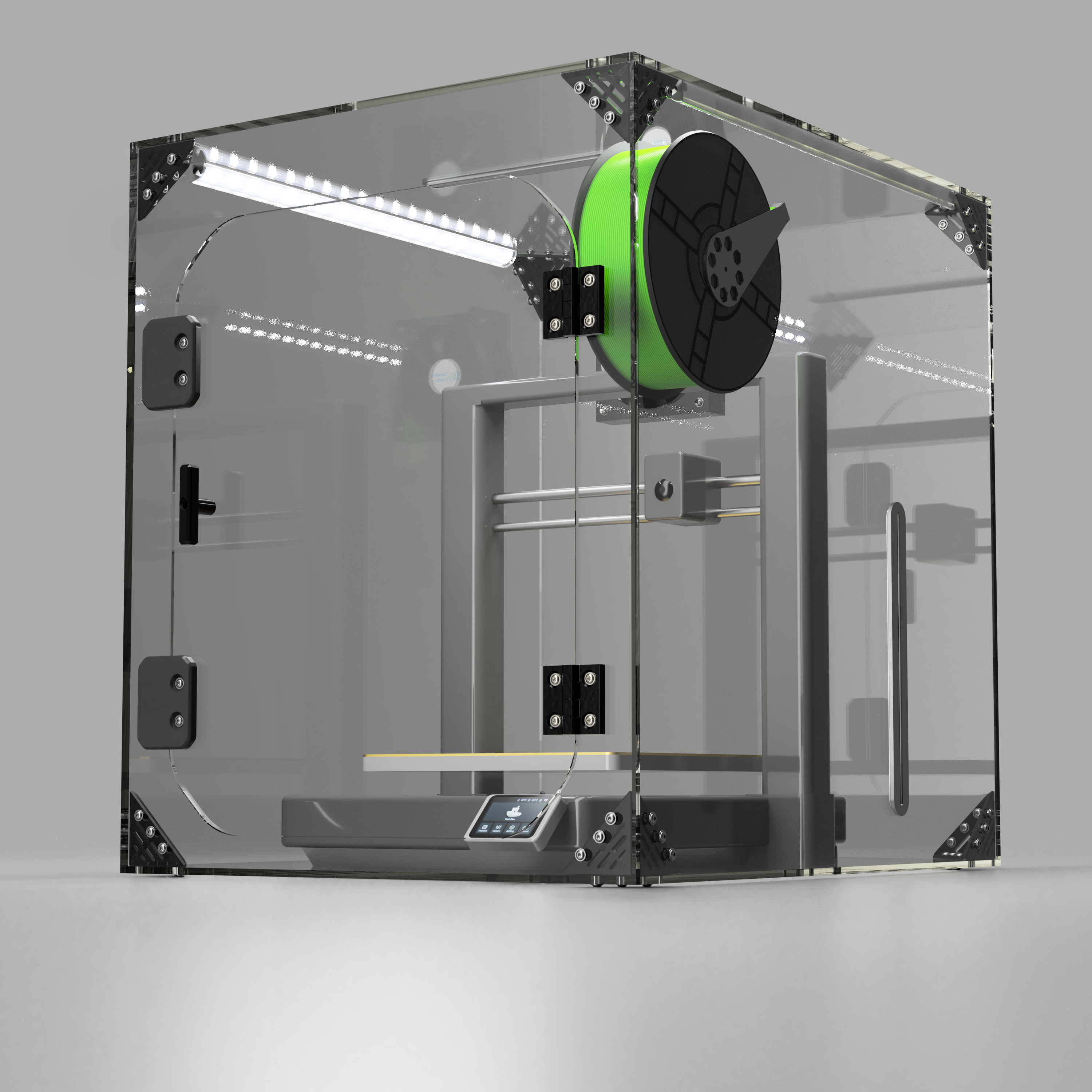

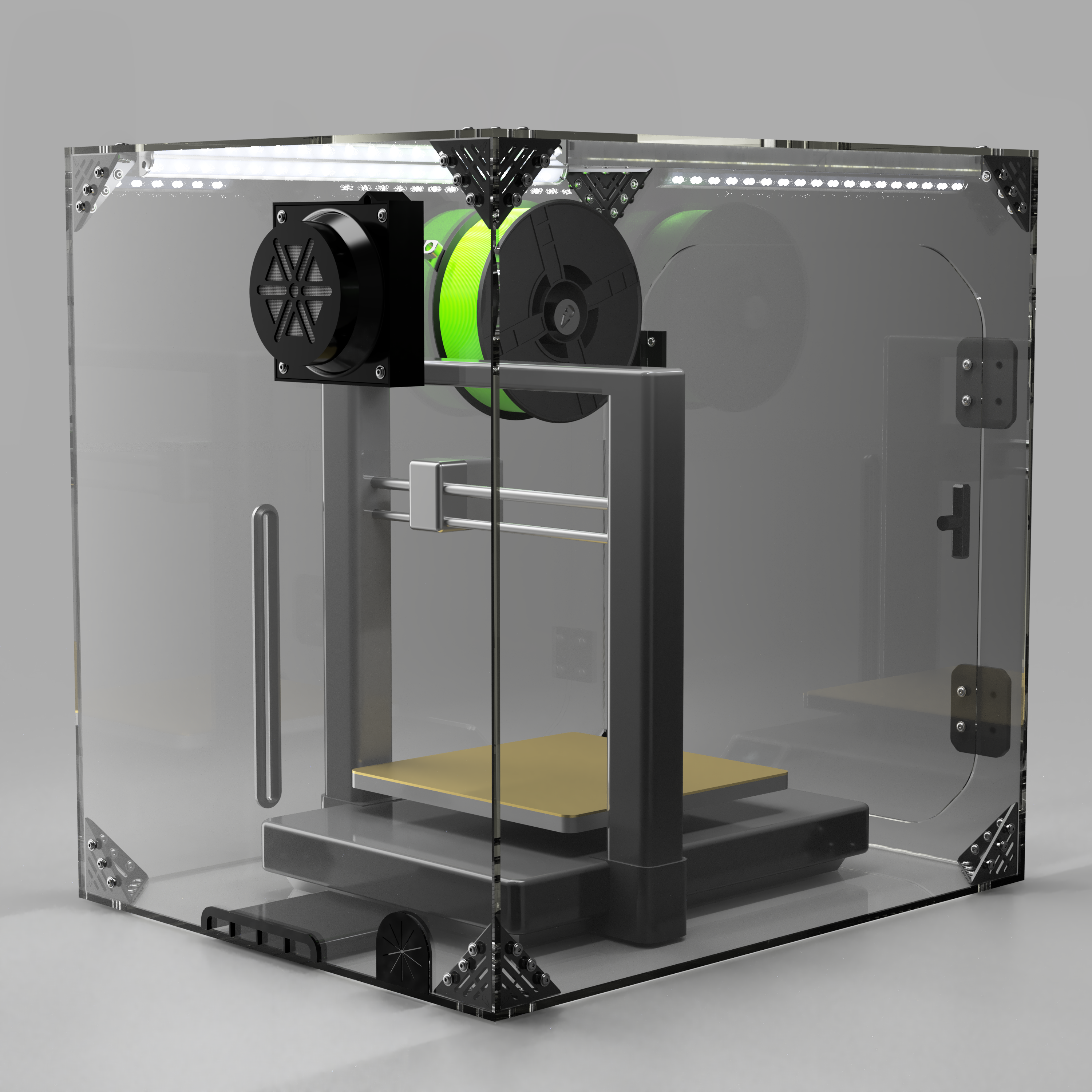

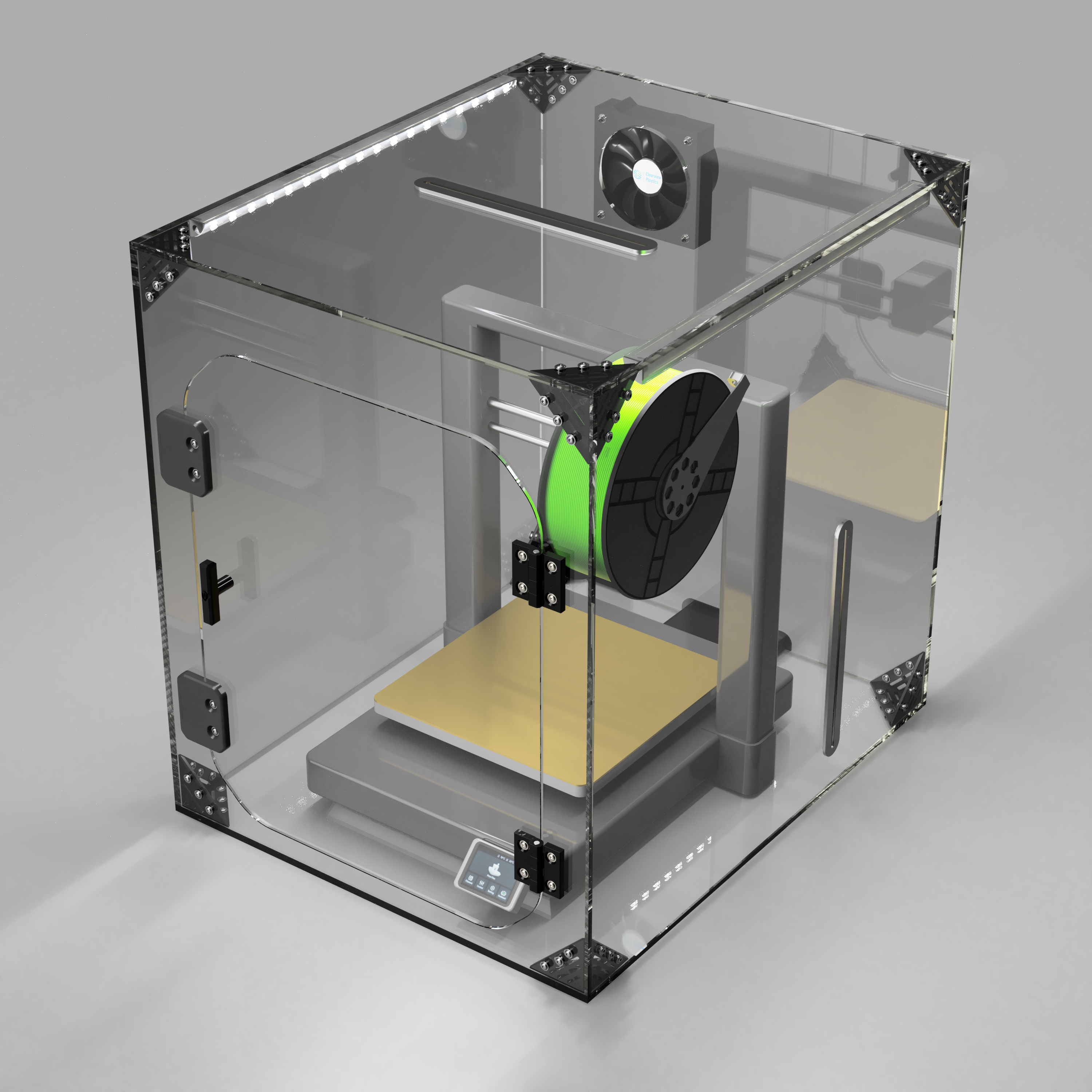

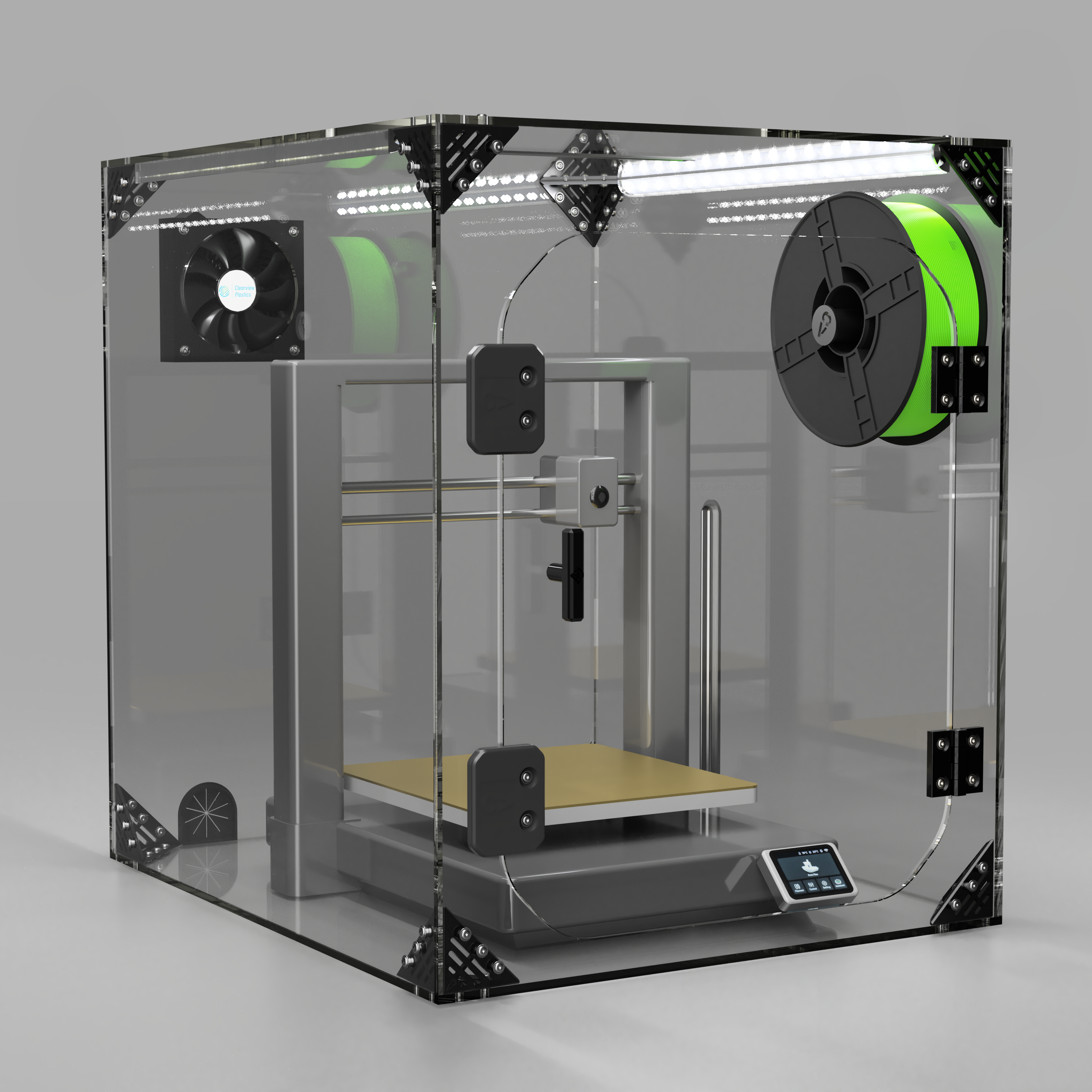

Photos on this page are reference renders of our Ender 3 V3 enclosure, the same design family. The Mega enclosure is the same construction at the size below.
Enclosure Option Walkthrough
Air Filter Options
Size and fit
Suggested size: 31" W × 42" D × 32" H (787 × 1067 × 813 mm). Creality lists the Ender 3 V3 Mega Combo at 590 × 588 × 697.5 mm (23.2" × 23.1" × 27.5"). The Mega is a bed-slinger: dual Y motors drive the 420 mm plate front to back, so the box has to hold the plate at both ends of its stroke, not just the frame. The width leaves room at the sides for cables and the filament path; the height clears the gantry and top-mounted spool hardware.
Will it fit your table?
| Enclosure (W × D × H) | Min. table top (W × D) | Min. load rating |
|---|---|---|
| 31″ × 42″ × 32″ 787 × 1067 × 813 mm |
33″ × 44″ | 150 lb |
- It's 42″ deep, deeper than almost any stock desk or workbench. Measure your surface before ordering, or plan a deeper top.
- The load rating covers everything on the table: the printer at about 51 lb as a Combo, the enclosure, spools and accessories.
- Leave a few inches behind for the exhaust and the power cable. Don't push it tight against a wall.
Filament path, CFS nano and TPU
The CFS nano and your spools run outside the enclosure, on top or beside it, and feed in through the filament port, so the chamber stays clear and spool swaps don't mean opening the door mid-print. If you print TPU, note that Creality runs TPU from direct spool feeding only, not through the CFS nano or the relay module. Plan a short, gentle path from the spool to the extruder for those jobs; the port takes a Bowden tube to guide it.
What's included
- Panels: 1/4" commercial-grade panels are our recommendation at this size. Full clear acrylic is the best all-round choice; smoked acrylic, polycarbonate (for chambers held above 60 °C) and UV-blocking amber are available. 5-sided design, with a 6th base panel as an option.
- Hardware: every screw, nut and connector for assembly. The heavy-duty metal hardware upgrade is worth it on an enclosure this large.
- Printed parts: pre-printed black PETG parts, or the STL files to print your own.
- Doors and access: a frameless front door and top hatch with magnetic latches, and a wide rubber grommet for power and USB.
ASSEMBLY INSTRUCTIONS
Air management
- Exhaust HEPA filter with charcoal, venting outside your workspace.
- Recirculating HEPA filter for when there's no window to vent to.
- Intake HEPA filter so only clean air enters the enclosure.
- Exhaust fan with a housing for a 4" hose, and our window insert for venting straight outdoors.
Options
LED lighting, heavy-duty metal hardware, 6th base panel, vibration dampening feet, Bowden tube by the meter, and the venting and filter options above. All are selectable when you configure the enclosure.
Shipping and lead time
Coming soon. Once the size is confirmed against the printer, kits ship flat-packed within our standard 10 business days.
CNC-routed in Rocklin, California by a small, owner-run shop. Every enclosure carries a 100% satisfaction guarantee and a 1-year warranty against manufacturer defects. Every printed part is in the file repository you get after ordering, including future add-ons and mods: if one breaks or gets revised, print a new one.
Who We've Worked With
Need more information on printing with enclosures? Check these links:
- Benefits of printing with an enclosure
- 3D printing health: NIOSH guidance
- Additional health studies
- Getting better prints with an enclosure
Questions
Will it fit the standalone Ender 3 V3 Mega as well as the Combo?
Yes. Both are the same printer; the Combo adds the CFS nano, which sits outside the enclosure.
Why would I order polycarbonate vs. acrylic?
Panel choice is the only feature you can't change after the fact. 1/4" is the best upgrade we offer; if you change nothing else, change that. Polycarbonate is impact resistant, acrylic is scratch resistant. Acrylic handles almost every filament, including ABS, ASA and PC. Polycarbonate is only needed where you hold a chamber above 60 °C.
Why would I pick a recirculating filter over an intake / exhaust setup?
It depends on what you print. For PLA and PETG, intake and exhaust lets you set the chamber temperature and vent fumes straight outside through a 4" hose. For ABS, ASA and other high-temperature filaments, the recirculating filter keeps fumes and odor down with activated charcoal and HEPA while holding chamber heat.
What is your return policy?
30 days. Unused, undamaged panels with the protective masking fully attached are eligible for a full refund, less return shipping. If panels are damaged after shipment or the masking has been removed, we can't offer a refund. To check fit and finish before you commit, assemble with the masking still on.
Why do the photos differ a little from each other?
We improve these kits continuously, and the renders are updated before the photos are. Function stays the same or gets better. For the clearest picture of the current version, go by the renders.
