Snapmaker U1 Enclosure Table — Guaranteed-Fit Workstation Stand

Side doors are only a feature if they open.

The U1 enclosure carries 19-inch doors on the left and the right panel — full side access to the machine. Then it gets parked in a corner, one door against the wall, and half the reason you bought this enclosure is sealed shut for good.

A footprint check isn't a fit check. The base is 23.75 × 23.5 inches, but the working machine needs swing room on both flanks — and it needs them at a height you can actually reach into, because this enclosure stands 31.5 inches tall on its own.

A table that fits the enclosure but kills the doors didn't save you anything. This one is sized for the machine you actually bought: footprint, swing clearance, and a 28-inch height that keeps the top of the enclosure below eye level.

Cut to your enclosure. Not to a category.

The top extends exactly half an inch past the enclosure on every side. Enough overhang to level, latch, and grip. Not so much that you’ve bought a piece of furniture you have to find room for.

The U1 enclosure is built tall to clear the toolchanger’s top hat, so there is no short version — and one table: 28 inches, two lower than a standard bench. A 31.5-inch enclosure on a 30-inch bench puts the top at 61.5 inches, above eye level for most adults. On this frame it lands at 59.5, where your hands and eyes already are.

Both 19-inch side doors swing free: the top stops half an inch past the enclosure, so nothing on the table edge sits in a door’s path. Leave the doors room on the wall side when you place it.

See the full enclosure table fitment guide for every machine we build for.

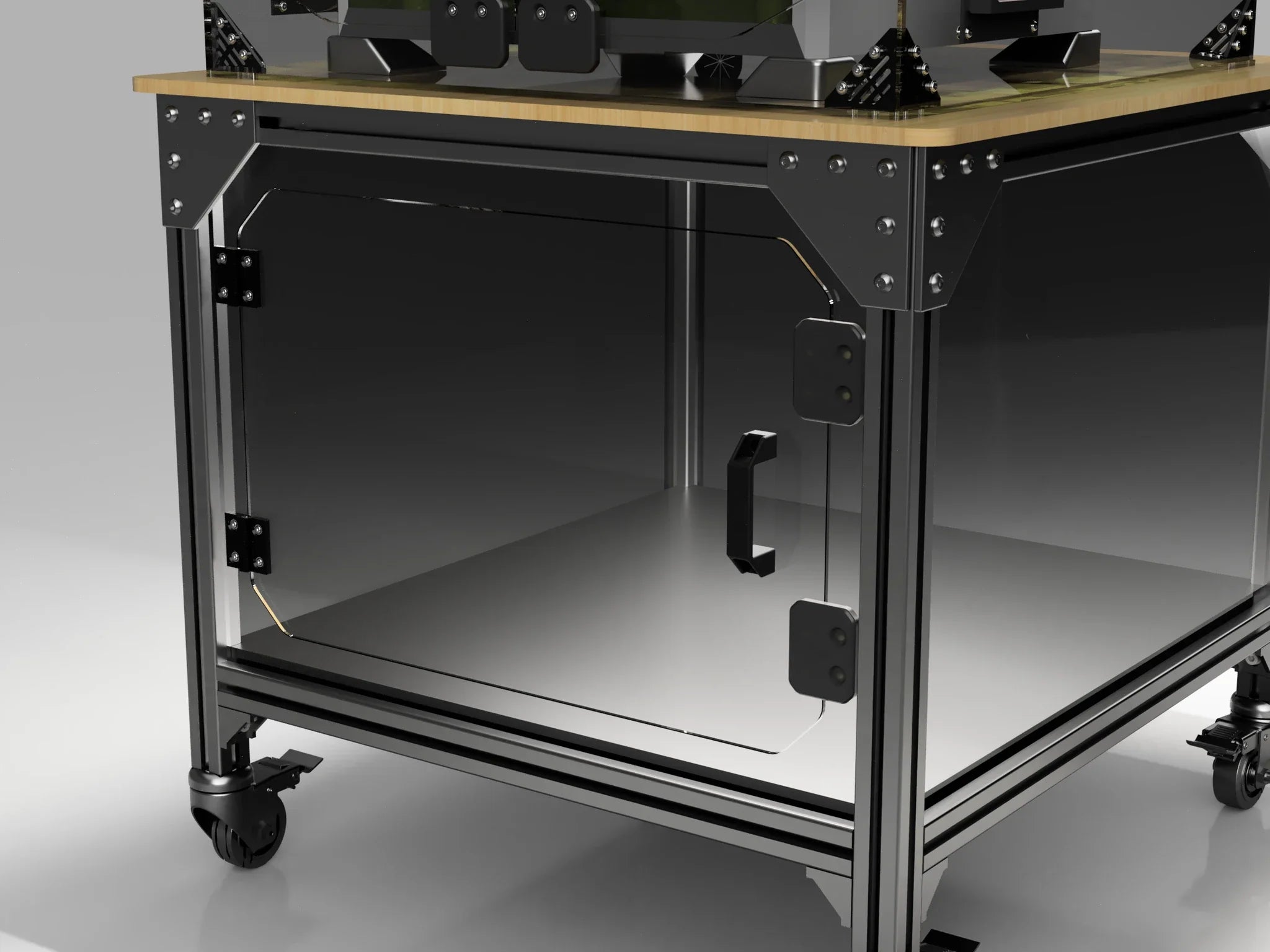

Built on a robust black aluminum extrusion frame with cast corner brackets and M8 hardware — the same structural system used for CNC machine frames and industrial workstations. The top is 3/4″ melamine: flat, sealed, wipes clean, and won’t telegraph a heat cycle the way a raw wood top will.

About these photos, and about the fit

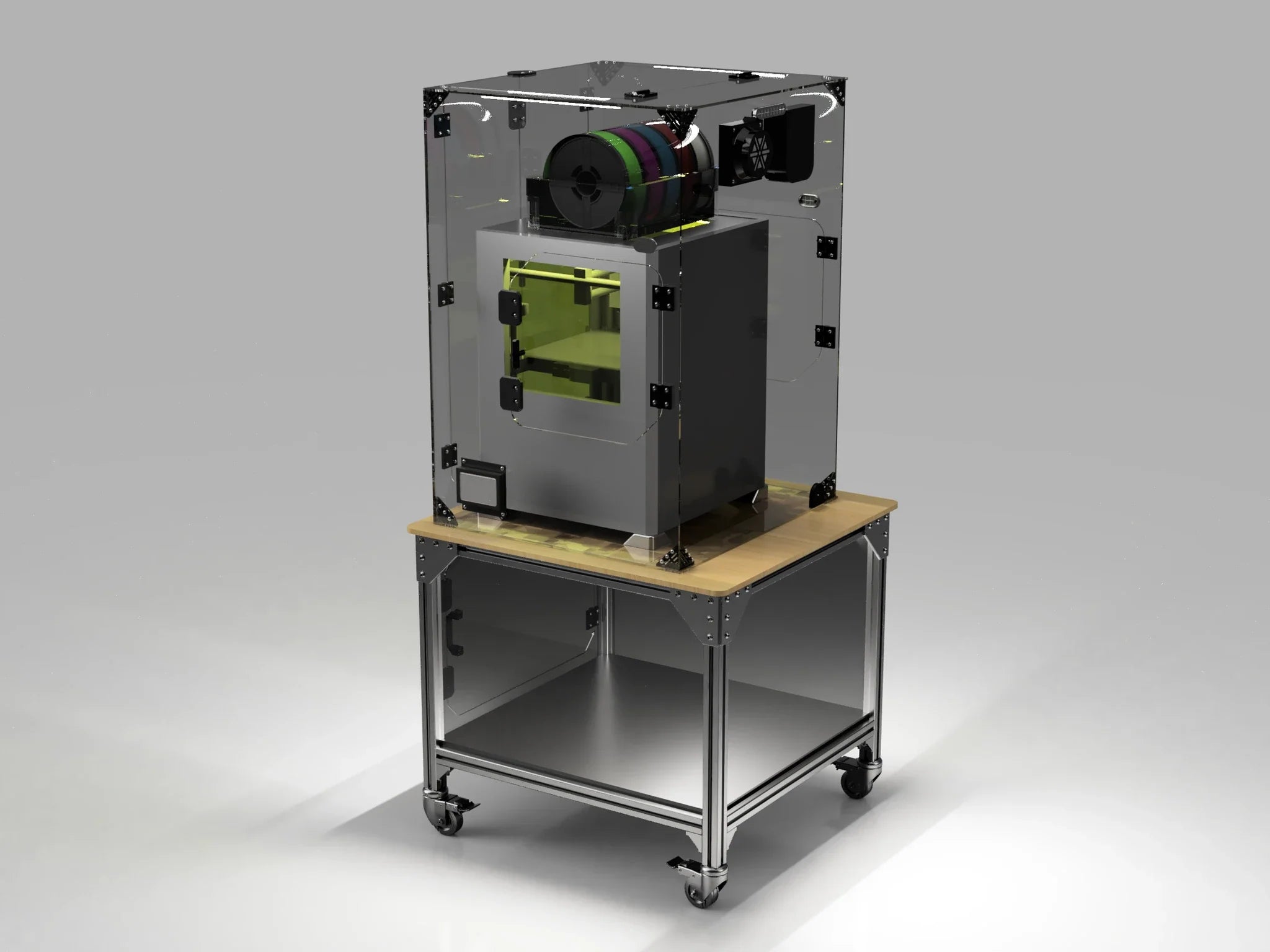

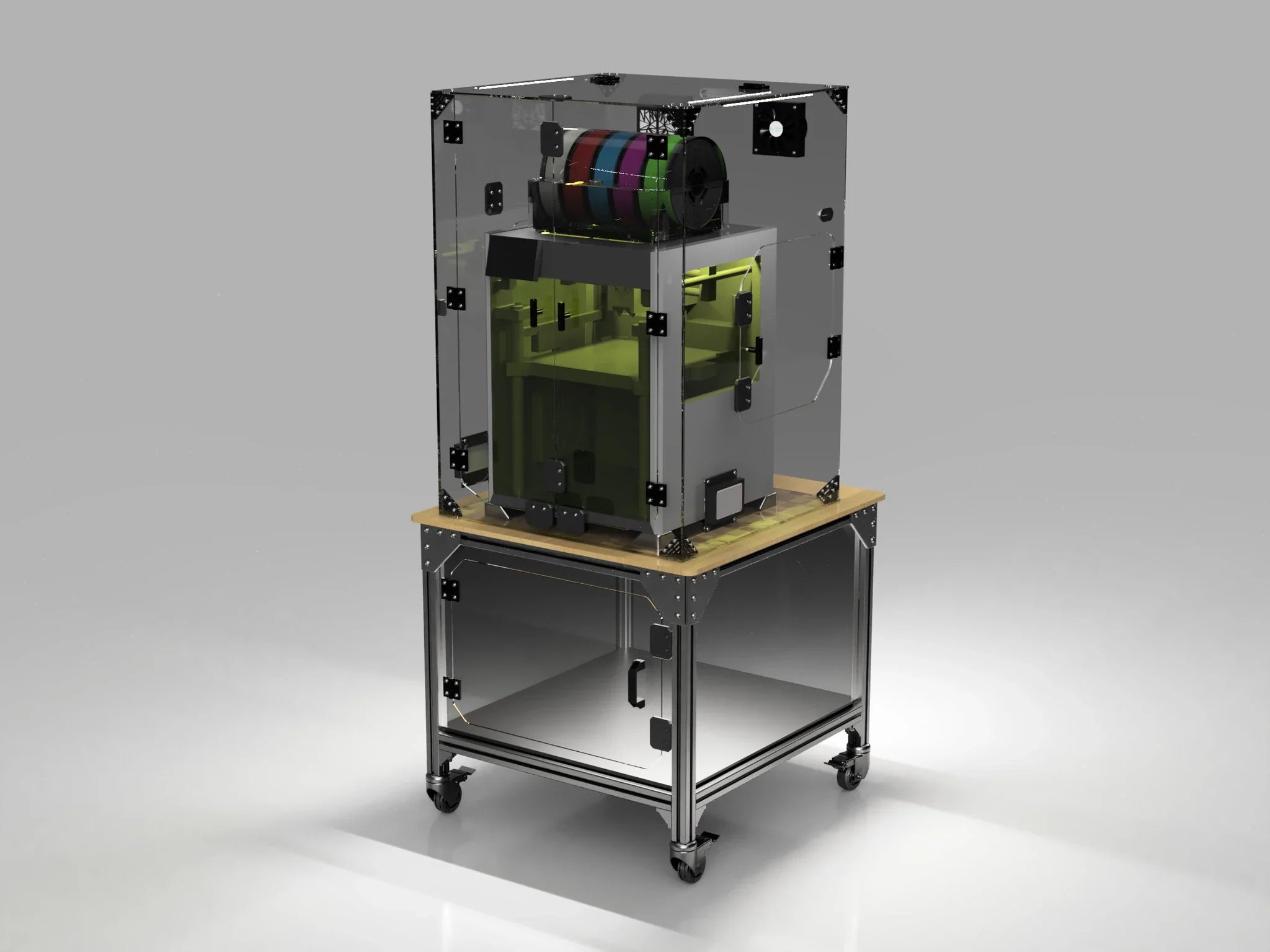

The renderings on this page show the workstation table as a system — frame, top, storage cabinet kit and casters. The cabinet kit and casters are options; the standard table is the open frame with leveling feet. The images are general-fit images used across the table line, not a render of this exact SKU. The geometry is what’s specific to you: the dimensions listed above are the dimensions you receive, and the top is cut to sit half an inch proud of the enclosure on every side — +1″ in width, +1″ in depth, every time.

One note on finish: the renderings show a wood-tone top. Yours ships as 3/4″ edge-banded melamine — the geometry in the images is right, the surface is melamine.

Rated for what’s actually on it

A multi-color machine, its enclosure, and the filament feeding it put steady weight and constant motion on one small footprint. This frame is specified for a 120 lb working load with margin for motion — because the number that matters isn’t what the table holds sitting still, it’s what it holds while a fast machine throws mass around on top of it.

Four leveling feet, standard on every table, handle a garage slab that isn’t as flat as you think it is. A machine that rocks a millimeter is a machine that ghosts.

The air you’re standing in

An enclosure contains fumes and ultrafine particles. It does not make them disappear. If you run ABS, ASA, or nylon, where the exhaust goes, how the intake breathes, and whether the hose has a clean run to a window or a filter are workspace decisions — they get solved at the bench, not in the slicer.

This table is built to be part of that system: an open frame that never pinches a hose, T-slot channels on every rail for cable and duct management, and a footprint sized so the enclosure — not the table — decides how close you can sit to the wall. Give the 4-inch exhaust a clean run behind it and you’re done. If you’re running ABS, ASA, or nylon anywhere near where people sit, this matters more than the print quality argument does.

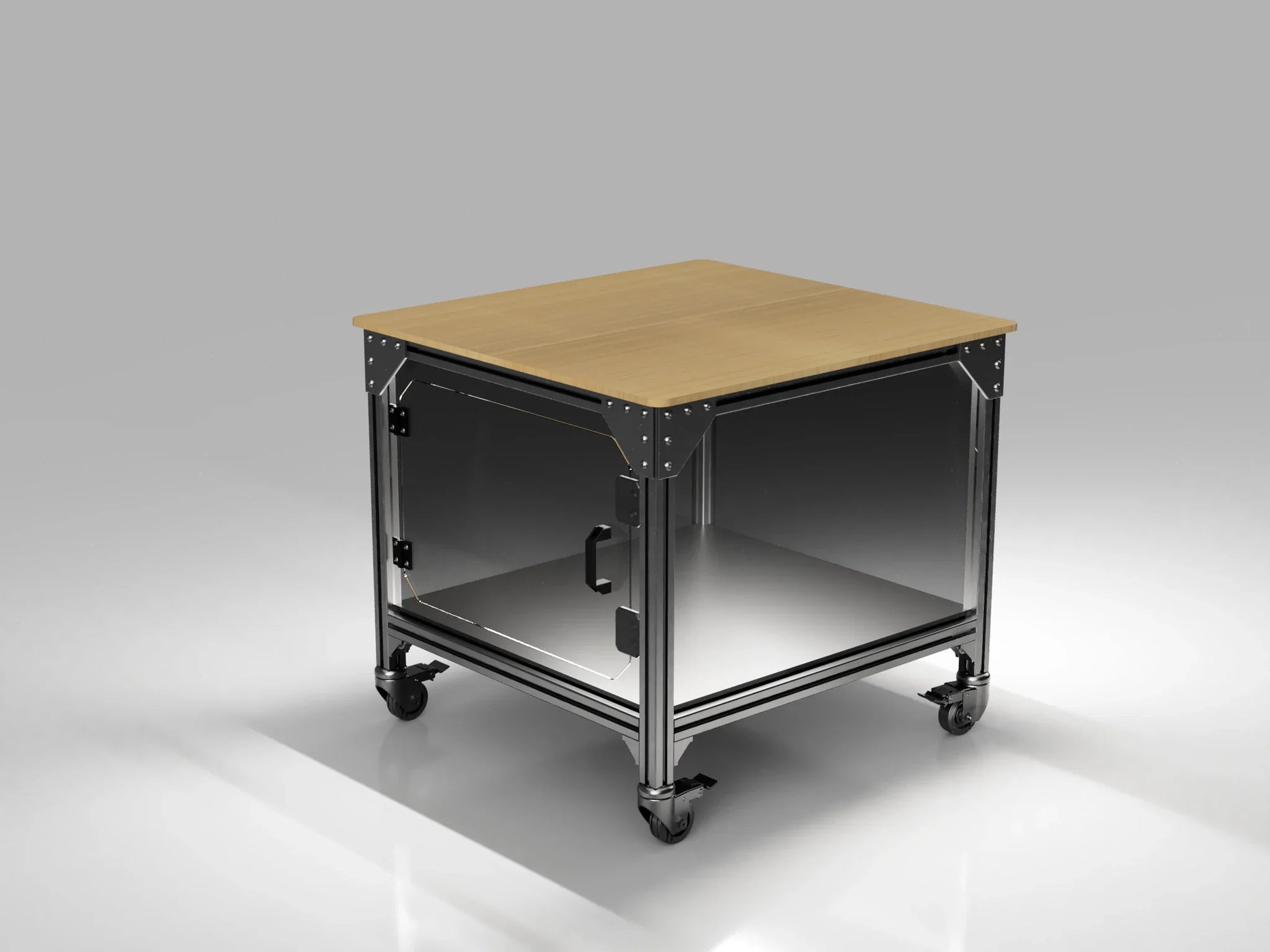

Option: storage cabinet kit

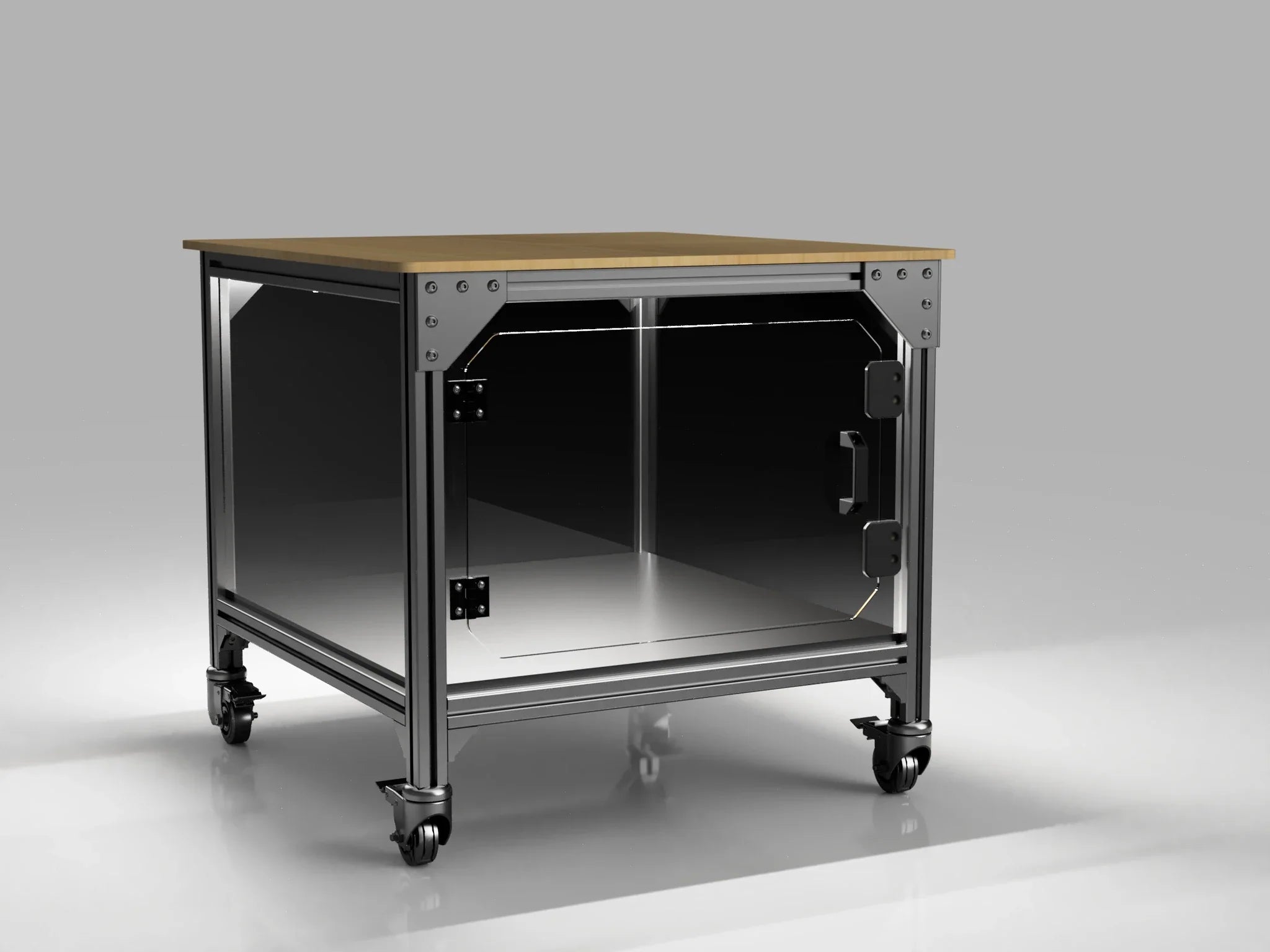

Every table ships with the shelf rails already in the frame. The storage cabinet kit bolts onto them: a melamine shelf, smoked acrylic back, ends and front, and a laser-cut door on T-slot hinges with a pull and magnetic catch. The cabinet is 18.7″ clear. Filament, dryers, nozzles, tools and spares stay dust-free and out of sight. Add it with the table or bolt it on later; it uses the same slots.

Option: keyed cam lock

Available with the cabinet kit, keyed alike across your tables. If you run this machine in a classroom, a shared lab, a makerspace, or any shop where more than one person walks past it, you already know why that’s on the list. Consumables walk. This is the version of the answer that doesn’t involve a plastic bin and hope.

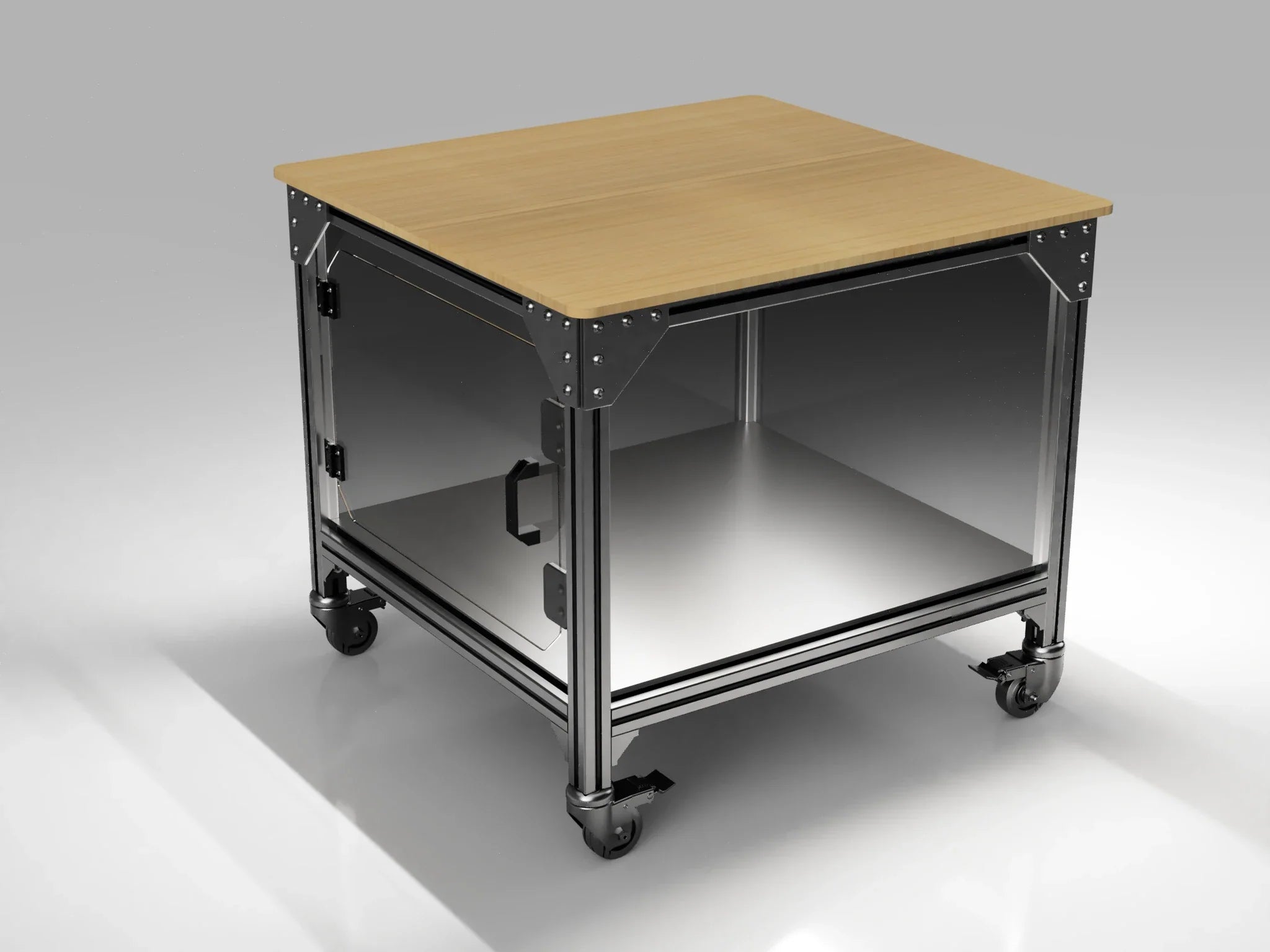

Option: locking casters

A set of four in place of the leveling feet. The workstation rolls between rooms and out from the wall for cleaning — a library sharing one printer across programs, a classroom, a shop floor that gets swept — then locks where you leave it. The shelf rail sits low on the legs, so there’s almost no unbraced leg to flex when a caster meets a door threshold. Table height stays the stated height either way.

It outlives the printer

Here’s the part worth thinking about before you compare prices.

Your U1 will not be your last printer. Two years from now there’s a faster machine with a different footprint, and the bench you bought for this one is either the right size by luck or it’s scrap. Extrusion doesn’t work that way. Every surface of this frame is a mounting rail. Re-drop the T-nuts, move a rail, add a shelf, hang a spool holder, bolt on a monitor arm, restretch it for the next machine. It reconfigures because it was designed to be reconfigured.

You’re not buying a table for a printer. You’re buying the bench that survives the next three.

Ships flat. Assembles with one hex key.

Every extrusion arrives cut to final length, deburred, and labeled, with the leg bores already tapped for the feet or casters. The top comes CNC-cut with the mounting holes counterbored, and the shelf rails are already in the frame, ready for the cabinet kit. Brackets, T-nuts, and hardware are counted and bagged by step. Flat-pack keeps the freight sane and keeps the price honest — you’re paying for aluminum and precision, not for air in a box.

Assembly is straightforward and takes one person about two hours. No welding, no drilling, no cutting. If you can build the enclosure, you can build this. Prefer it ready to run? Choose the assembled option and it arrives built.

Made in Rocklin, California

Cut, kitted, and shipped by the same shop that makes your enclosure. Same tolerances, same people, same phone number when you have a question. Backed by our 100% satisfaction guarantee and a 1-year warranty against manufacturer defects.

Not running a U1? We build these for every enclosure in our catalog, and for machines that aren’t. Send us your model and we’ll confirm the exact footprint, height, and load rating before you order.
