Clearview Plastics · UV/Fiber Galvo Laser Marker Engraver Enclosure with Laser viewing Window (Universal Fit)
An open fiber, MOPA or UV galvo marker is a Class 4 laser marking in the open. Stray light and reflections come off every part, fume and particulate come off every mark, and all of it shares the room with whoever is working nearby.
The Clearview enclosure takes the marking field out of direct line of sight, gives you one view in through an OD6+ window matched to your laser, and contains the fume so the exhaust can carry it outside or to a filter. It is manufactured and kitted at our workshop in California.
It is built to be the engineering control a workplace laser safety program asks for first under ANSI Z136.1 and the OSHA guidance that points to it: opaque aluminum composite panels, wavelength-rated viewing, gasketed doors and a planned exhaust path. Side and top door options turn it into a pass-through for a flexible, fast workflow.
Four reasons to enclose it
Fiber and MOPA markers are Class 4 lasers, and stray light and reflections are the hazard. The enclosure removes line of sight to the marking field, and the only view in is an OD6+ window matched to the wavelength: green for fiber at 1064 nm, amber for UV at 355 nm. Both are transparent, so you watch the job with the door closed.
Marking metal, anodizing and coatings puts fine fume and particulate into the air right at the lens. The enclosure contains it at the source, and the exhaust carries it outside or to a filter.
Marker, controller, fixtures and finished parts sit in one enclosed station instead of spread across a bench. Residue stays on panels you can wipe, and the setup reads as production equipment.
Drafts and dust change what the beam meets at the surface. Enclosed and vented, the field stays clean and consistent from the first part to the last, and less residue reaches the lens and the optics you invested in.
This enclosure does not reclassify your laser. A Class 4 machine stays Class 4, so OD-rated eyewear and your controlled-area procedures still apply. For a certified Class 1 solution, see the WorkSafe line.
Who it's built for
Serialized parts, client work and production runs, where every mark is part of the spec.
Staff at the next bench, students in a lab, or anyone who walks past while it runs.
A shop, lab or school that answers to a safety review.
Fortune 500 companies, government labs and top universities run Clearview enclosures. So do physicians, attorneys, executives and senior engineers.
If your practice or lab answers to a safety review, the five-document Safety Documentation Pack is written for exactly that conversation.
Documents
The paperwork a safety review asks for
A seven-page Product & Safety Overview written for a facilities or EHS reviewer: the hazard, the construction, what arrives, the air, a specification table, and exactly what this enclosure does and does not claim. And a sample of the five-document Safety Documentation Pack.
Download the Product & Safety Overview (PDF) See a sample of the Safety Doc Pack (PDF)
No email required · Fiber Laser (1064 nm) Safety Documentation Pack

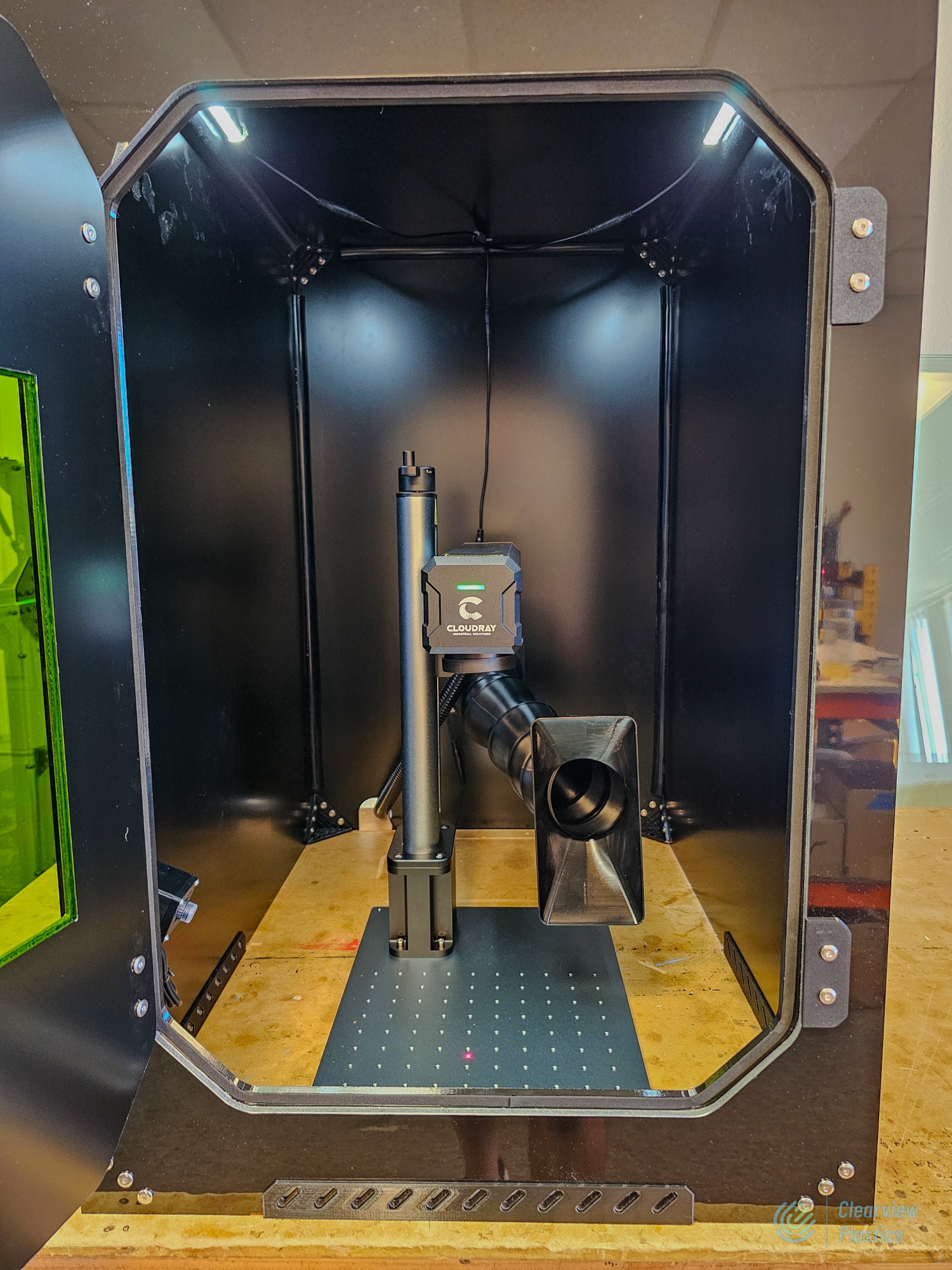

A set-over enclosure for desktop fiber, MOPA, and UV galvo laser markers. It drops over the marker and its controller, so the machine stays bolted to your bench. Panels are 1/4" aluminum composite — opaque and rigid, not clear acrylic. The door is gasketed as standard, and a DIY seam sealing kit is available as an add-on. Assembly takes 60–120 minutes with a Phillips screwdriver and a 2.5 mm hex wrench.
Most buyers come to this enclosure because of a workplace safety review. ANSI Z136.1, the consensus standard for safe use of lasers, and the OSHA Technical Manual (Section III, Chapter 6) that points to it, put engineering controls first: a protective enclosure around the beam, viewing through a filter rated for the wavelength, and local exhaust for laser-generated air contaminants. This enclosure is built to be that control in your laser safety program. It does not reclassify the laser and is not certified to ANSI Z136.1.
The panels are 1/4" aluminum composite. They are opaque to infrared wavelengths, so a stray 1064 nm reflection stops at the panel, and the sheet is industrial grade: a durable, robust build made to last through high-volume work.
Every door is gasketed to help keep fume and particulate inside the chamber, where the exhaust can take it. The gasketing frame also blocks light: it sits behind the door seam and laps past it on both sides, with the gasket between frame and door, so light that reaches the gap lands on frame and gasket instead of passing straight through.

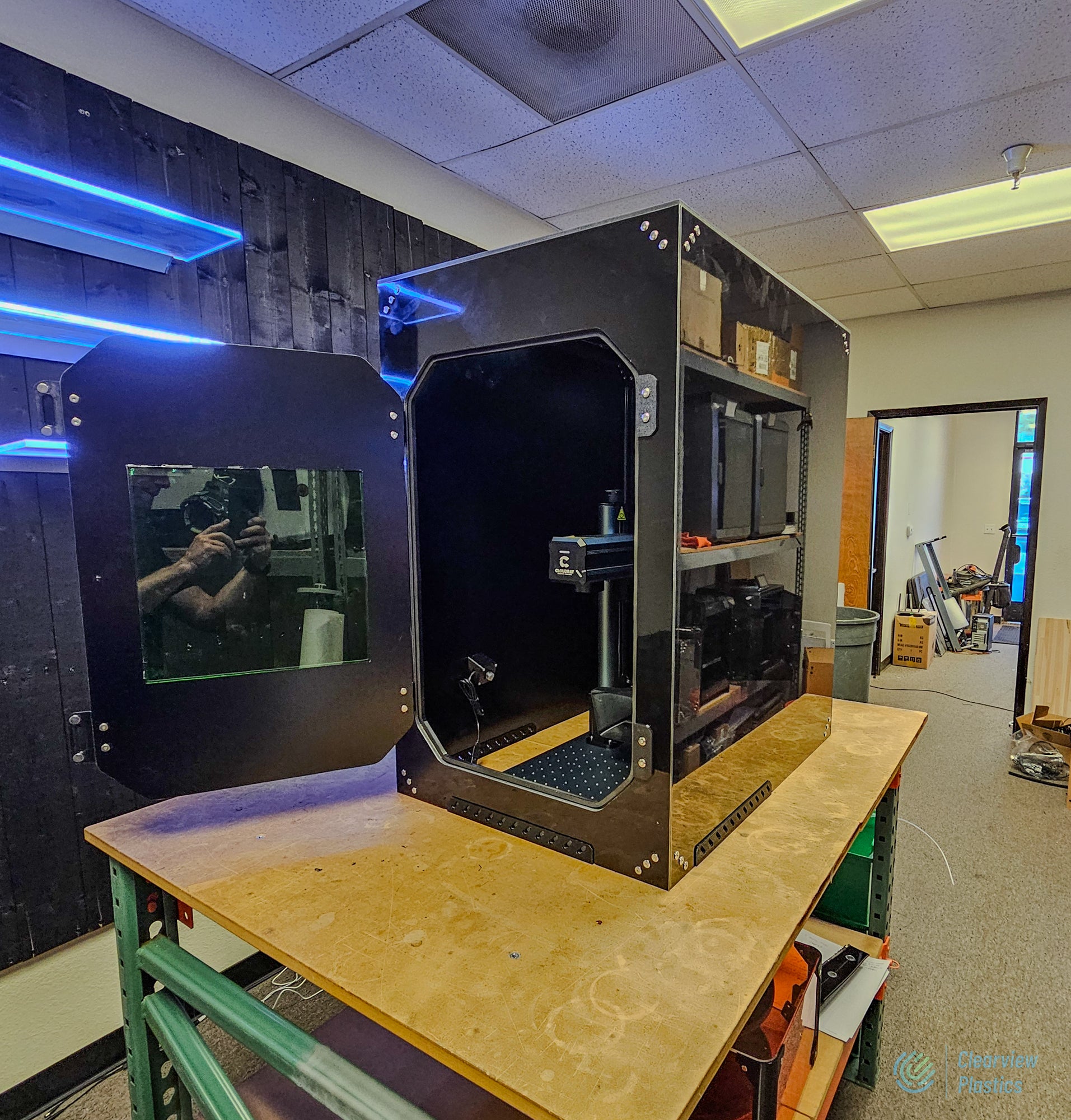

Add one or two side doors and a top door (Large and up). Each is the same framed, gasketed door as the front. Two side doors make a pass-through for long stock, and the top door takes tall parts and overhead loading, so parts move through the station in the direction the work already flows: an optimal, flexible and fast workflow.
Where you cannot duct outside, the Donaldson BOFA AD 350 is a fume extractor built for laser marking, coding and engraving. Donaldson BOFA rates it at up to 223 CFM (380 m³/hr at 96 mbar) with three-stage filtration: a DeepPleat pre-filter for coarse dust, a HEPA stage rated 99.995% at 0.3 micron for fine particulate, and activated carbon for gas and odor. It connects to the enclosure's 4" port through a 100 mm hose. A segmented, stay-put exhaust arm puts the intake a few inches from the mark and holds the position you set, so fume is taken where the plume starts.
The enclosure pairs with the UV / Fiber Galvo Laser Enclosure Table. The standard table has a 23.5 × 31.5" top at 32" tall and carries every enclosure size. The new double-width complete workstation has a 46 × 31.5" top, with room beside the enclosure for the AD 350, the computer and the parts waiting their turn. Both come as an open frame or with a storage cabinet, flat-packed or delivered assembled.
Two PDFs, no email required: the Product & Safety Overview, a seven-page summary written for a facilities or EHS reviewer, and a sample of the Safety Documentation Pack. The full pack for your laser is the Fiber Laser (1064 nm) Safety Documentation Pack.

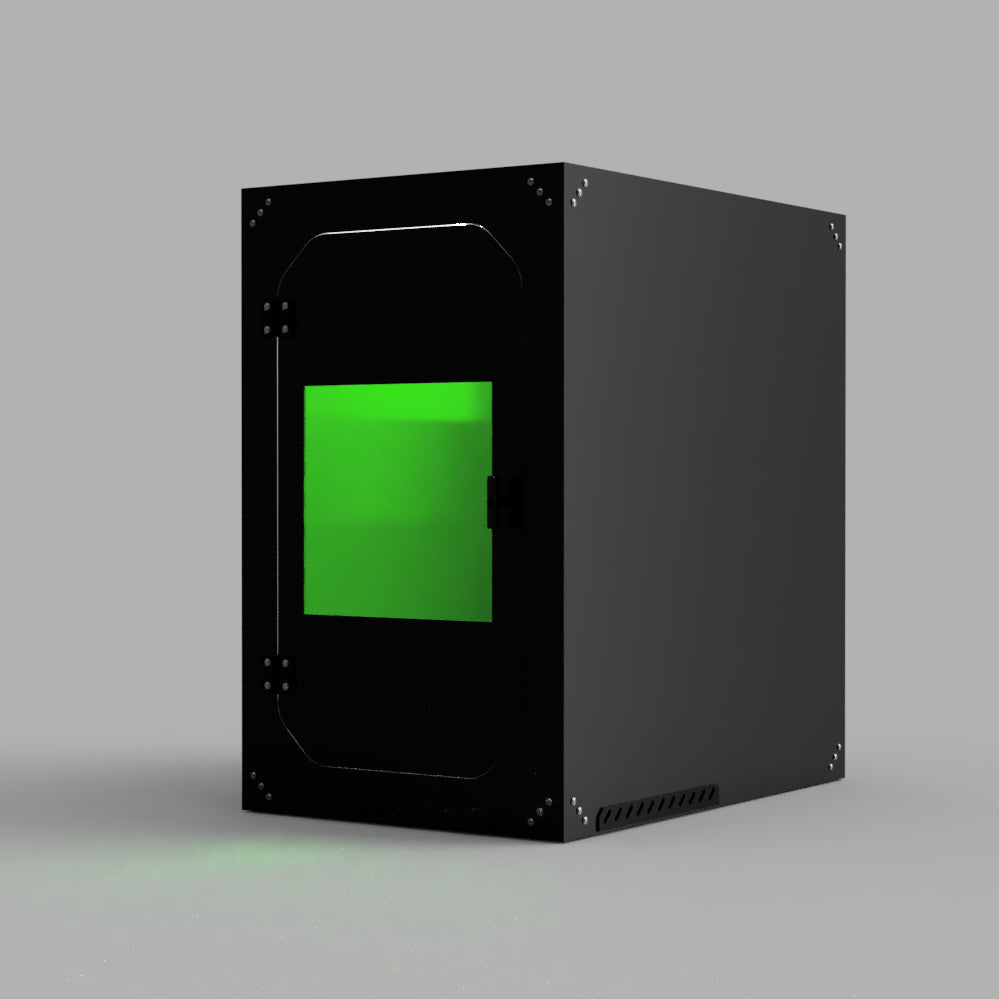

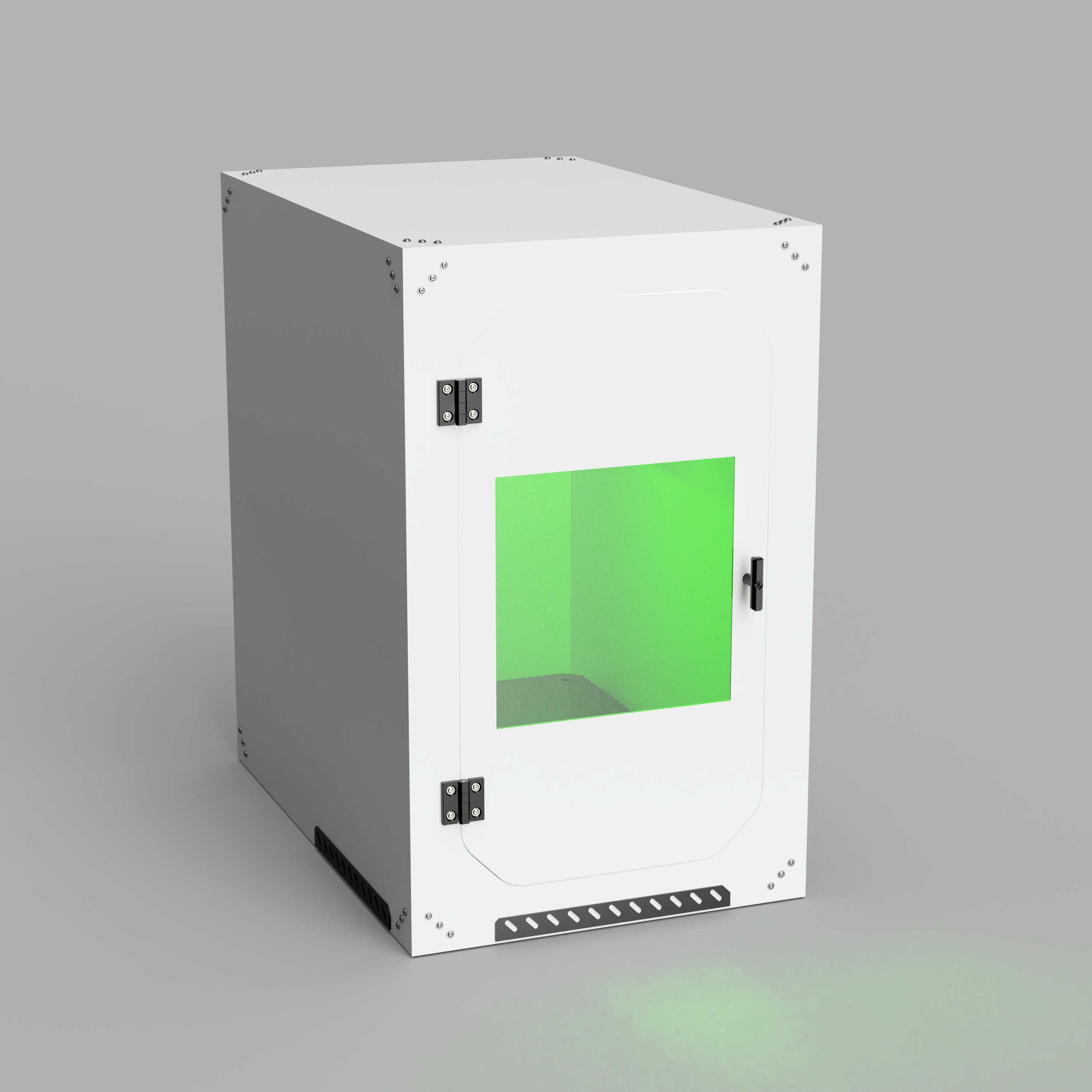

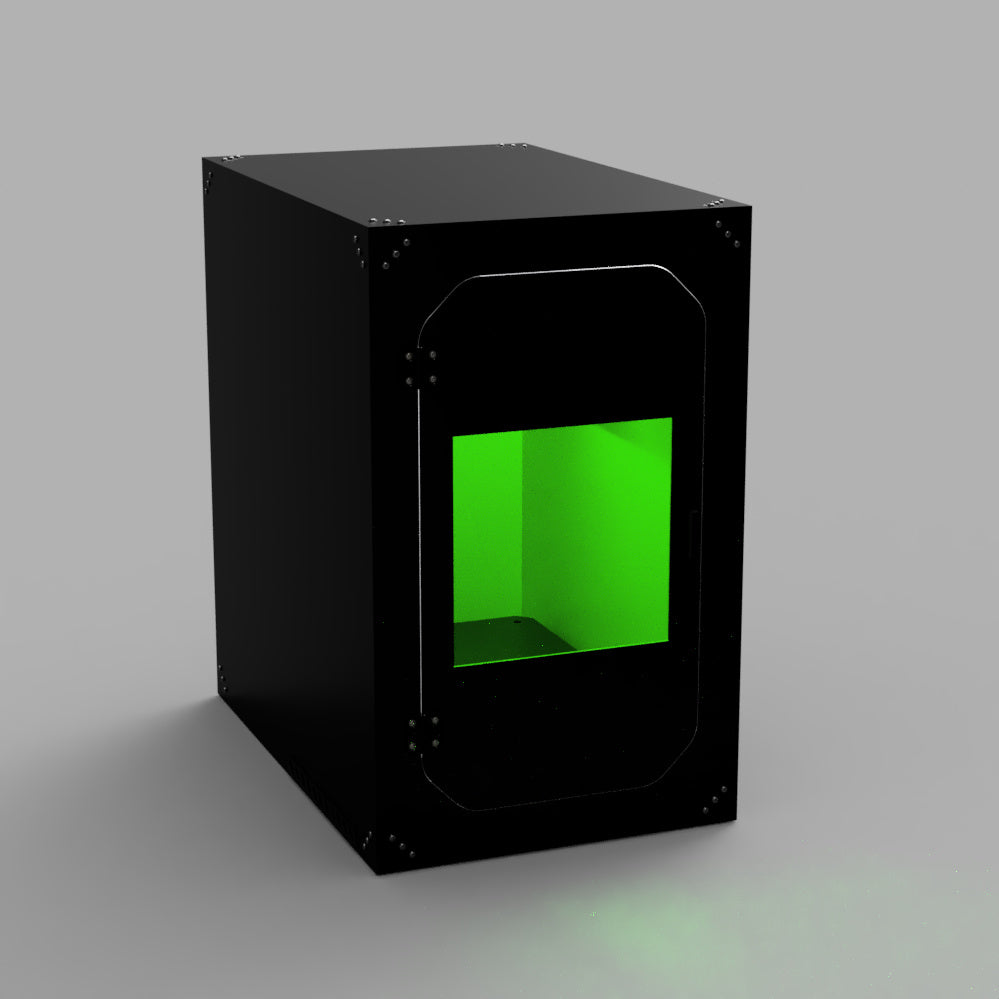

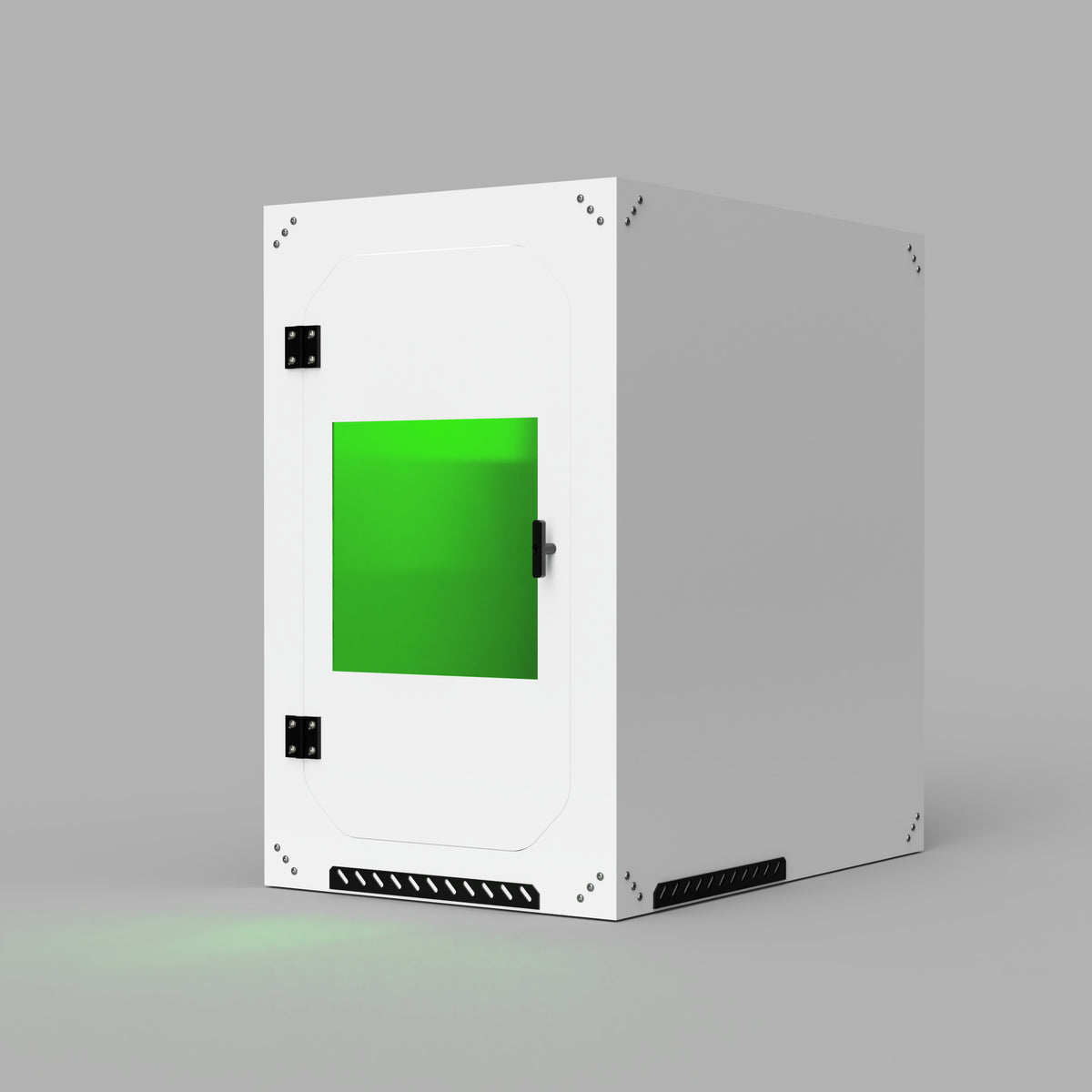

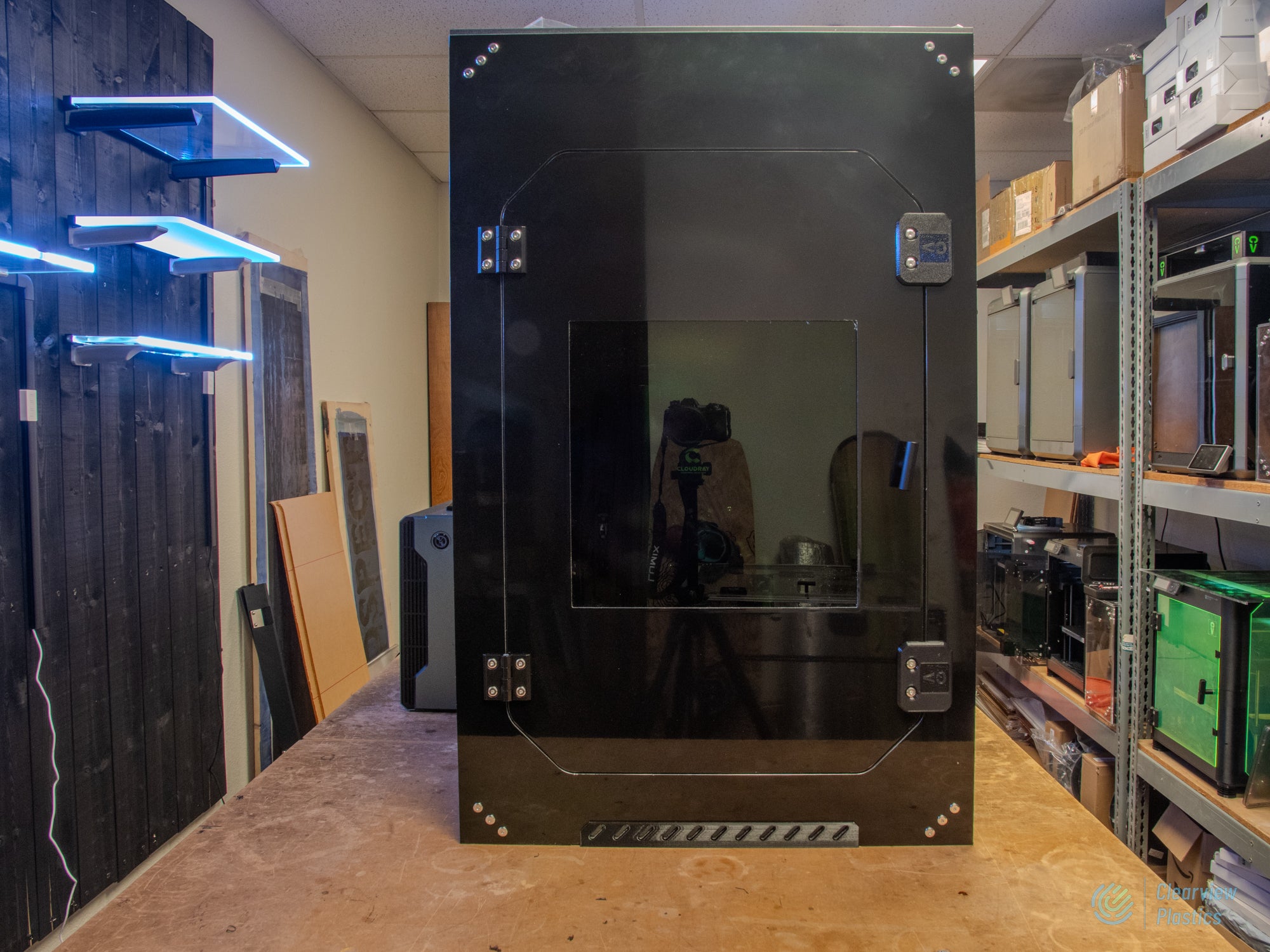

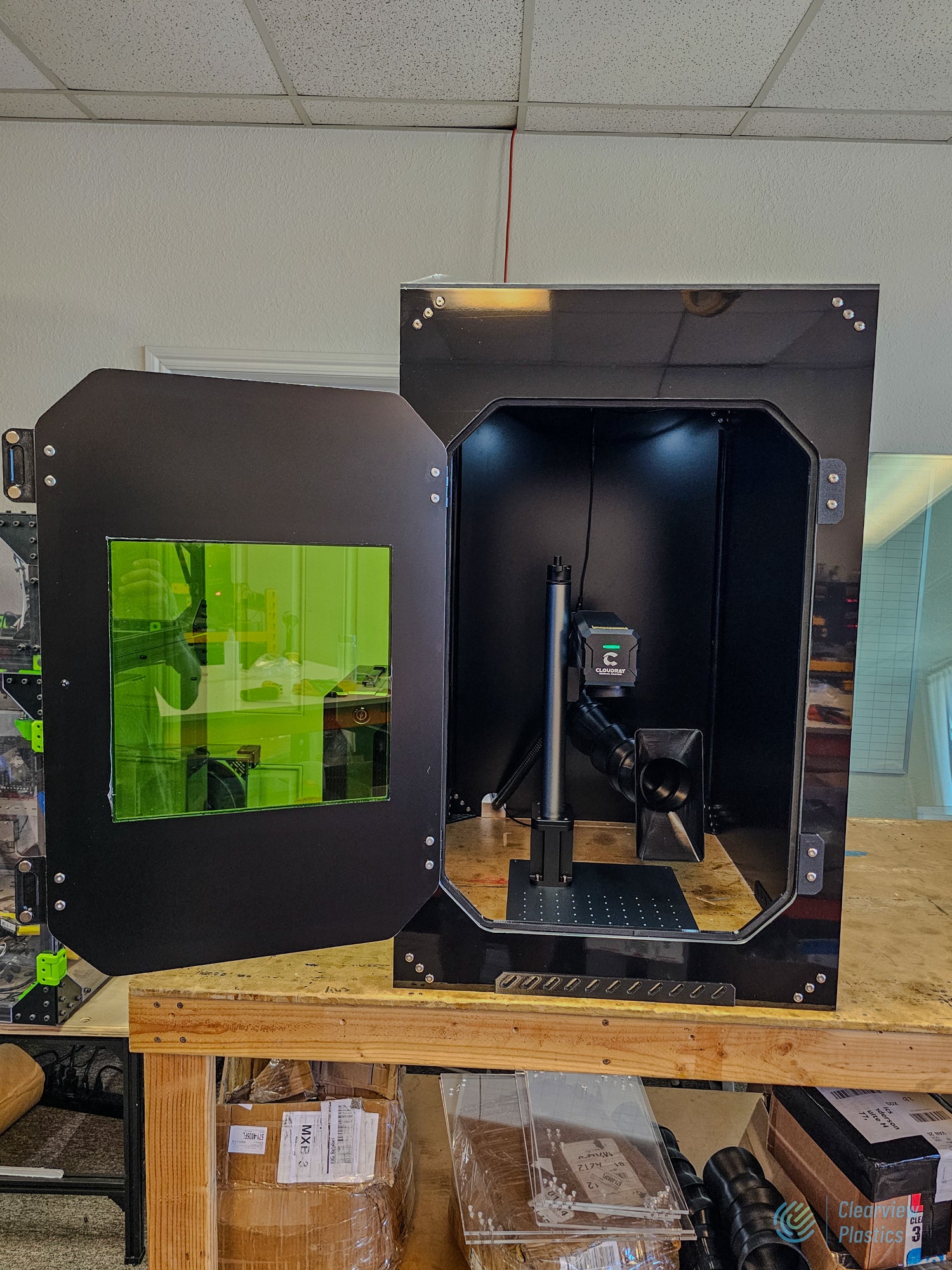

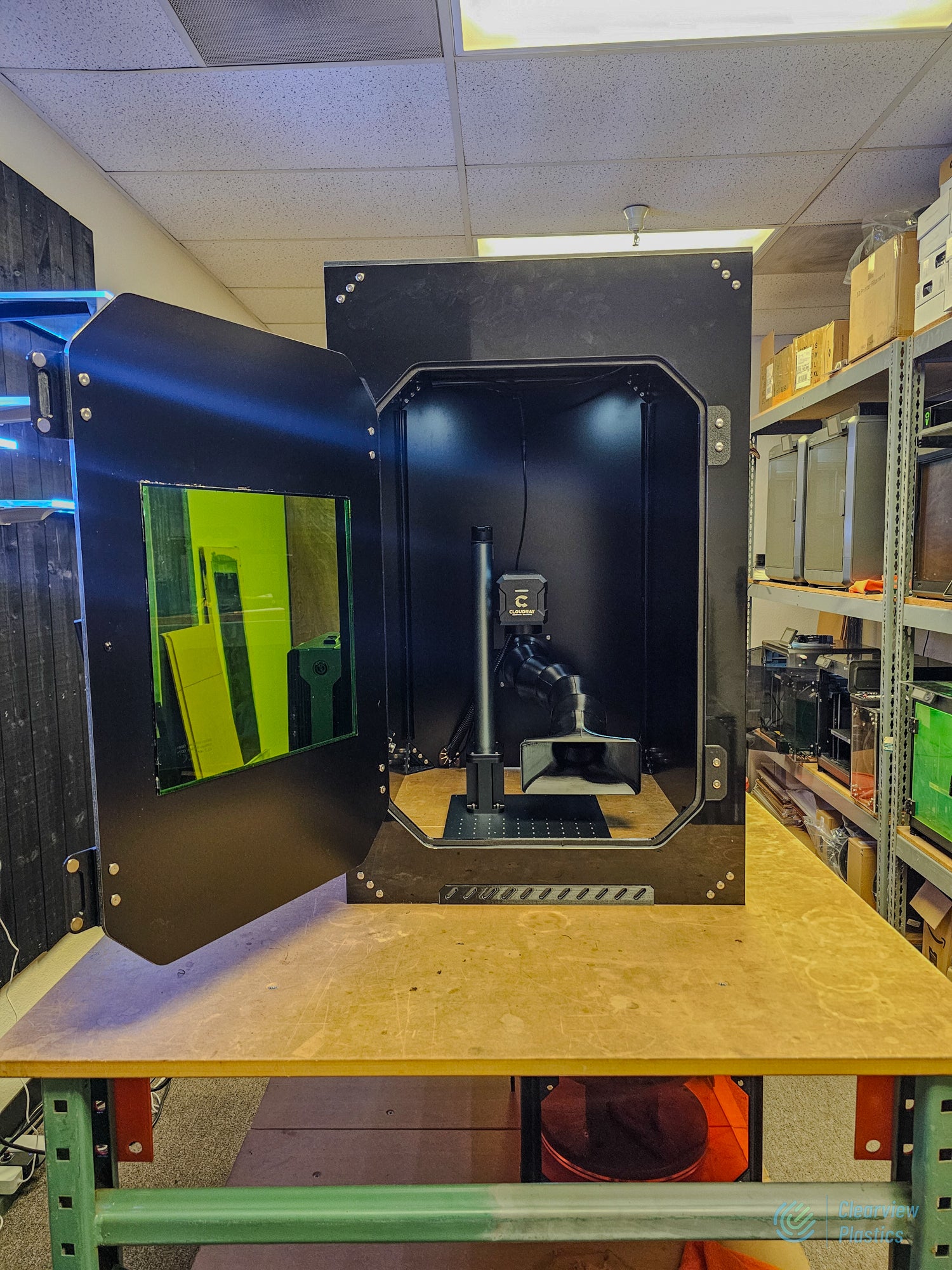

Each enclosure carries an 11 × 11" OD6+ laser-safety viewing window, matched to your wavelength: OD6+ for 1064 nm fiber and MOPA markers, or OD6+ for 355 nm UV markers.
Medium 15.75 × 23.75 × 27.5" · Large 18 × 29.5 × 30.5" · XL 21.5 × 29.5 × 34" · XL+ 21.5 × 29.5 × 38.25". Size to your machine, or size up to the media you're marking. With two optional side doors the enclosure opens on both sides as a pass-through for long or oversized stock.

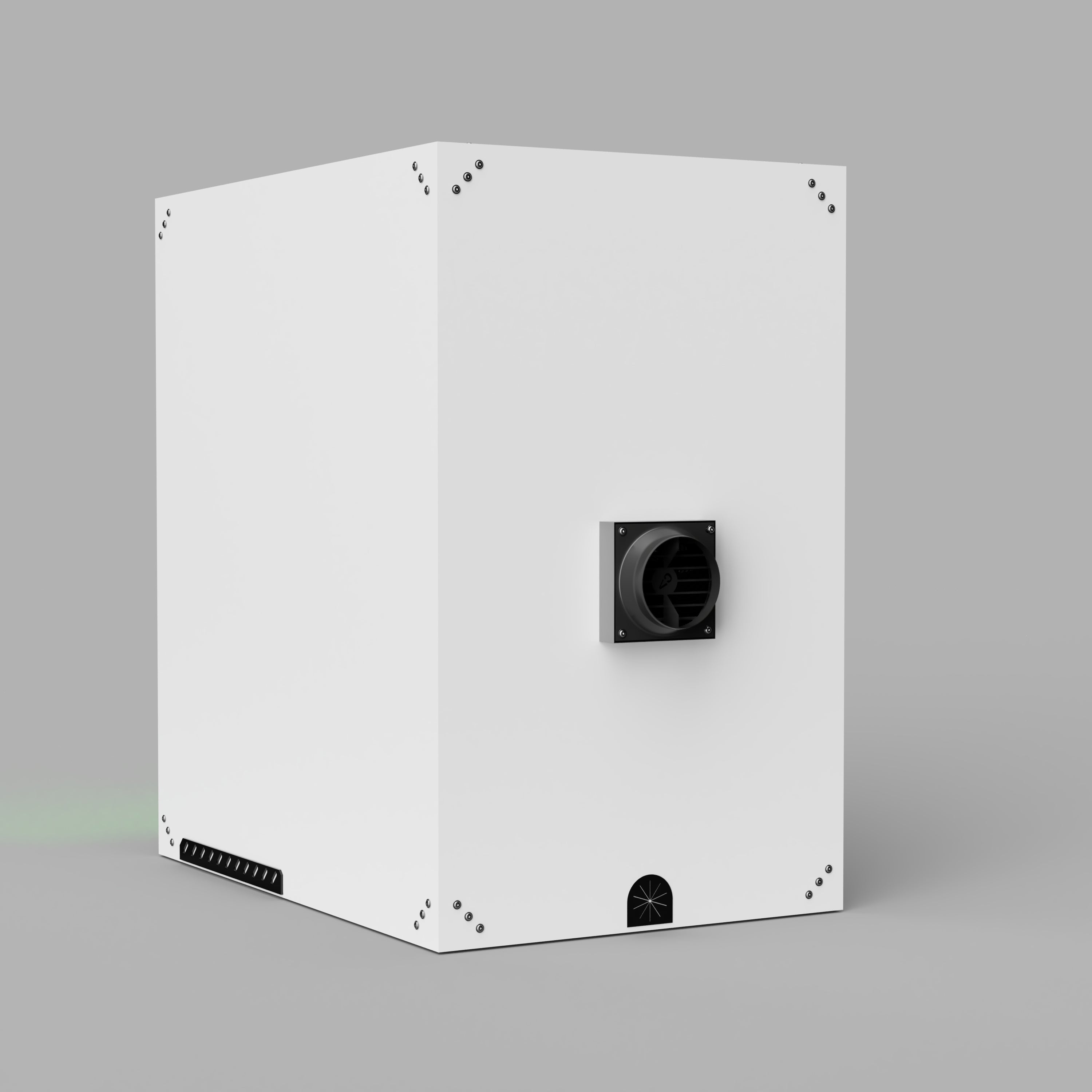

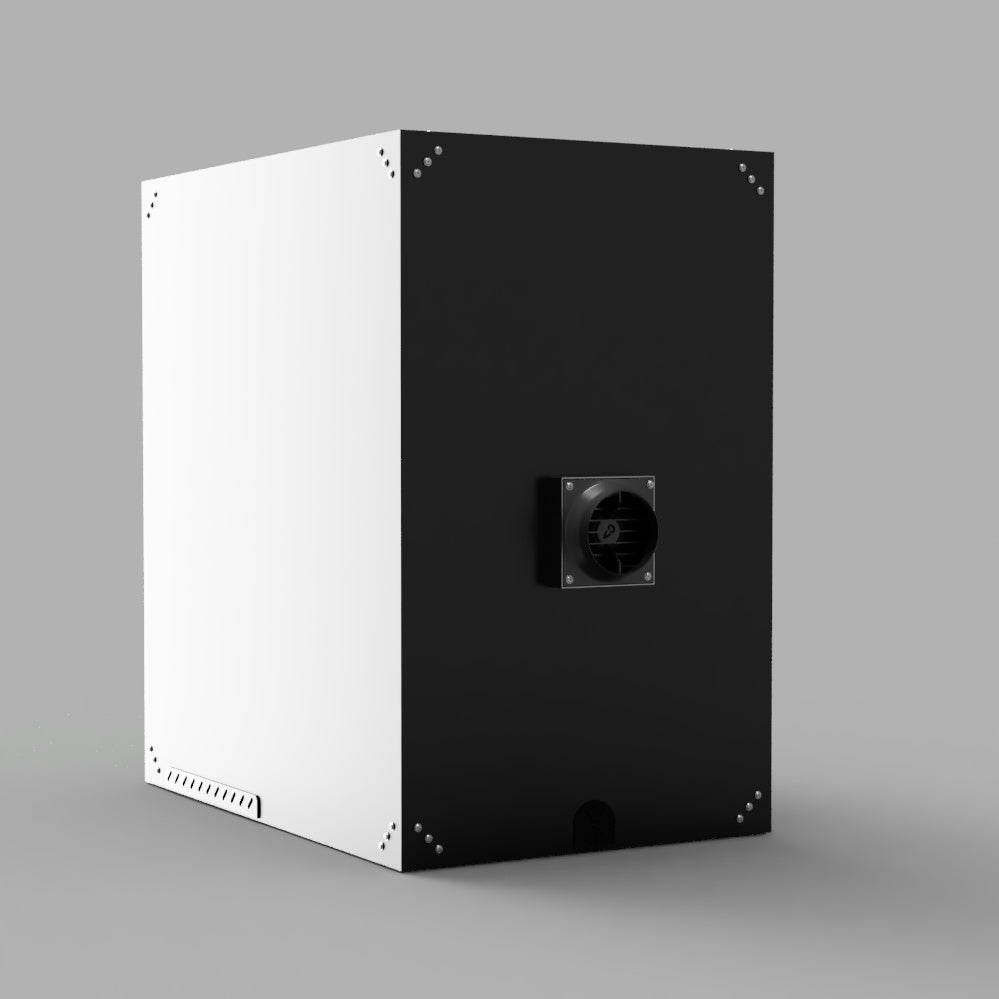

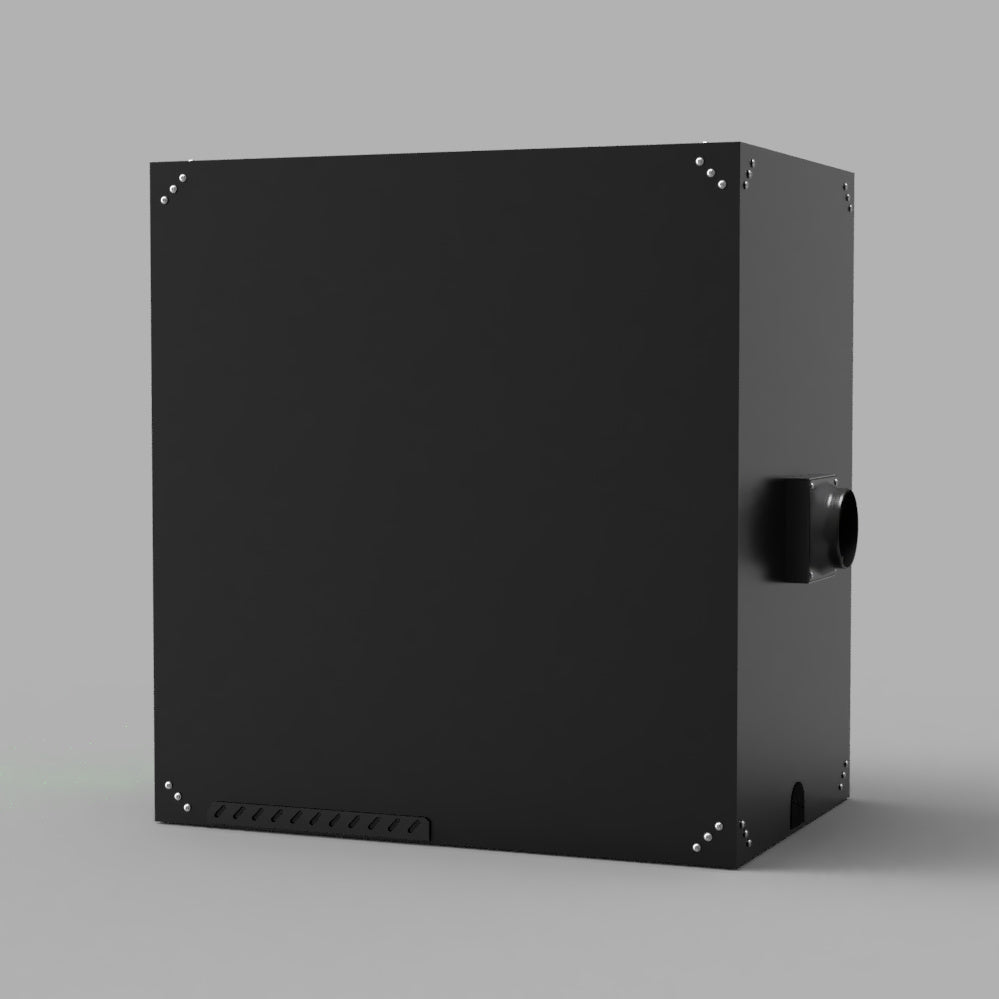

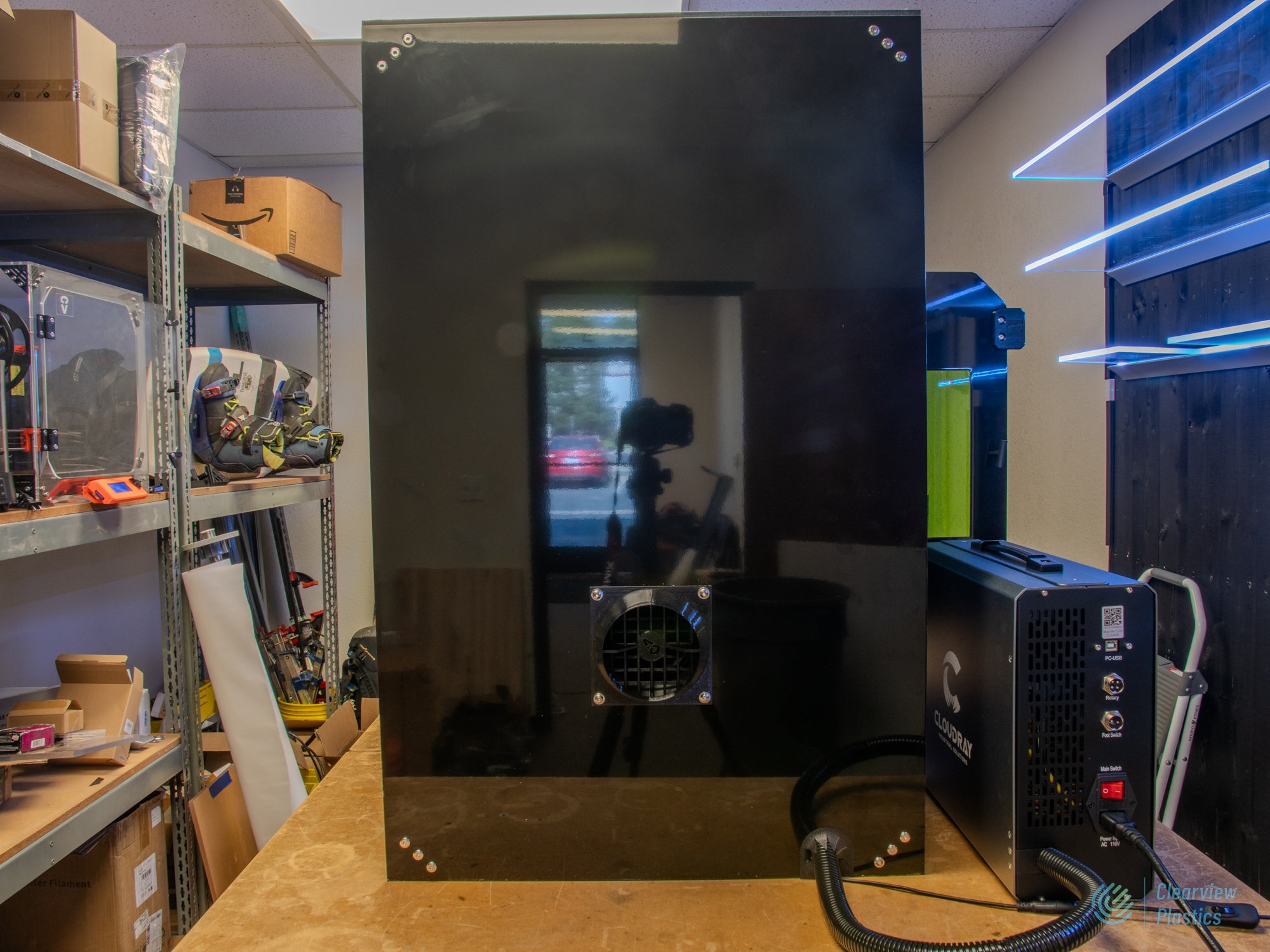

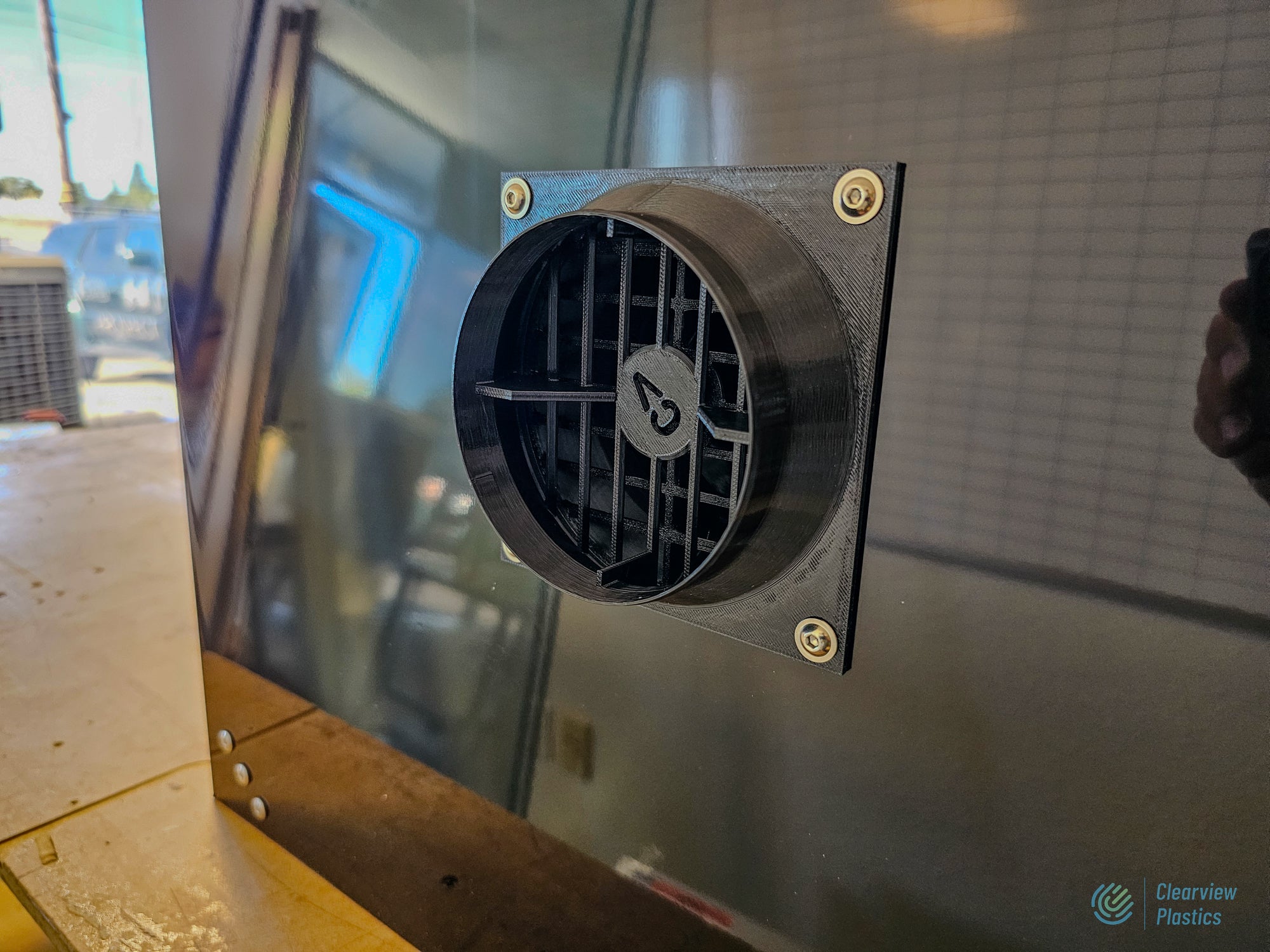

A 4" exhaust adapter on the rear panel slips a 4" hose with a clamp so you can vent outdoors, with an optional 95 CFM or 200 CFM fan or the window exhaust kit. Where venting outside isn't an option, the Donaldson AD350 is industrial-grade filtration for fume and particulate generated by laser marking. Slide flow-control vents on the front and sides balance the airflow through the chamber.
This enclosure carries OD6+ laser viewing windows and contains the beam, the glare, and the fumes. It does not change your laser's class. It is not certified to reclassify a Class 4 laser to Class 1, and it is not certified to ANSI Z136.1. Wear OD-rated safety glasses for your wavelength and follow Class 4 protocols. If you need a certified Class 1 solution, contact us about the WorkSafe line.
Manufactured and kitted at our workshop in California. Lead time is 10 business days or less for standard enclosures. One-year warranty against manufacturer defects, and a 30-day return policy on unused, undamaged panels with the protective masking still attached. The 3D-printed brackets ship as STL files so you can reprint any part later, or add pre-printed parts to the order. Optional add-ons include HD metal hardware, a LightBurn hood camera, a two-wire magnetic door sensor, and delivered-assembled shipping.
The UV / Fiber Galvo Laser Marker Enclosure by Clearview Plastics is our heavy-duty, industrial-grade enclosure for desktop galvo laser markers — the fast fiber, MOPA, and UV machines used for permanent marking on metal and plastics. Built from 1/4" aluminum composite panels with a genuine laser-safety viewing window rated well above our standard OD3, it contains the beam, the glare, and the fumes at the same time. Choose the OD6+ window for a 1064 nm fiber / MOPA laser or the OD6+ window for a 355 nm UV laser.

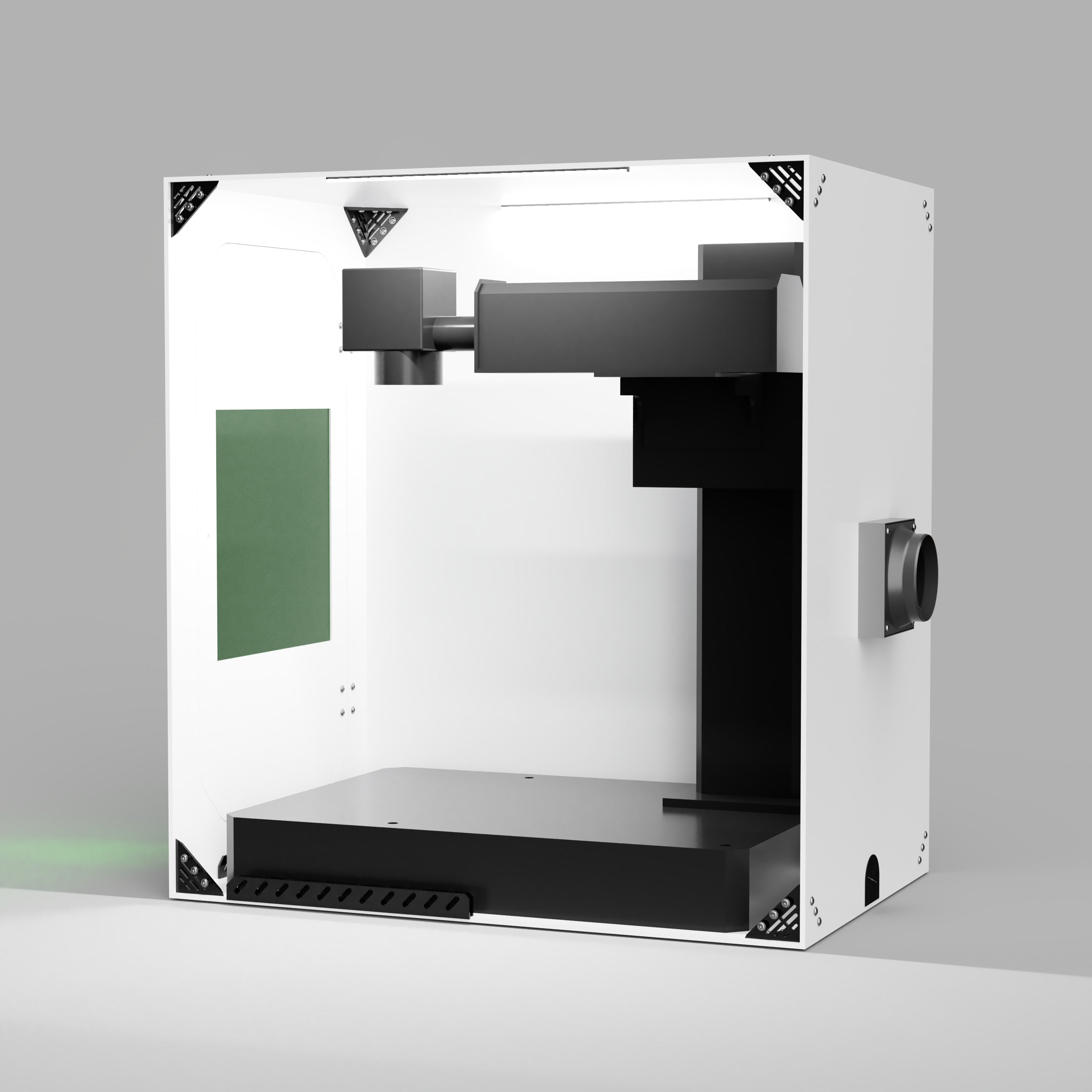

This is a "set-over" enclosure that drops over your marker and its controller, offered in multiple sizes so you can match your machine — or size up to the media you're marking. It assembles in 60 to 120 minutes with a screwdriver and hex wrench, and can be configured with the doors, sealing, door sensor, and filtration a professional shop needs (see "Configure your enclosure" below).
This enclosure is made to fit the popular desktop galvo markers, including:
Not sure on sizing? Send us your machine and the media you mark and we'll point you to the right size.
Unlike a hobby box, this enclosure is built for genuine beam containment. Galvo markers are Class 4 lasers: fiber at 1064 nm is an invisible infrared beam that reflects off the very metal you're marking, and UV at 355 nm is hazardous to eyes and skin.
Build the enclosure to your shop with the options in the product configurator above:

Neil Henderson here, owner and head designer at Clearview Plastics. My shop is a California-based artisan design studio, and we build every enclosure in-house. Our panels are professionally CNC-cut for accuracy, with parts designed specifically for each machine we support — this isn't a generic box off a marketplace. When you order through us, you work directly with me, and that relationship comes with my genuine appreciation and skilled, personal help.
Which window do I choose — green or amber?

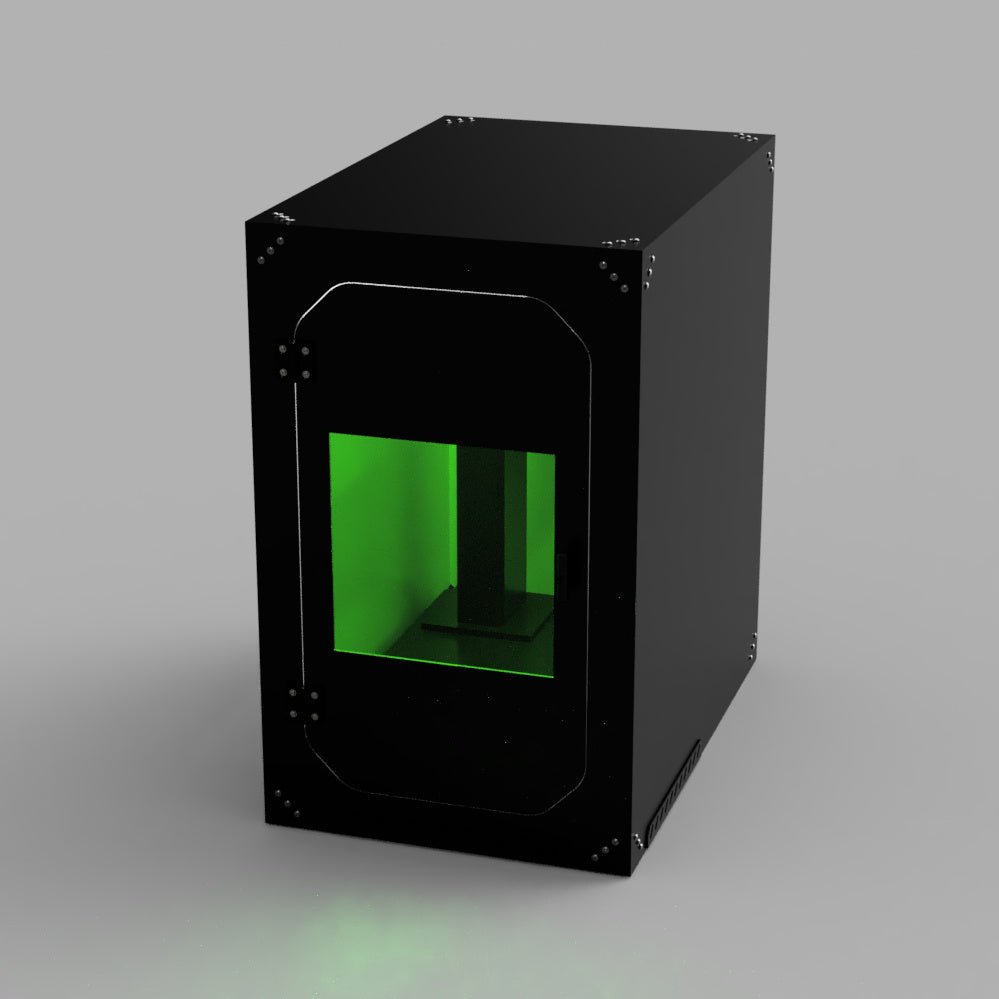

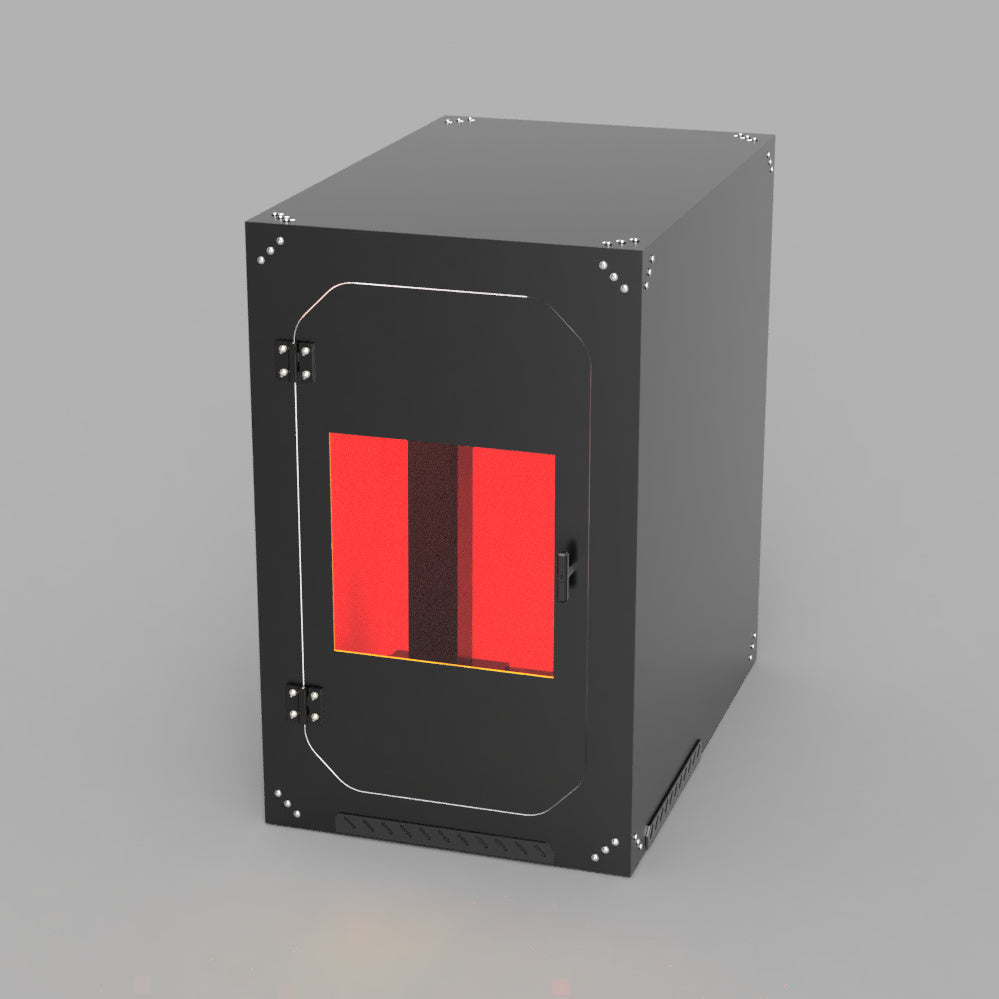

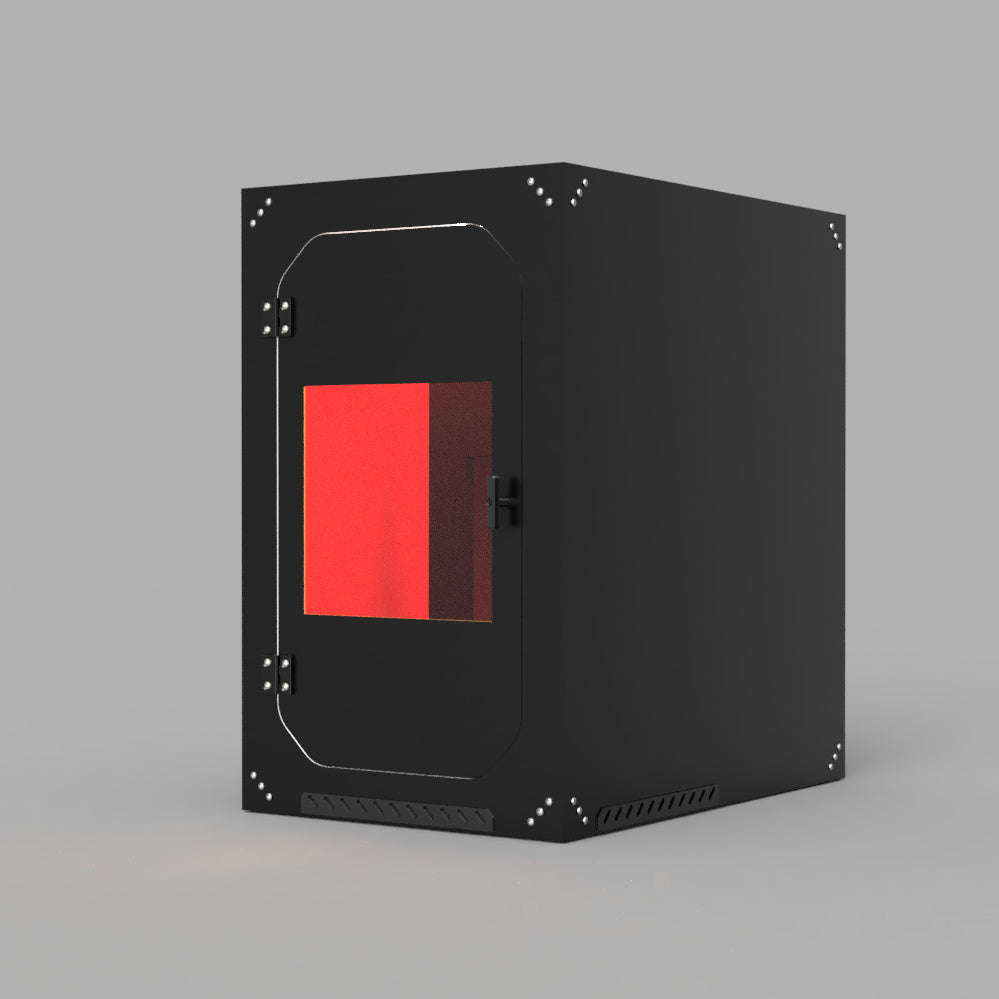

Both are rated OD6+ and both are transparent. Pick green for a 1064 nm fiber or MOPA marker, and amber for a 355 nm UV marker. The window is matched to your laser's wavelength so you can watch the job while the beam stays contained.
Does this reclassify my Class 4 laser to Class 1?
No. This enclosure contains the beam, glare, and fumes and dramatically reduces stray-light exposure, but it is not certified to reclassify your laser or to meet ANSI standards. Always wear OD-rated safety glasses for your wavelength and follow Class 4 protocols. If you need a Class 1 compliant solution, contact us about our Worksafe enclosure.
What are the exhaust and filtration options?
A 4" exhaust adapter is included to vent outside via a flexible hose. Add a 95 CFM or 200 CFM fan or our window exhaust kit, or step up to the Donaldson BOFA AD 350 fume extractor for indoor operation: up to 223 CFM with pre-filter, HEPA and activated carbon stages, per the manufacturer. A segmented exhaust arm takes the fume at the mark.
Can it act as a pass-through for long or oversized media?
Yes. Add the optional side doors — with two side doors, the enclosure opens on both sides so you can pass long or large stock straight through. A top door is available on Large and up for tall parts and overhead loading.
Is there a table made for it?
Yes. The UV / Fiber Galvo Laser Enclosure Table comes as a standard table (23.5 × 31.5" top) or a double-width complete workstation (46 × 31.5" top) with room for the filter unit or a computer beside the enclosure.
Can I get it assembled?
Yes. Choose the delivered-assembled option and it ships built and ready to use instead of flat-packed. You can also add a two-wire magnetic door sensor and extra seam sealing.
What is your return policy?
We offer a 30-day return policy. Unused, undamaged panels with the masking fully attached are eligible for a full refund less return shipping. If panels are damaged after shipment or the protective mask has been removed, we can't offer a refund.
This enclosure is offered in multiple sizes to match your marker and media, so size your table to the configuration you order.
